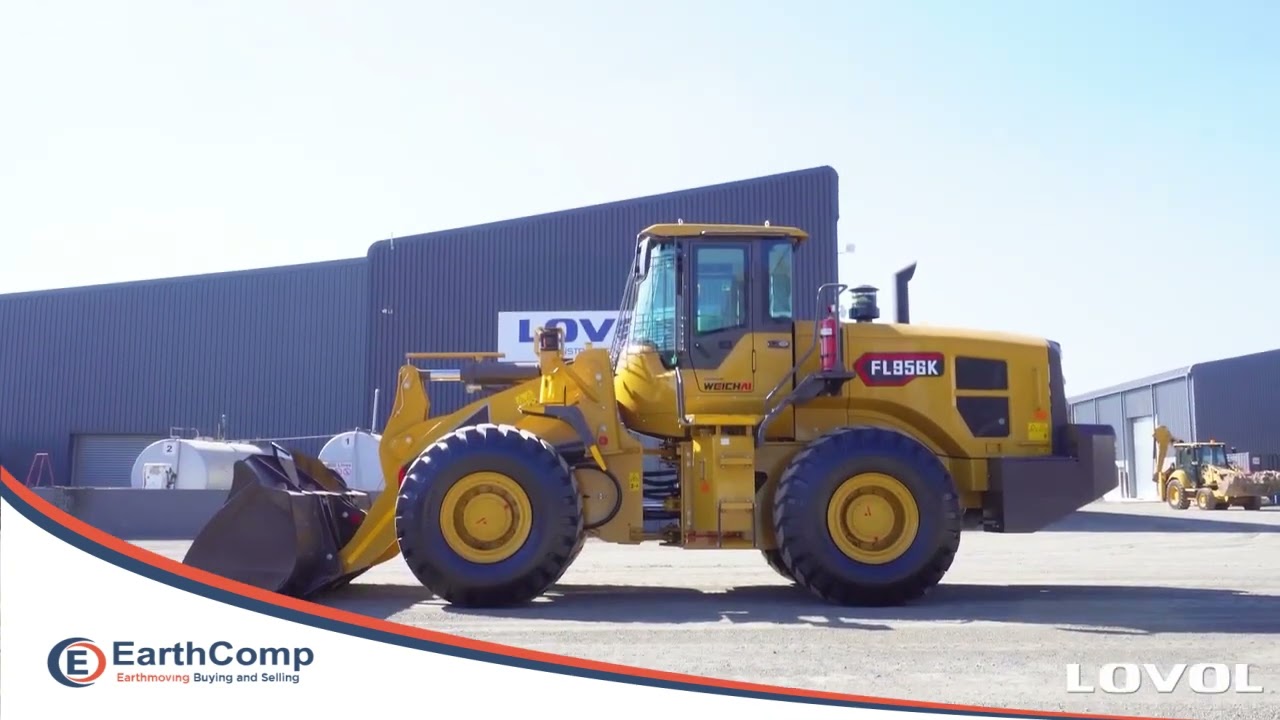

LOVOL - FL956K

Описание: LOVOL FL956K Wheel Loader Specifications:

Main Specifications:

Rated Load: 5000kg

Operating Weight: 17,450kg

Rated Bucket Capacity: 3.0m³

Maximum Breakout Force: 16,310kg

B-Pin Height: 4190mm

Maximum Dump Height: 3140mm

Dump Reach: 1090mm

Maximum Grade Ability: 30°

Maximum Turning Radius: 6270mm

Dimensions (LxWxH): 8440x2980x3420mm

Engine:

Model: Weichai WD10G220E23

Type: 6-Cylinder, In-Line, Turbocharged, Direct Injection, Water-Cooled

Power: 162kW / 2200RPM

Max Torque: 980Nm

Bore & Stroke: 126x130mm

Displacement: 9.726L

Alternator: 28V / 55A

Starting Motor: 24V / 7500W

Fuel Consumption: 14–18 L/Hour

Transmission:

Make: Lovol

Forward Speeds: 16km/h, 42km/h

Reverse Speed: 17.5km/h

Torque Converter:

Make: Lovol

Type: Single Stage, Two-Phase, Four Elements

Cooling System: Oil-Cooled

Torque Ratio: 4

Brake System:

Service Brakes: 4 Wheels, Caliper Disk Brakes

Parking/Emergency Brakes: Drum Brakes

Axle System:

Axle System: Lovol

Front Axle Model: Lovol

Rear Axle Model: Lovol

Rear Axle Oscillation: 11°

Tyre Type: 23.5–25 / L3 Tube

Hydraulics & Steering:

Frame Type: Articulated Frame

Steering Type: Hydraulic Steering

Steering Pressure: 16MPA

Work System Pressure: 18MPA

Hydraulic Cycle Time:

Lifting Cylinder: 5.7s

Lowering: 3.7s

Dumping: 1.2s

Service Refill Capacities:

Cooling System: 55L

Fuel Tank: 280L

Engine Oil: 22L

Front Axle: 32L

Rear Axle: 26L

Torque Converter & Transmission: 36L

Hydraulic Tank: 200L

Brake Fluid: 4L
