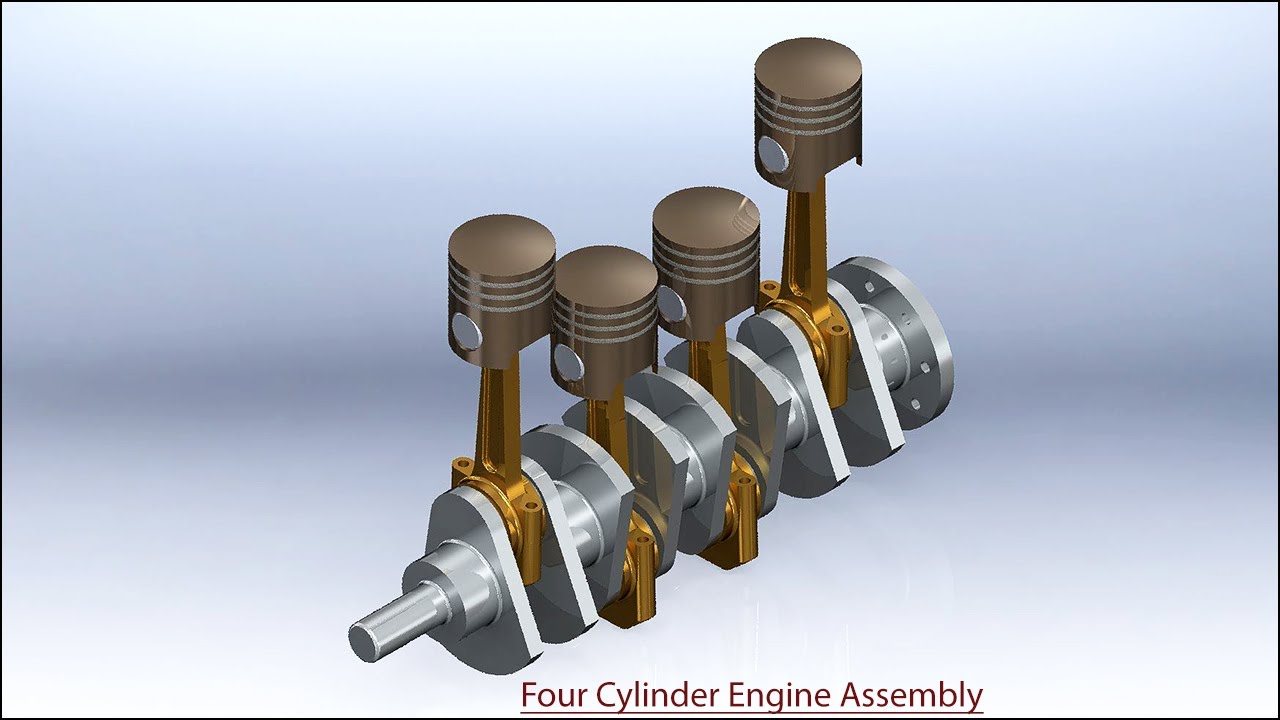

Four Cylinder Engine Assembly || SolidWorks Tutorial

Описание: Dear Viewers, Today we will design 'Four-Cylinder Engine Assembly' in SolidWorks 2017. This Assembly tutorial covers topics from Solidworks Basics like 2-D sketching and part modeling. The model contains 6 parts like a Crankshaft, Connecting Rod, Piston, etc., and 1 Assembly. First, we create the Crankshaft then later each component is created individually with no relation to each other which you can term the Bottom-up designing process. In this process, the first parts are designed individually, and afterward, all parts are inserted into the assembly by using the assembly constraints. When the parts have been modified the changes also appear in the assembly.
This Video will cover:-
1. Create basic 2D sketches on different work planes like Front, Top, and Right with the help of Line, Circle, Rectangle, 3 Point Arc, Centre point slot tools, etc.
2. Create a solid feature by using the Extrude Boss/Base, Extruded Cut, Revolve Boss/Base, Revolve Cut, Fillet, Mirror Feature, and Chamfer commands.
3. Place the part in Assembly by using the Insert Components command.
4. Use the 'Mate' command to position two components relative to one another by using such as Coincident, Concentric, mates, etc.
5. The most powerful tool is in the assembly which name is the ‘Copy with Mate’ command. This is a time-saving tool.
6. After completing this video we will display the animation of this model in the ‘Motion Study’ Environment.
Hope all of you enjoyed the tutorial.
................................................................................................................................................
