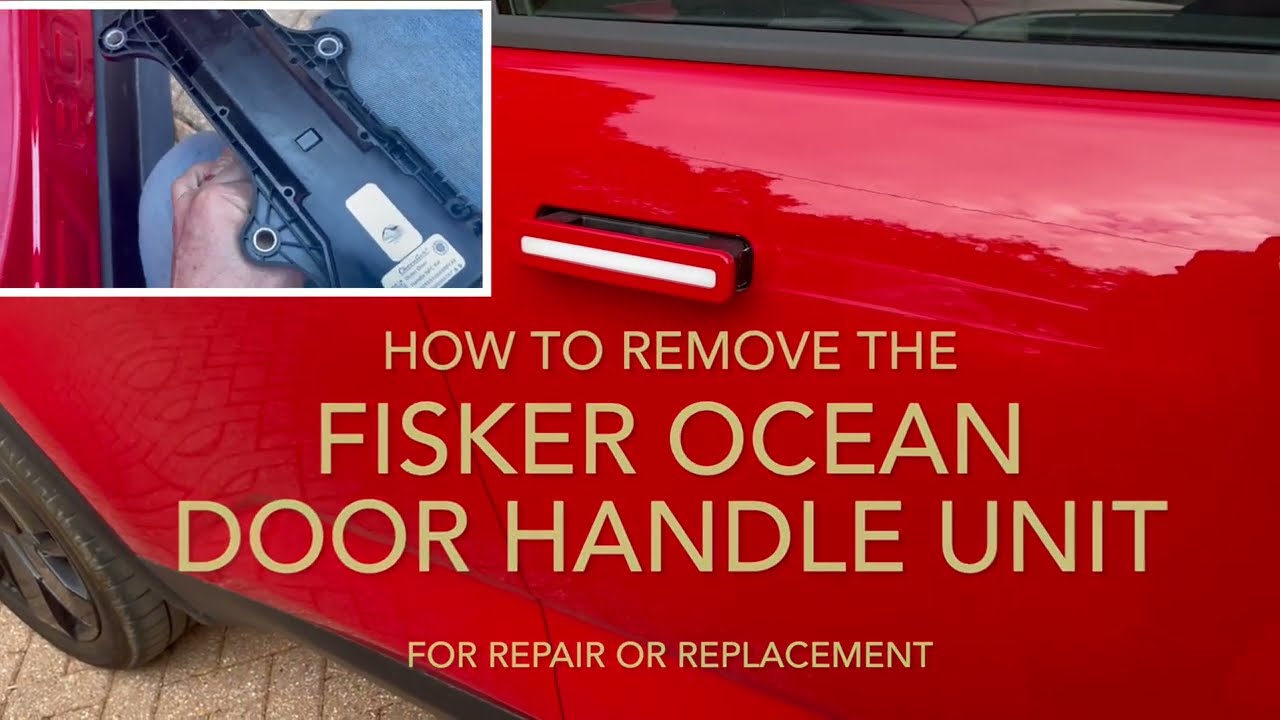

Removing the Door Handle unit - Fisker Ocean +Electronics clean up

Описание: Shows the steps to take off the inner door card, remove the door glass and then remove the door handle unit, for replacement or fixing on the FISKER OCEAN. The electronics box of the unit is then dismantled and some water contamination cleaned up. The NFC reader electronics is got to from outside as it is in the handle part that opens. See the next video, now out, see below, about that and how it was possible (but difficult) to fix the water damage that was stopping the NFC reader working, with it shown working at the end. Test the handle off the car and lubricate the moving parts with grease while it is apart.

So here are most of the tools I used, from Amazon or eBay at the best prices and availability as I write this. Using these links will not cost you any more than going there without using these, but it does earn me some few coins and saves you a bit of time.

Amazon trim removal tool set: https://amzn.to/3YA6VnF
Torx bits sets: Amazon UK: https://amzn.to/2Pgmf48
Or Amazon USA & others: https://amzn.to/2XlOK3h

Other useful items for the Fisker Ocean:
Dog guard that fits the Ocean: https://amzn.to/4ikbIkh
Car boot protector, with bumper and side protection: https://amzn.to/3RishSv
A 20A Smart 12V battery charger, well made: https://amzn.to/4jtyoA5
A 12V quick battery isolator: ebay UK: https://ebay.us/ud0LOe eBay USA: https://ebay.us/KRMNVm
A bluetooth 12V battery monitor (very useful): https://amzn.to/3YyIOWm
PPF film (Paint Protection Film) for covering handles: Amazon: https://amzn.to/43aHcEY
Jacking pucks (Just need to grind down the top nipple to make narrower) https://amzn.to/3YLyDgN
RainX spray to keep rain and dirt off your cameras, in order to minimise ADAS warnings
Plus RainX screen wash to do the same as above: https://amzn.to/497cxu2
A bluetooth shunt monitor (of current, voltage, accurate SOC on your 12V): https://amzn.to/4p9RWvk
Battery cabling and connectors for use with above: https://amzn.to/3Y3U8t8

As an Amazon and eBay Associate, I earn from qualifying purchases.

Chapters to aid skipping to the bit you want:
00:39 Start removing the inner door fittings.
03:29 Pull off the door card after all bolts are removed.
04:07 Remove connections to the door.
05:50 Peel off the foam cover.
06:40 Remove the inner and outer window seals.
07:10 Lower and line up and remove the glass.
08:30 Remove the 3 bolts holding the handle and remove the handle.
09:50 Unplug the unit.
10:10 Dismantling the handle unit - mostly to get to the electronics.
12:00 Cleaning up water corrosion damage.
19:00 Reassembling notes - waterproofing.
20:30 Check and adjust the gear cog alignment to get a good open/close position.

Here is the next video on fixing the NFC reader electronics in the door handle, tricky but can be done:    • DOOR NFC Reader FIXED on FISKER OCEAN! - A...
