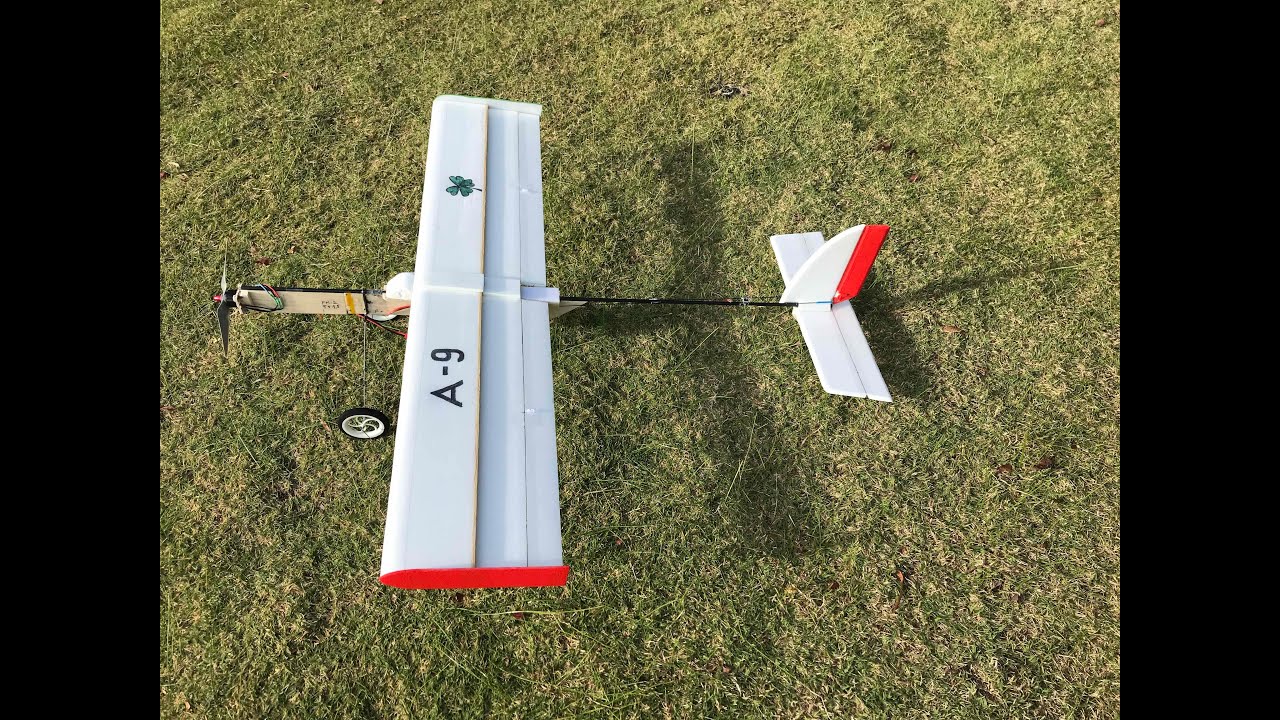

Scratch built RC basic trainer airplane
Автор: John55OZ
Загружено: 2022-09-23
Просмотров: 368
Описание:
I have learnt to fly RC model airplanes on my Kmart/Lidl converted toy gliders to RC airplanes.
As a next step I decided to design and build my own RC trainer airplane. Task is to make it bit bigger 83 cm wing span, simple stick type fuselage and depron KFm2 wing. Material used is depron foam, CF 5mm tube, balsa wood and piano wire for the landing gear. During design phase I used Andy Lennon book ‘basics of RC model aircraft design’. Plane should be around 18 g/ dm2 wing loading, so it can fly reasonably slow if needed. And bingo! the plane is complete success. It is very docile and stable and can perform all basic aerobatics for newbies like me.When I grow up I am going to build faster one ha ha !
Basic data:
Wing span 83 cm, dihedral 3 degrees, incidence 3 degrees.
Take off weight 250 g
Motor Emax 2280 kv 80 W
Propeller APC 7x4 SF
Battery 2S 850 mAh
ESC Dualsky 10A
Receiver orange 6 channels
Video recorded by GoPro 9 camera on my hat.
There is more RC aircraft videos @ John 55 channel
