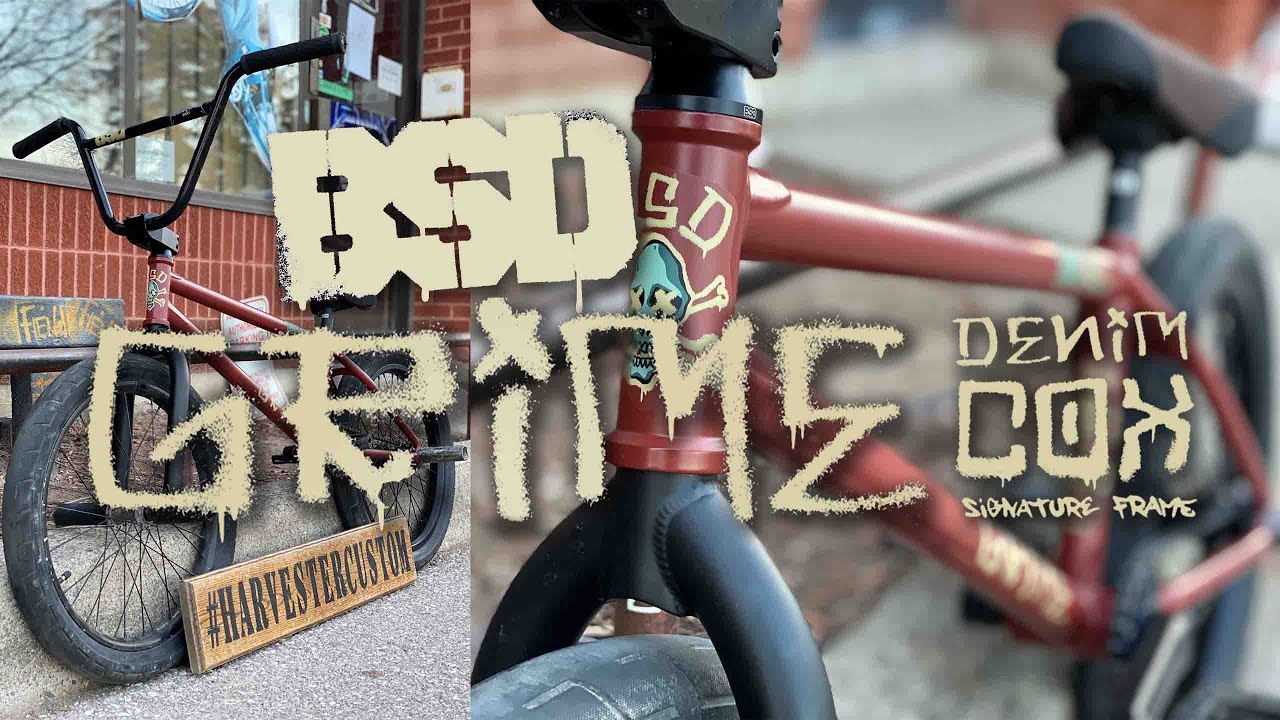

BSD GRIME "DENIM COX" SIGNATURE FRAME BUILD @ HARVESTER BIKES

Описание: The Grime frame is the latest frame from BSD, built for the young shredder from Huntington Beach, Denim Cox. Whether he's riding motocross, Barbie bikes or BMX, you know Denim tears it up on all terrain.

Designed to Denim’s specification, with a steep 75.5 headangle, a 12.8 - 13.2” rear end length with an invest cast chainstay yoke for extra tire clearance and a 9” standover...
TECH SPECS
Toptube lengths 20.6" / 20.8" / 21" / 21.2"
Headtube angle 75.5°
Headtube length 117mm
Seattube angle 71°
Rear end length 12.8-13.2"
BB Height 11.7”
Standover height 9"
Weight 5lbs
Brake mounts none - brakeless
Tubing Sanko Japanese seamless 4130 CrMo / triple butted
Headtube Heat treated 4130 CrMo / CNC / Offset thickness
Bottom Bracket Heat treated 4130 CrMo / CNC machined
Chainstay Yoke Heat treated 4130 CrMo / Invest cast
Dropouts Heat treated 4130 CrMo / Invest cast
Seatclamp Heat treated 4130 CrMo / Invest cast
Colours TRANS BLACK / DIRTBAG BLUE / RUSTED RED
INVEST CAST YOKE
The Grime frame has an invest cast chainstay yoke which creates more clearance for the tire for when your wheel is slammed. Also because this part is cast and heat treated it strengthens the rear end of the frame by stiffening it up.


INVEST CAST DROPOUTS
The dropout is cast as one piece, much stronger than a plate welded to a tube. 7mm thick to provide good support for your axle, and the small shape has been designed for grinding meaning there's no overhang to catch on ledges or rails, also the dropout is heat treated before welding making it extra tough. And finally there are integrated chain tensioner bolts inside.


INVEST CAST SEATCLAMP
The invest cast seatclamp is brazed onto the frame so there's no need for a separate clamp. Also the slot cut beneath the seatclamp gives more clamping power less torque on the bolt. Note the new seatstay bridge too.
