Sliding cantilever gate
Автор: thang010146
Загружено: 2022-08-24
Просмотров: 29029
Описание:

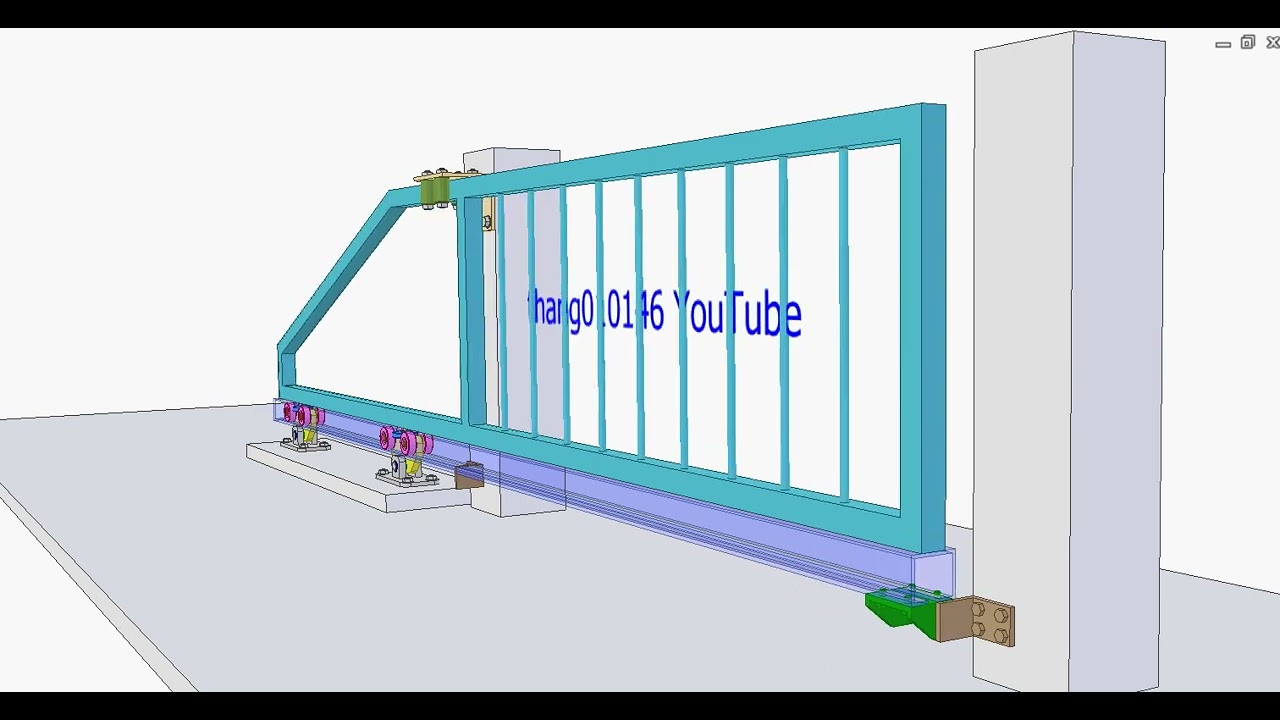

The gate is supported by two yellow swivel brackets, each with four pink rollers. Such an arrangement ensures that all four rollers are always in contact with the blue sliding bar fixed to the gate.
The blue rollers of the brackets guide the sliding bar in the horizontal plane.
Green and brown stoppers restrict the movement of the gate.
This animation was made based on the video:
• Cantilever XL IT COMUNELLO Gate Divi...
If the gate is wide, some guide devices are added. See:
• Hi-Motions: Cantilever sliding gate system
STEP files of this video:
https://www.mediafire.com/file/dpox7b...
Inventor files of this video:
https://www.mediafire.com/file/eocinp...
