TUTORIAL : BIG BAG EMPTYING STATION

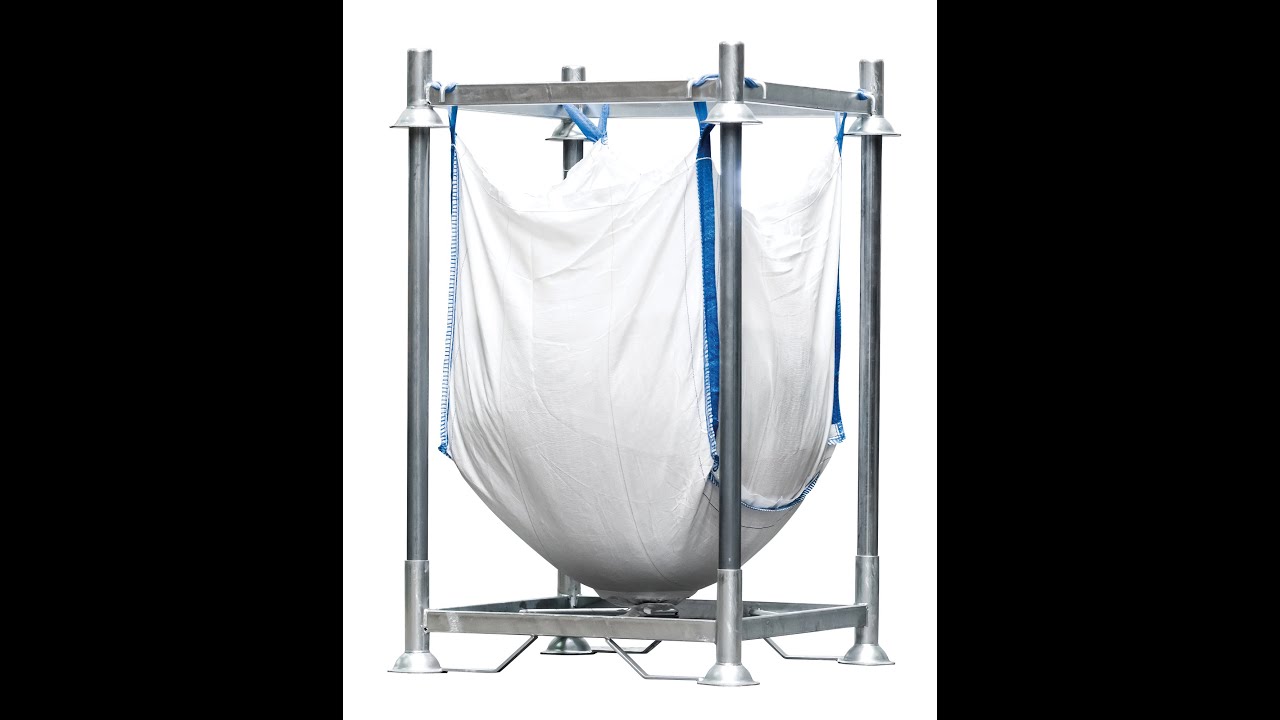

Photos of a Big Bag emptying station
Station de vidange à vanne guillotine, vanne semence, vanne clapet, vanne diphragme, etc.
Components of a Big Bag emptying station
A Big Bag emptying station is composed of 1 valve, 1 frame, 1 base and 8 tubes
Assembly of a Big Bag emptying station
1. Position the frame over the Big Bag
2. Put the loops over the hooks
3. Lift the frame using handling equipment
4. Position the frame on the tubes
5. Place a container under the discharge system
6. Position the Manubag on the Big Bag emptying station
7. Untie the Big Bag discharge spout having passed it through the valve
8. Empty the Big Bag by opening the diaphragm valve
9. Close the diaphragm valve (e.g.: slide valve opening)
Size of transport of a Big Bag emptying station
ManuLine, the standard and tailor-made intralogistics solution to optimise bulk handling
• Big Bag
• Manubag
• Big Bag emptying station
• Filling station for Big Bags
• Manurack
• Maxibag
The ManuLine Team
