FNIRSI HRM-10 Battery Voltage Internal Resistance Tester Lithium Lead Car Battery Capacitor Tester
Автор: Sophie Chang
Загружено: 2024-06-12
Просмотров: 1498
Описание:
FNIRSI "HRM-10" is our company's first handheld high-precision attery internal resistance meter. It is a true four-wire measurement internal resistance
meter, designed with precision, convenient to carry. The device can automatically test internal resistance and voltage values simultaneously, with measurement results displayed on the screen. Users can also manually adjust the voltage and resistance range. The product features a sorting mode, automatically filtering the good and bad batteries based on user-set thresholds. It also supports historical records and exporting data tables of historical measurements.
Voltage measuring range：0 — ±100V（DC）
Voltage gear：Automatic, 1V, 10V, 100V
Resistance measuring range：0 — 200Ω
Resistance gear：Automatic, 20mΩ, 200mΩ, 2Ω, 20Ω, 200Ω
Accuracy：±0.5%
Instrument test signal frequency：AC 1Khz
Rechargeable：Type-C interface (5V/1A)
Built-in battery：1000mAh lithium battery
User calibration：Support

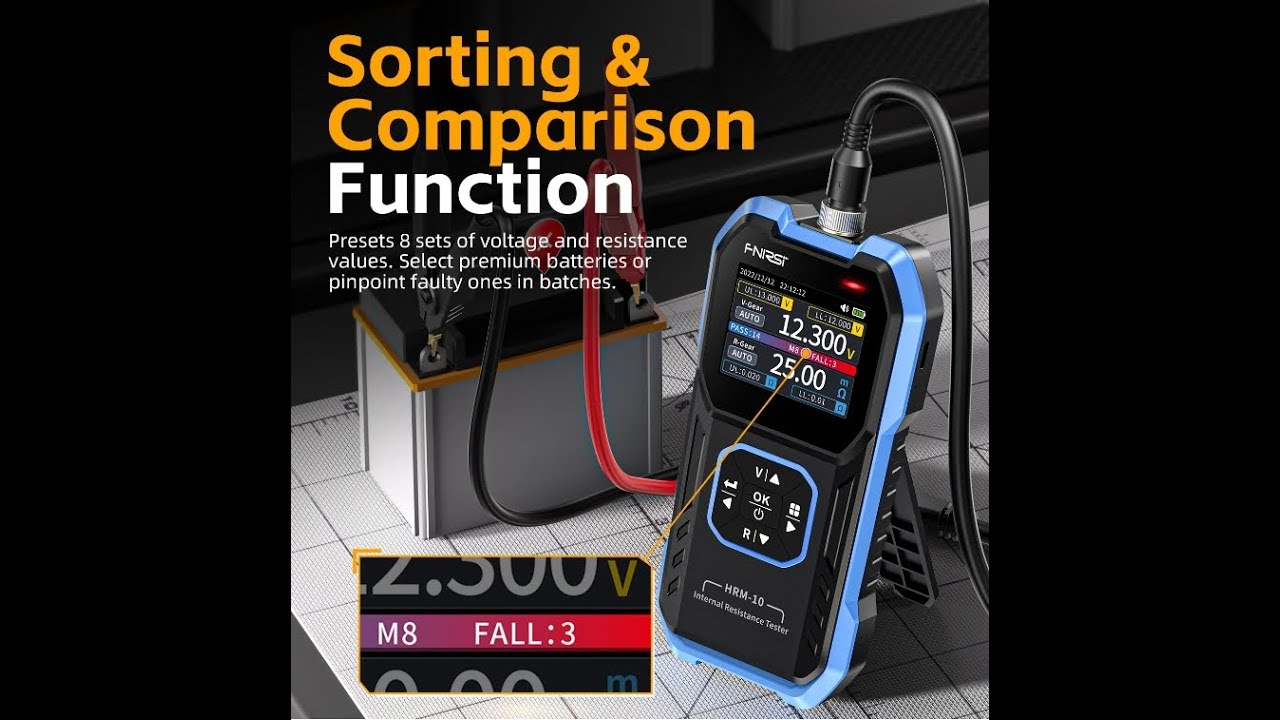

Sorting mode：Support
History recoed：Support
Recorded data export：Support
