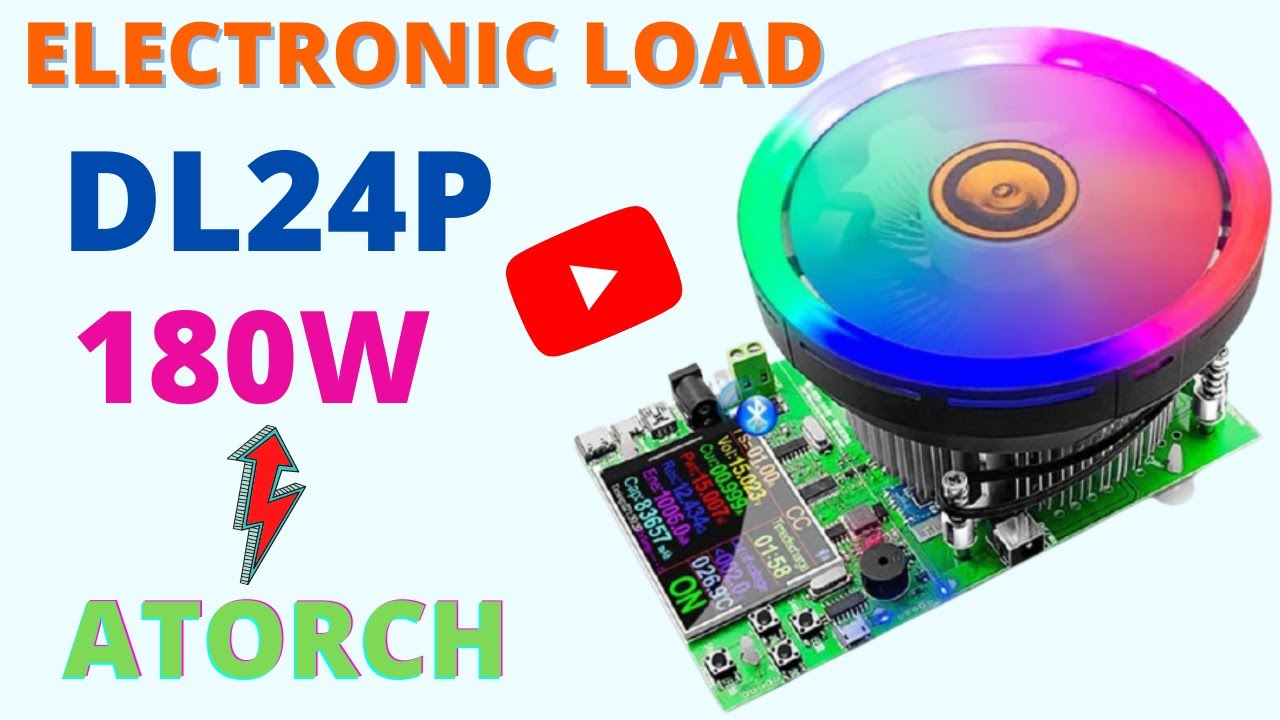

Unboxing and Reviewing of 180W DL24P 2.4 Inch LCD DC USB Tester Electronic Load UPDATED 2021

Описание: Unboxing and Reviewing of 180W DL24P 2.4 Inch LCD DC USB Tester Electronic Load APP Battery Capacity Discharge Charge Power Meter TESTER

Features:
Compatible with four major online APPs (Android, Apple, PC all-pass kill) Simultaneously compatible with four major discharge modes (constant current, constant power, constant resistance, and constant voltage full coverage) At the same time compatible with both Bluetooth wireless and wired connection The high-power and large-discharge tube discharge test summarizes hundreds of large-scale instrumentation circuit principles and evolutionary extractions. All the major advantages are integrated into one screen. The discharge aging screen displays a variety of parameters. The test is convenient, fast, and powerful! Playtest diversification! With an external wired NTC temperature probe to achieve internal and external dual temperature measurement, suitable for more occasions! Three intelligent safety protections, real-time monitoring of the status of the discharge tube, safe and reliable! Built-in intelligent temperature-controlled fan switch and temperature-controlled speed design reduce fan noise and extend fan life!

Specifications:
Test voltage: 2~200V
Working current: 0.2~20A
DL24P Discharge power: voltage * current less than 180 W
(The actual running current is limited by the maximum power, please adjust the current according to the law of energy conservation)
The built-in over-current, over-temperature, over-power safety protection functions, if the protection interface is popped up, please pay attention to the parameter adjustment, shall adjust to the maximum power, and then discharge, you can first slowly and smoothly adjust the preset value in the start and discharge, in order to adjust up to the maximum power for discharging

Four Operating Modes of Operation:
1.Constant current operation(CC)
2.Constant resistance operation(CR)
3. Constant power operation(CP)
4. Constant voltage operation(CV)

Protection Settings:
1.Overload protection
2.Overcurrent protection
3. High-temperature protection

Device background settings :
1.Chinese settings
2.English settings

1) Apple Mobile APP:
Please search for E_test in the application store to download and install, then click the Bluetooth APP icon to open the software, and then click the Bluetooth icon above the software to enter the selection DL24-BLE to connect, you can achieve mobile phone remote wireless remote control settings and Measurement function, the discharge status can be viewed at any time on the mobile phone, various data cleaning is visible, the voltage and current power curve of the discharge, etc.

2) Android phone APP:
Scan the QR code on the back of the host to download the corresponding APP software or Android APP: search E-test at Google play to download. After the installation is complete, open the software and click the Bluetooth icon to enter the direct selection of DL24-BLE to successfully use it online. (No need for Bluetooth pairing, the software Bluetooth icon directly selects DL24. can)

3) Computer wired online APP:
After the host is powered on, connect the USB port of the computer with the provided data cable, and then install the CH340 serial port driver, then scan the QR code on the back of the host to download the corresponding APP software. After the installation is complete, select the software you just installed and add The serial port model can be successfully used online, of course, this APP style using the installation method is also compatible with the serial port device of the Bluetooth device!

4) Computer Bluetooth wireless online APP:
First, add the Bluetooth device to the serial port device of DL24-SPP on the computer, then scan the QR code on the back of the host to download the corresponding APP software and store it. Open the software without installing and select the Bluetooth serial port model just added. You can successfully use online

https://www.aliexpress.com/item/40011...
