Ricoh GR (II) Disassembly

Описание: This Video is part of "Howto Avoid & Fix Common Ricoh GR Problems"
https://michaelkowalczyk.eu/library/h...

Disassembly of a defective Ricoh GR Camera. The camera stopped working after developing the Closed Shutter after Power On Problem. In the video I discuss and show the "Shutter Flex Cable". A broken cable could potentially be the cause for GR & GR II developing the Closed Shutter after Power On issue.

00:00 Introduction and problems with the camera
00:36 Unscrewing the body from the bottom, sides and the top (flash mount)
01:51 Top and back plate
02:55 Back plate flex cable
03:40 Screen
05:00 Microphone cable
06:31 Sensor module (view a more detailed disassembly instruction on https://jamiecollinson.com/blog/disas...)
08:09 Sensor rubber barrier

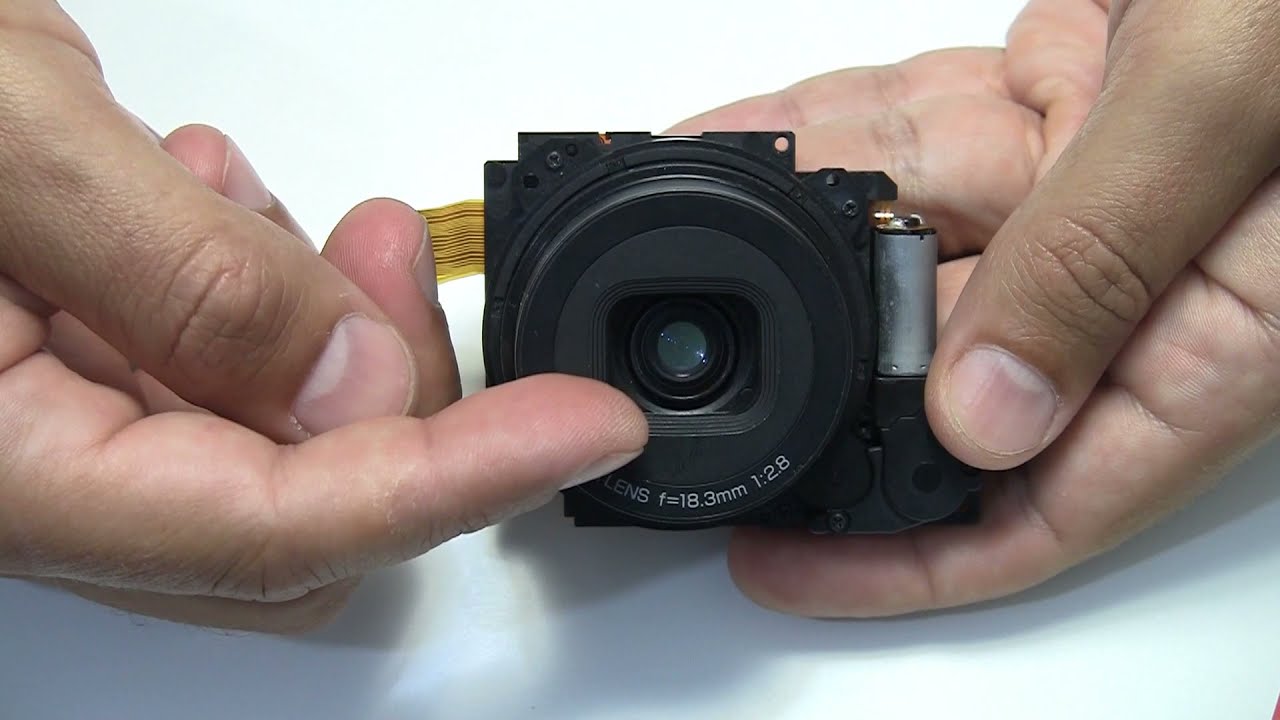

09:01 Lens module
10:19 Lens barrels and hot mirror (blue glass)
12:00 Hot mirror (blue glass)
13:38 Shutter Flex Cable
18:20 Lens Housing Disassembly Video (view the updated howto    • Ricoh GR (II) Lens Housing Disassembly  )
16:57 Lens Housing Barrels & Lens
20:45 Leaf Shutter, Aperture & ND Filter

//
For GR III disassembly check out the photo documentation by Mausinspektor https://www.dpreview.com/forums/threa...

Tools used:
Thin Phillips screwdriver with magnetic tip
Tweezers
Non metallic tip

No used but highly recommended:
Anti-static wrist band (thanks Will)

Replacement Cable:
"Shutter Flex Cable" replacement cables can be found on Aliexpr... Make sure to buy one with pre-soldiered connectors!

DISCLAIMER:
This is not an official guide. Imitation is at your own risk! I am not responsible for any damage caused.
