Innolux V236BJ1-XC01 Panel No Display Repair | CM501 IC Protection & Short Fix
Автор: Ornate Pixels
Загружено: 2025-12-29
Просмотров: 10364
Описание:
Step-by-Step Panel Repair: Chimei Innolux V236BJ1-XC01 Short Circuit Solution. In this video, I’ll show you how to diagnose and fix a T-Con board short circuit on an Innolux V236BJ1-XC01 panel. If your LED TV is experiencing a "No Display" or "Blank Screen" issue due to a voltage drop, this step-by-step repair guide is for you.
What we cover in this repair:
• Diagnosing T-Con short circuits using a Multimeter.
• Checking Short Circuit on the TP.MS18VG.P77 board.
• Step-by-step removal of faulty capacitors.

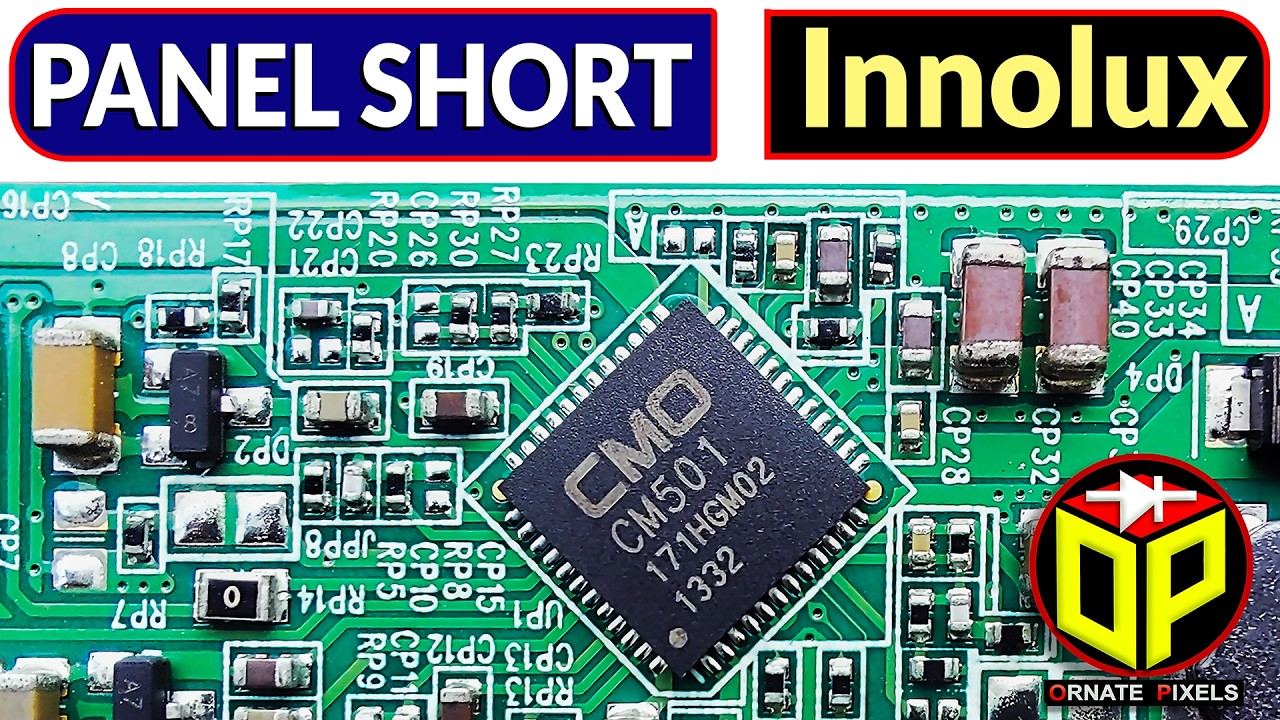

• Finding the real culprit in the Logic Level Shifter section near the CM501 IC.
• Final testing and successful result.
• Technical Specifications:
• Panel Model: Chimei Innolux V236BJ1-XC01 / V236BJ1-LE2
• Motherboard: TP.MS18VG.P77
T-Con IC: CM501 (DC-to-DC Converter)
🔗 Helpful Resources & Schematic Diagrams:
✅ CM501 IC Schematic & Pinout Details: 👉 https://www.ornatepixels.com/2023/10/...
✅ Understanding Logic Level Shifter in LCD Panels: 👉 https://www.ornatepixels.com/2025/07/...
Follow for more: If you found this technical guide helpful, please subscribe to my channel and hit the bell icon for more professional LED TV repair tips!
#LEDTVRepair #PanelRepair #TConShortCircuit #Innolux #CM501IC #V236BJ1XC01 #ElectronicsRepair #TVRepairGuide #OrnatePixels #electronics
