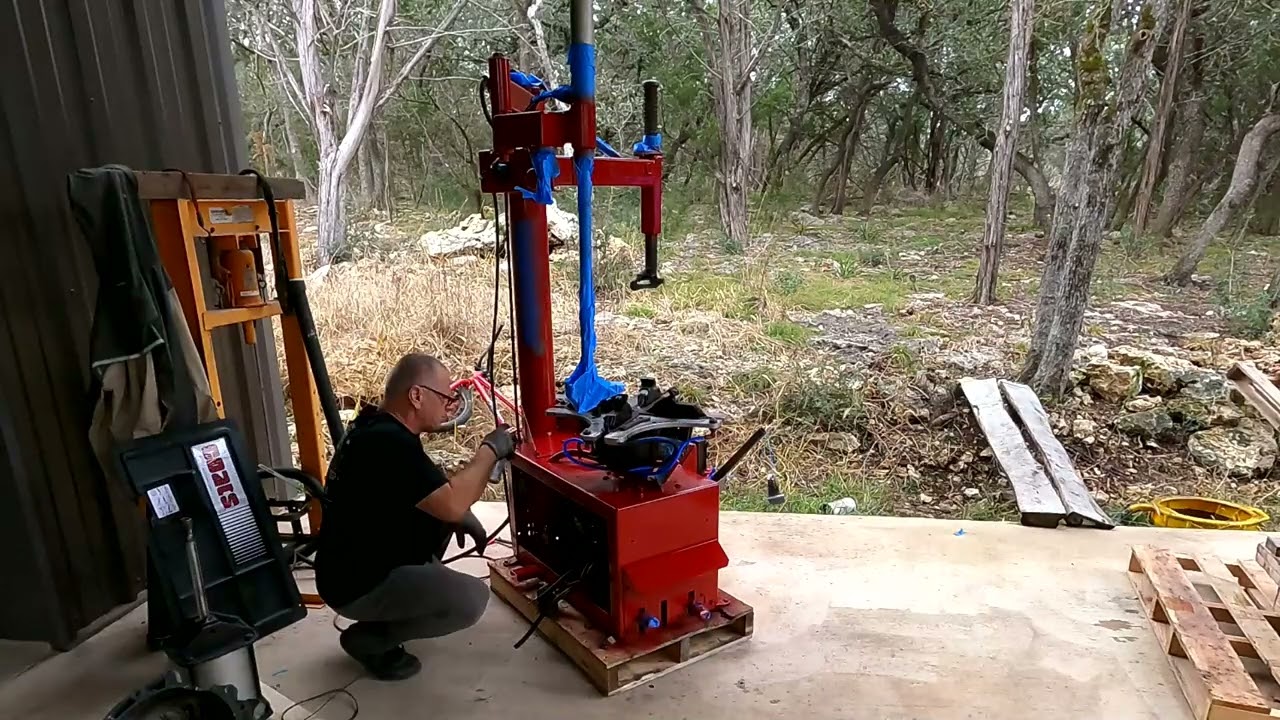

Coats 7060EX - tire breaker valve, lines, repaint

Описание: I obtained a well used coats 7060EX tire changer from my buddy Todd Farris of Shop Outfitters from College Station (Bryan TX).

It need some minor attention but functioned, although the tire breaker was supper slow and leaked at the break valve inside the machine.

I ordered a the following items to fix her up:
https://www.amazon.com/gp/product/B06... COATS TIRE CHANGER MACHINE BEAD BREAKER / LOOSENER PAD KIT RUBBER BUMPER 181855
https://www.amazon.com/gp/product/B08... Quickun Pneumatic Tubing 3/8" Tube OD PU Polyurethane Tube Air Hose Line for Air Compressor Fitting or Fluid Transfer (Blue 32.8ft)
https://www.amazon.com/gp/product/B06... VIAIR 11842 Male Airline 90 Degree Swivel Elbow Fitting, 1/8" NPT x 1/8" (Pack of 2)
https://www.amazon.com/gp/product/B08... uxcell Nylon Line Hose Tube, 2mm(0.07") ID x 3mm(0.11") OD 3 Meter PA6 Nylon Tube Pneumatic - Air Brake Tubing for Fluid Transfer Clear
632V Air Valve for Bead Loosing System on Coats® Tire Changer 8181995 (N...
EBAY - Bead breaker Cylinder Seal Kit Fits Coats ®* Tire Changer machine Fits 182079
EBAY - 632V Air Valve for Bead Loosing System on Coats® Tire Changer 8181995
I also bought 3 brass fittings to make up a T style connection that goes to the middle port on the breaker valve.

The 2 push connect connectors on the breaker valve were not sealing so I replaced them with the above 90 swivel versions (I opted for the swivel) to allow placing the valve in the machine without the lines getting crimped or stressed.

Overall, easy fix but getting the proper size small lines was a bit of a hit and miss. I first started with a 1/8" or 4mm which worked on 2 push fittings but not the other 2. I finally tried the 3.5 and that worked nicely. The T connector on the valve was the key to making things leak free! Overall, the machine is working great and doesn't look too bad either! I do like nice things! ;-)

Thanks for watching.
