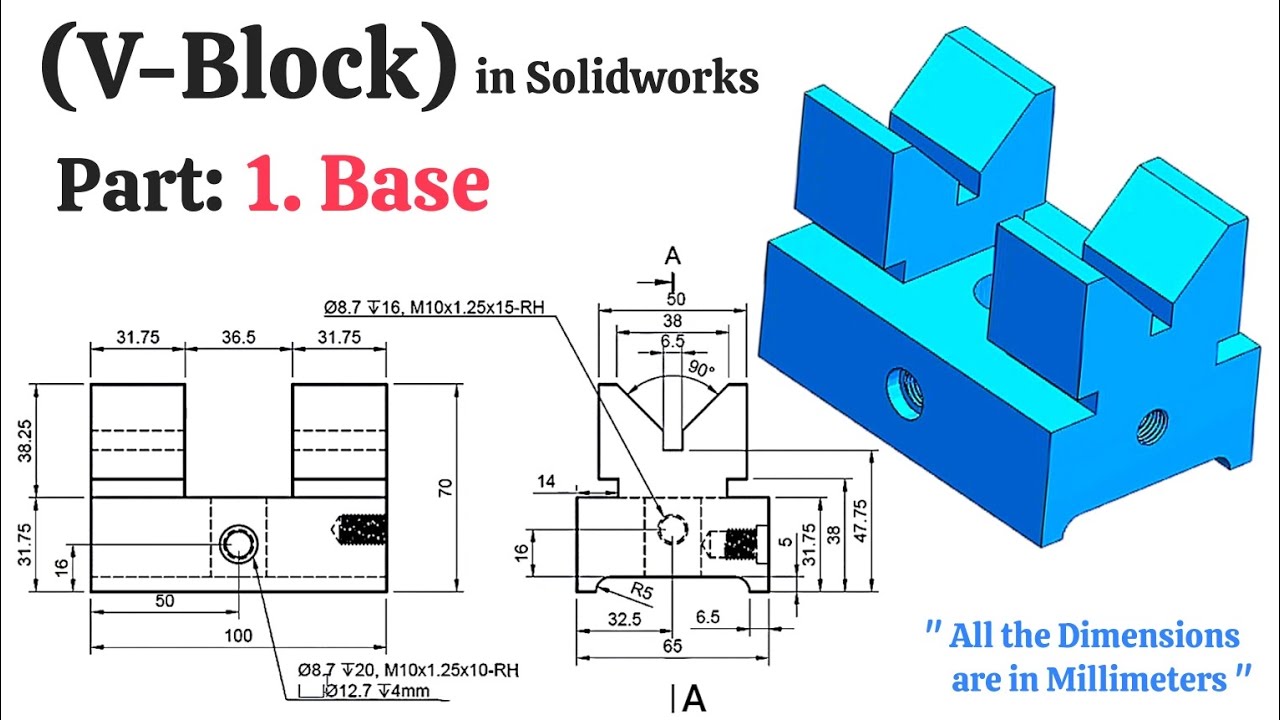

Double V Block Base Design in SolidWorks | Part 1 Tutorial
Автор: Cadmake
Загружено: 2026-01-28
Просмотров: 34
Описание:
Ready to level up your SolidWorks skills? 🚀 In this first part of our Double V Block tutorial series, I’ll walk you through designing a precision V-block base—perfect for machining, inspection, or tooling fixtures! 🛠️
We’ll cover:
• Sketching the core profile with lines, arcs, and constraints
• Using "Extruded Boss" to create the base block
• Cutting the V-grooves with "Extruded Cut" + offset for precision fit
• Adding threaded holes with "Hole Wizard" Counterbore with Thread
• Creating straight holes for mounting using "Hole Wizard" and Straight Hole
• Changing the part’s Appearance for a realistic look
👍 If you love SolidWorks tutorials, smash the Like button, hit *Subscribe*, and ring the bell so you never miss Part 2! Got design challenges? Drop a comment below—I’m here to help! 💡
#solidworks
#VBlock
#caddesign
#mechanicalengineering
#mechanicaldesign
#solidworkstutorial
#solidworkstutorialsforbeginners
#3dmodeling
#desitips
#design
#tutorial
