DIY Wireless Energy Transfer System

Описание: Project file on Free Circuit Editor: https://easyeda.com/GreatScott/IR2113...
Project file on Free Circuit Editor: https://easyeda.com/editor#id=233142f...

Previous video:    • Electronic Basics #26: 555 Timer IC
Previous Wireless Energy Transfer video:    • How Does Wireless Charging Work? || Crude ...
Facebook:   / greatscottlab
Twitter:   / greatscottlab
Support me for more videos: https://www.patreon.com/GreatScott?ty=h
Project information (schematic, pictures, ....) on Instructables: http://www.instructables.com/id/DIY-W...
Würth Elektronik Article: http://www.we-online.com/web/de/index...

Thanks to EasyEDA for sponsoring this video.
Check out their free circuit design tool here: https://easyeda.com

Parts list: (see Instructables article for Amazon.de links, affiliate links)
Aliexpress:
4x IRLZ44N MOSFET: https://s.click.aliexpress.com/e/_dWh...
2x IR2113 MOSFET Driver IC: https://s.click.aliexpress.com/e/_dYn...
1x Resistor Kit: https://s.click.aliexpress.com/e/_dTP...
1x Capacitor Kit: https://s.click.aliexpress.com/e/_dU4...
1x Electrolytic Capacitor Kit: https://s.click.aliexpress.com/e/_d7d...
2x UF4007 Diode: https://s.click.aliexpress.com/e/_dYR...
3x Screw Terminal: https://s.click.aliexpress.com/e/_dYb...
1x 7805 Voltage regulator: https://s.click.aliexpress.com/e/_dXS...
1x TLC555 IC: https://s.click.aliexpress.com/e/_dTr...
1x 74HC4049 IC: https://s.click.aliexpress.com/e/_dWX...
1x 10k Trimmer: https://s.click.aliexpress.com/e/_dTF...

Ebay:
4x IRLZ44N MOSFET: http://rover.ebay.com/rover/1/711-532...
2x IR2113 MOSFET Driver IC: http://rover.ebay.com/rover/1/711-532...
1x Resistor Kit: http://rover.ebay.com/rover/1/711-532...
1x Capacitor Kit: http://rover.ebay.com/rover/1/711-532...
1x Electrolytic Capacitor Kit: http://rover.ebay.com/rover/1/711-532...
2x UF4007 Diode: http://rover.ebay.com/rover/1/711-532...
3x Screw Terminal: http://rover.ebay.com/rover/1/711-532...
1x 7805 Voltage regulator: http://rover.ebay.com/rover/1/711-532...
1x TLC555 IC: http://rover.ebay.com/rover/1/711-532...
1x 74HC4049 IC: http://rover.ebay.com/rover/1/711-532...
1x 10k Trimmer: http://rover.ebay.com/rover/1/711-532...

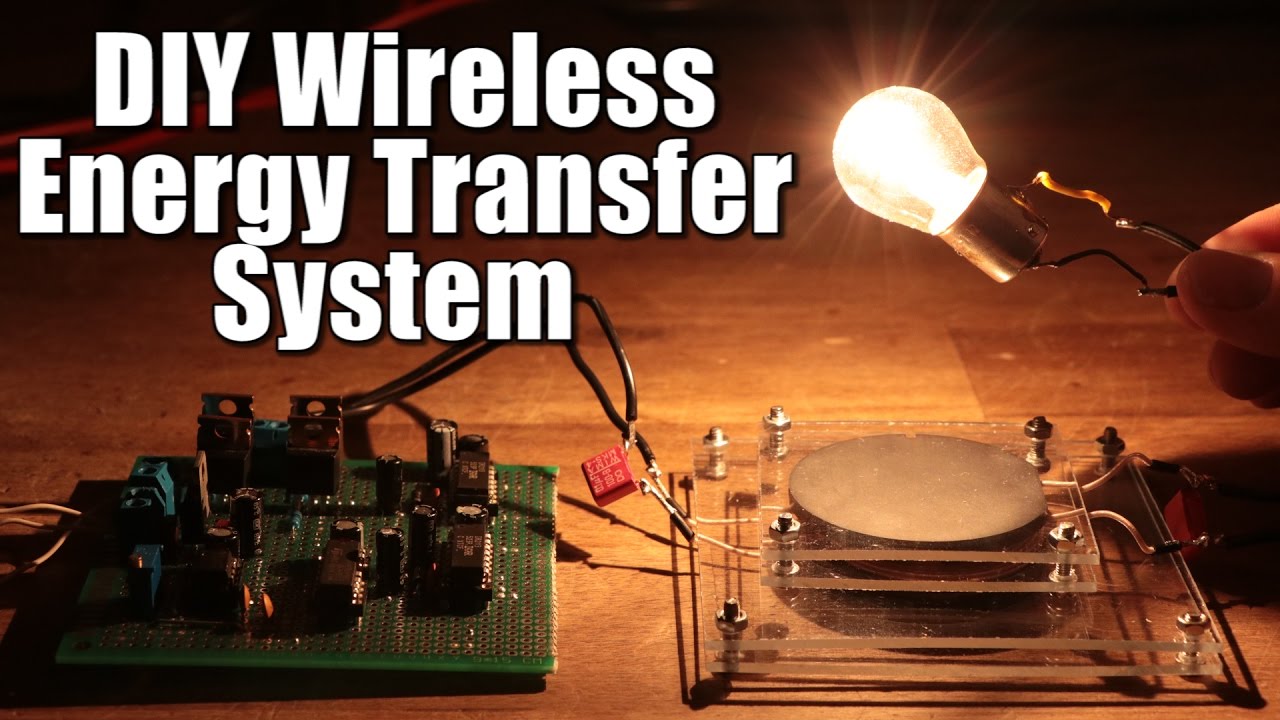

In this project I will show you how to create an appropriate coil and an inverter circuit for a wireless energy transfer system that can easily transfer a power of 20W.
