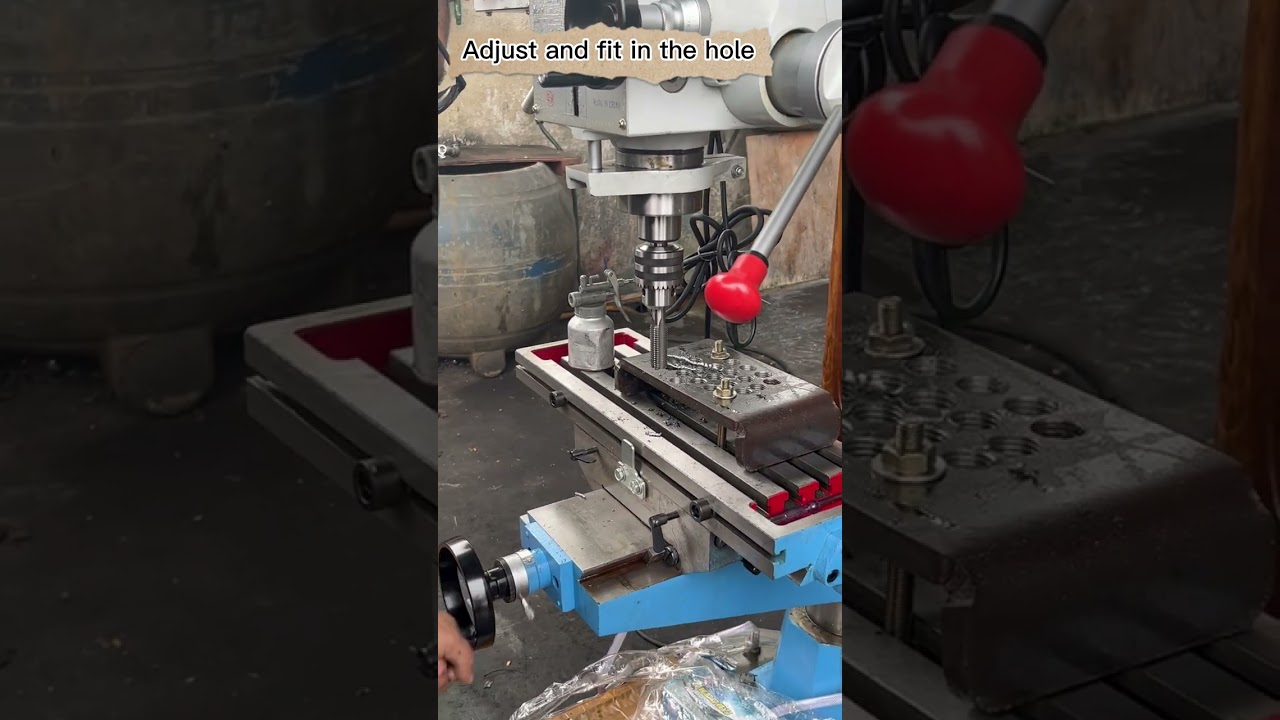

Drilling & Milling ZX 40PC

Описание: #hardware #machine #machinery #demo #demovideo #demovideos #drilling #drillingmachine #milling #millingmachines #tapping #tappingmachine #malaysia

Drilling & Milling ZX-40PC
Max.Drilling capacity(mm): (cast iron ) 40 (steel) 32
Width of face milling(mm): 80
Diameter of vertical milling(mm): 22
Diameter of column(mm): 115
Spindle travel(mm): 120
Distance spindle axis to column generating line(mm): 272.5
Max.distance spindle nose to table(mm): 745
Max.distance spindle nose to base(mm): 1245
Spindle taper: MT4
Spindle speeds range(r/min): 95~1600
Spindle speeds series: 6
Dimension of worktable surface(mm): 585*190
Table travel(mm): 370*140*515
Dimension of base(mm): 690*520
Overall height(mm): 1810
Main motor(W): single phase 750, three phase 1100
G.W/N.W(kg): 375/335
Packing dimension(cm): 72*74*191

CHARACTERS :-
▪ The machine spindle can micro-feeding and hand-feeding.
▪ Spindle speed change and easiness.
▪ This machine use gear driving system, and its driving moment is strong enough to drilling, reaming and milling at all kinds of materials.
▪ The spindle head which can rotated 360° and tilted ±45°.
▪ The motor was driving by gear which overcome the short coming of belt driving.
▪ The working scope is large enough for spindle head and work table not only up and down, but also rotation around the column.
▪ Std accessories: Drill chuck ф16mm, Cutter ф80mm, Taper sleeve, Arbor, Drift, Wrench
▪ Special accessories: Milling chuck, Angle vice, Safety guard
