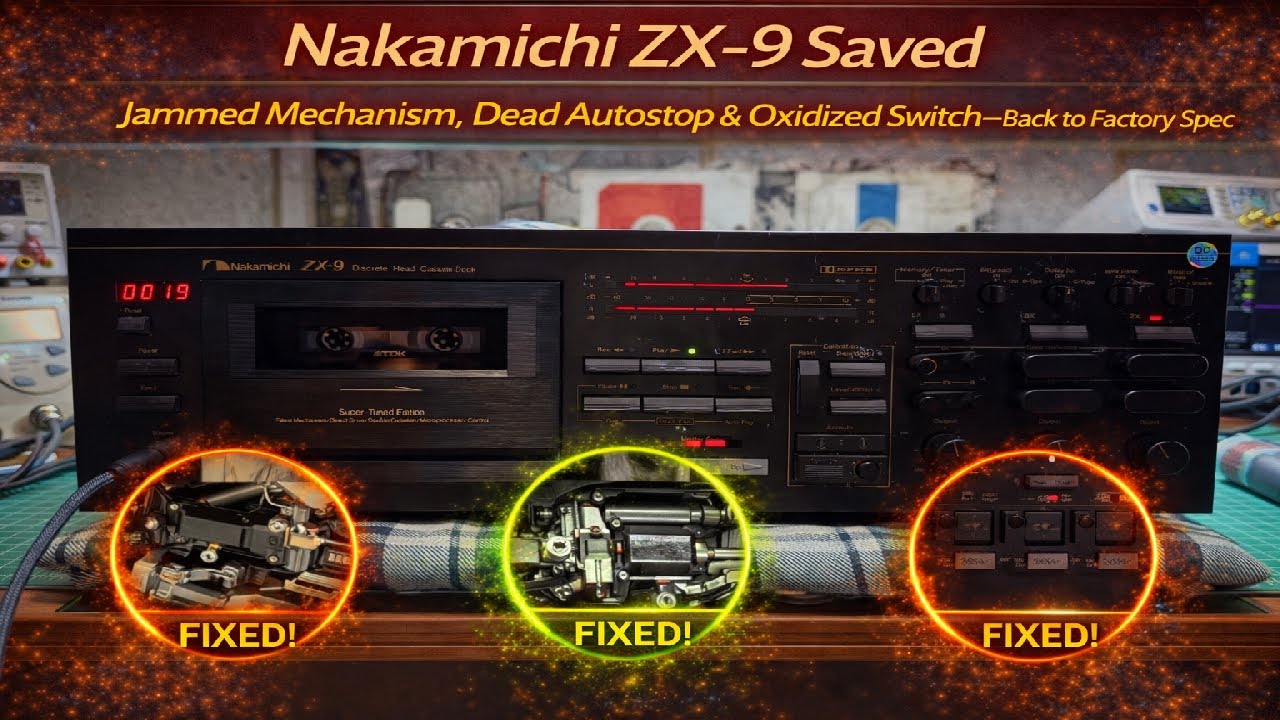

Nakamichi ZX-9 Saved | Jammed Mechanism, Dead Autostop & Oxidized Switch—Back to Factory Spec

Описание: This Nakamichi ZX-9 arrived on my bench completely dead on arrival.
No transport movement, no audio, no response—only the power supply showed signs of life.
After a detailed inspection, I found multiple age-related failures that together prevented the deck from operating at all. Step by step, I addressed each one and brought the ZX-9 fully back to factory specification.
🎧 What Was Wrong:
⚙️ Jammed pinch-roller arms blocking transport operation
💡 Blown autostop bulb, preventing the transport logic from engaging
🔌 Oxidized Source/Tape switch, interrupting signal routing
None of these issues alone explain partial operation — together they result in a fully non-functional deck, which is exactly what this unit was on arrival.
💡 Why This Matters:
On complex Nakamichi transports, a single failed condition can stop the entire system.
When multiple faults are present, the deck appears “dead,” even though the power supply itself is fine.
This is a classic example of why systematic diagnosis matters more than guessing or replacing parts blindly.
🔧 Behind the Restoration:
Disassembled and freed jammed pinch-roller arm assemblies
Replaced the failed autostop bulb so transport logic could initialize
Cleaned and restored the Source/Tape switch to re-enable the audio path
Verified proper transport sequencing and control logic
Performed full electrical calibration and validation to factory specs
👂 My Verdict:
This ZX-9 was not “unreliable” — it was simply non-operational due to multiple accumulated faults.
After proper mechanical repair and electrical tuning, it now behaves exactly as Nakamichi intended.
Another dead-on-arrival classic revived the right way.
