Single-column lifting bin blender, Hywell powder mixer for multiple batches

Описание: The Single-column lifting bin blender operation process is as follows:

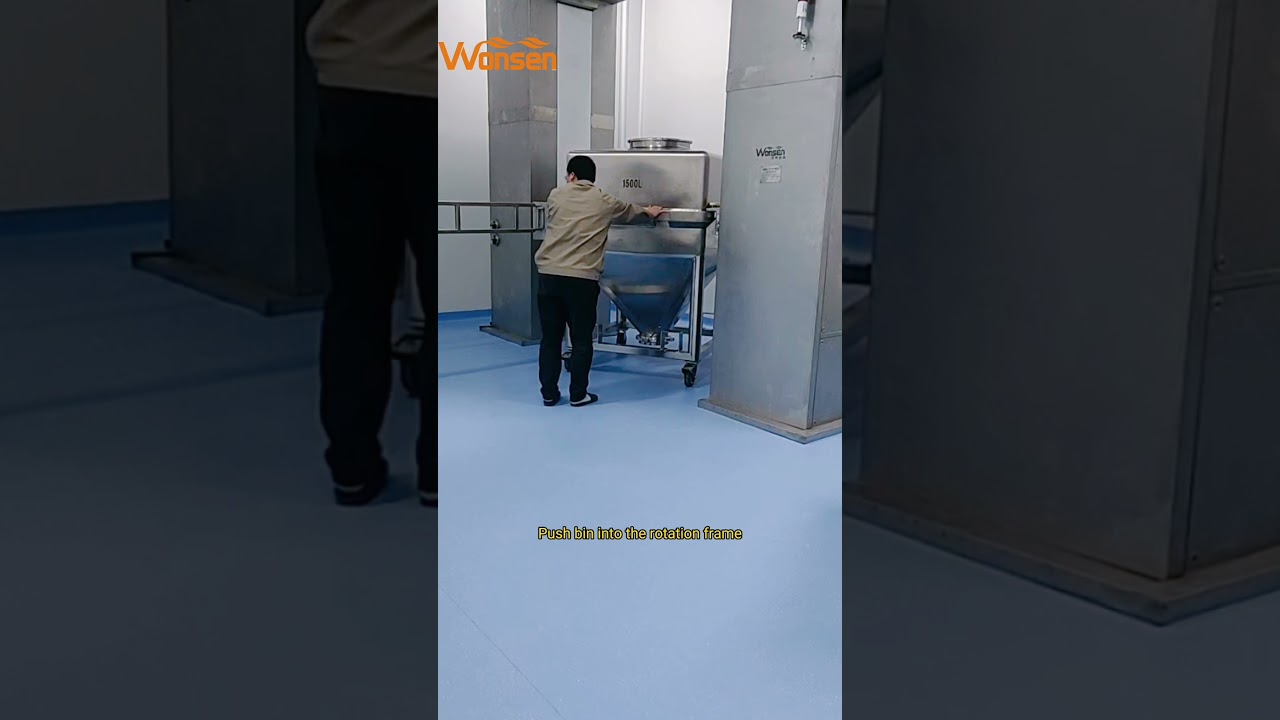

Firstly: Push the mixing bin of the column hopper powder mixers into the swing arm
Second: lock the nut of the mixing bin of the column hopper powder mixing machine.
Third: set the column bin powder mixer working time, bin rotation speed, and other data
Fourth: activate the control system of the column bin powder mixing machine, and raise the hopper to the mixing height. The control system automatically mixes according to the set time, speed, and other data.

#hywellpowdermixer #hywellfluidbedgranulator #hywelldrypowderblender #hywelllabspraydryer

Fifth: When the mixing operation of the bin lift powder mixer is over, the material is fixed at the horizontal position, the hopper automatically drops to the ground, the whole machine stops, and the process data is printed.
Sixth: Loosen the lock nut of the swing arm of the bin lift powder blender and push the hopper out to the next process. if the powder needs to transfer to another tank or packing machine, the materials bin does not need to be pulled out, and to rotating column 90 degrees can be directly connected to the other store tank or packaging machine.

lifting bin blenders are widely used in the mixing of dry powder and dry powder, dry powder, and granules of different components in the production process of the pharmaceutical industry. The bin blender Column has functions such as automatic lifting, mixing, and lowering. It can be equipped with a variety of hoppers for mixing operations. It is suitable for large and medium-sized pharmaceutical enterprises. A single machine can mix multiple varieties and different batches of drugs according to the process requirements so that one machine can be used for multiple purposes.

Because the axis of symmetry of the hopper forms an angle with the axis of rotation of the rotary arm. Materials of different components move in three-dimensional space in a closed hopper, resulting in strong overturning and high shear to achieve the best mixing effect.


The powder mixer for multiple batches series is designed and manufactured to be mainly used in the Chemical, Pharmaceutical, and Food Industries, specifically in those processes of handling powders (mixing and handling) in order to optimize the production flow and avoid cases of "cross-pollution". Column bin powder mixers are suitable to be installed in powdery environments and in ATEX classification zone and/or areas (if required).
