ELASTOTEC M - Spray In Place Pipe Coating Equipment | Relining Group

Описание: ElastoTec M spray pipe coating system are specially designed and developed for use with ElastoFlake material. These next-generation spray coating machines have features that intelligently guide your work enabling high-quality coating results.

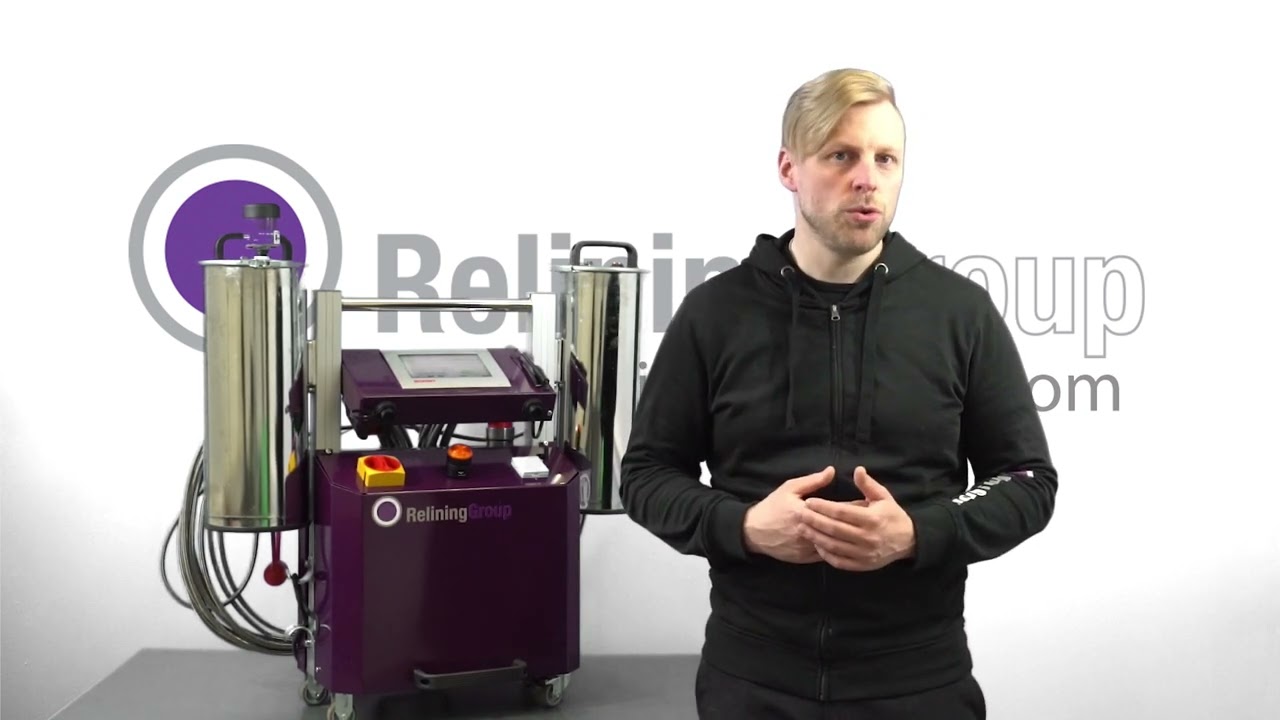

00:00 ElastoTec M spray coating system for internal pipe coating
00:07 ElastoTec M system is a rehabiltation system for old and broken waste water pipes inside the building
00:15 ElastoTec M working range is up to 20 m for pipes diameter from 50mm to 210mm
00:23 Both spray coating and brush coating aplication possible
00:28 ElastoTec M is suitable for sewer pipe lines with multiple 90 degree bends
00:33 The ElastoFlake resin used with ElastoTec M is tested by several high valuated institutes, like DIBt
00:40 ElastoTec M software controls the ElastoFlake polyurethane resin flow and the mixing ratio to provide constant and high quality rehabilitation
00:50 Fast curing of ElastoFlake coating resin allows to work efficiently and there is a minimum distrubtion to work flow
01:00 After fininsh the internal pipe coating with Elastec M the toilet and showers can be taking into use immediately
01:07 The ElastoTec M system weights only 42 kg, thanks to its light weigth it is easy to transport to the worksite

RELINING GROUP - SIPP REHABILITATION SOLUTIONS
Läntinen Pitkäkatu 21-23 E, 20100 Turku, Finland
+358 20 790 2069
[email protected]

⭐️⭐️⭐️ Benefits of Elastotec M spray coating machine ⭐️⭐️⭐️

FUNCTIONALITIES THAT INCREASE EFFICIENCY

✅ Get step-by-step guidance in six languages from the easy-to-use touchscreen
✅ Control wirelessly with a 100-meter-range remote
✅ Save material consumption data from the system to a USB stick to help you with budgeting, material purchasing, and assigning costs per apartment
✅ Increase work safety with excess pressure reporting
✅ Easily monitor and adjust material mixing ratios
✅ Control material flow more accurately with real-time increase of mass in 10 gram increments
✅ Use all year round – circulation mode stops the relining material from thickening in cold conditions by pre-use warmings
✅ Make your workflow more efficient – no need to empty and clean tanks or hoses between jobs
✅ Set a time delay for system valves and spinners

⭐️⭐️⭐️Technical features of Elastotec M internal pipe coating machines ⭐️⭐️⭐️

✔ ElastoTec M: Height: 810 mm, width: 450 mm, depth: 310 mm
✔ ElastoTec M: Weight: 38 kg without tanks
✔ Pipe Dimensions: Ø 50 mm – 200 mm
✔ ElastoTec M: Working distance: 10 – 15 metres
✔ Supply current: 230 V AC
✔ Touchscreen user interface
✔ Six language options
✔ Remote control
✔ Indicator light and audible alarm
✔ Five detachable modules for easy maintenance
✔ Three closed, leak-proof containers for materials
✔ Removable tank with a drip-proof valve and quick release lock
✔ Volume sensors in tanks
✔ Material consumption data is downloadable from the system onto a USB stick.
