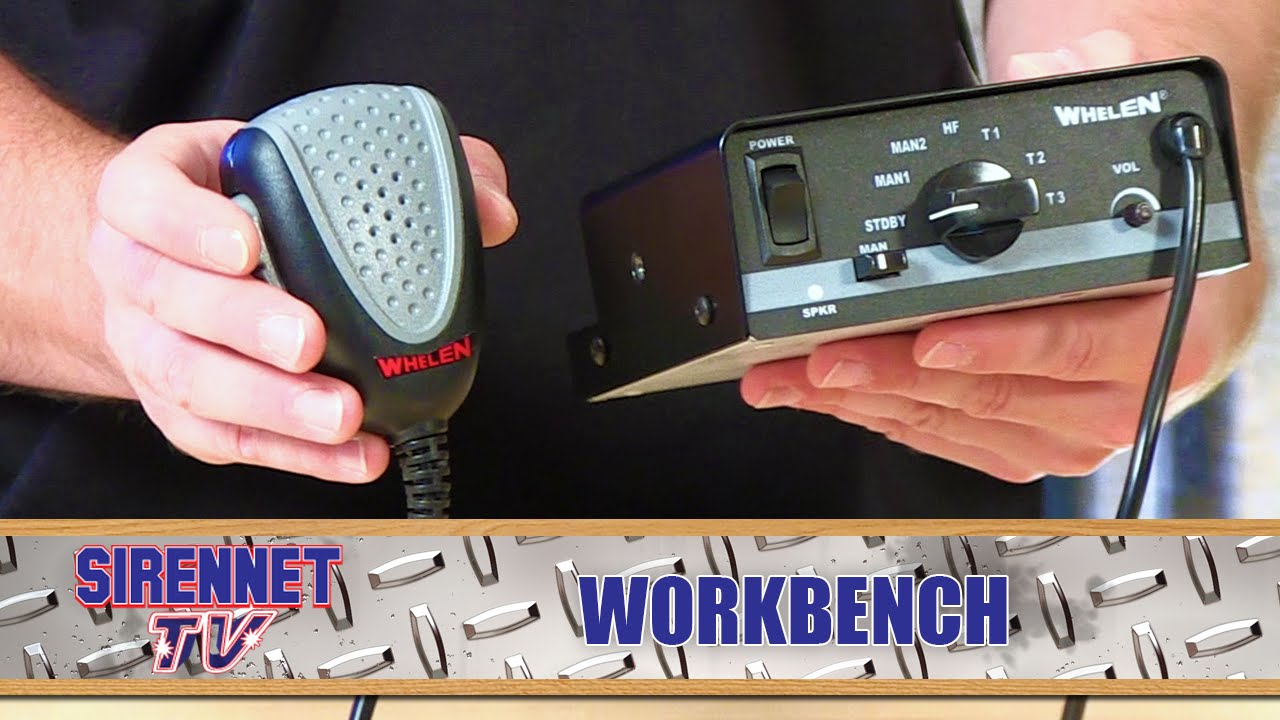

Whelen Siren - EPSL1 Epsilon Series 100 Watt Siren

Описание: https://sirennet.com/whelen
The Whelen EPSL1 Epsilon Series 100 Watt Siren provides a wide range of features in a low cost siren that meets SAE Class A sound requirements and is California Title 13 compliant. Epsilon provides hands-free operation, public address, Scan-Lock multiple warning tones and real time diagnostix. The front of unit includes a PA volume control knob for the noise cancelling microphone, an On/Off switch, a manual button and a 7-position tone/radio rotary switch.

Features:

Full featured, self-contained electronic siren.
100 watt amplifier.
LED Backlighting.
Real-time diagnostix indicator:
Steady light: the siren is operating correctly.
Single flashes: speaker is short circuited.
Indicator off: speaker is not at full output.
Nine Scan-Lock siren tones to choose from: Tone off, Wail, Yelp, Airhorn, Hi/Low, Piercer, Y249, Manual wail coast to stop and Manual wail stop.
Wail, Yelp, and Y249 are California Title 13 compliant tones.
Meets SAE Class A sound requirements when used with most 100 watt speakers.
Meets California Title 13 requirements.
Hands-free operation/override from the horn ring.
Scan-Lock switch is "security" located on the rear to ensure all fleet sirens are set with the same tone sequences.
Installation package includes all the necessary mounting hardware and input pigtail connector.
Rotary switch allows choice of standby for use with the manual button, manual tone 1 & 2.
Hands-free position allows horn ring operation of the siren and tone 1, 2 and 3 positions.
Each of these tone positions has an override tone when the manual button is depressed.
Pre-wired with quick disconnect plug for easy service and prompt replacement.

Specifications:

Input voltage: 12.8 VDC ±20%
Input current: 8 Amps Max.
Input fuse: 10 AMPS
Speaker impedance: 11 OHMS Min.
Operating temperature: -30° C. TO +60° C.
Storage temperature: -40° C. TO +70° C.
Humidity: 99% (Non Condensing)
Output voltage: @15 VDC @11 OHMS 34 V RMS Max.
Output power: @15 VDC @11 OHMS 105 Watts Max.
Dimensions: 5-7/8" W x 2-1/4" H x 5-3/4" D.

Whelen Twenty-four Month Warranty
