Installation - Aidoo Pro Mitsubishi Electric

Описание: Device to manage and integrate Mitsubishi Electric units remotely from the Cloud. Online control with the “Airzone Aidoo” App (available for iOS and Android). Wireless Wi-Fi connection. Externally powered by the indoor unit.
Features:
• Control of the parameters of the unit.
• Communication errors detection.
• Temperature and operating mode time schedules.
• Multi-user and multi-session.
• Port for integration via Modbus/BACnet protocol.

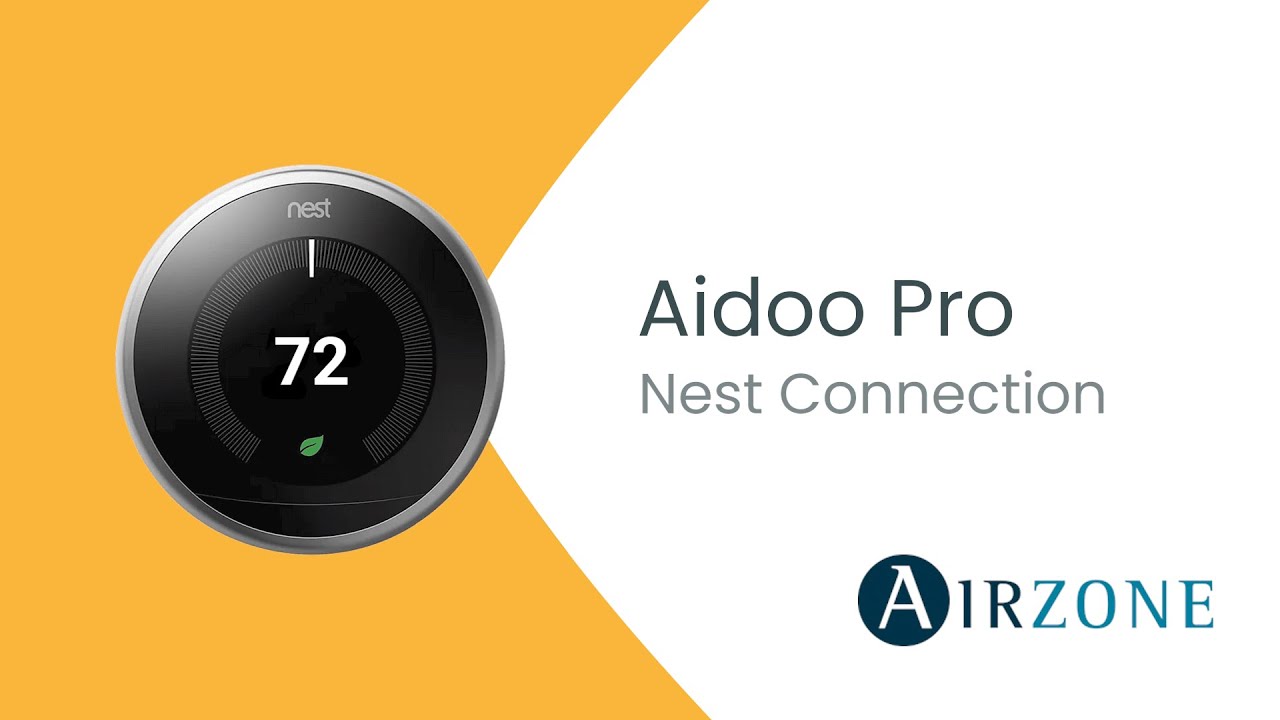

• Third party smart thermostat integrations (3PTI).
• On/Off output and input.

Access to the Initial Settings of the Mitsubishi Electric thermostat and set “Follower” (refer to the Operating Instructions of the Mitsubishi Electric thermostat).
Disconnect the indoor unit.
1. Perform the assembly following the next step:
a. Screw attachment.
b. Double-sided adhesive attachment.
2. Connect the Aidoo to smart thermostat (optional). It is needed a non-supplied external power supply connected to the same terminal.
3. Connect the Aidoo to the CN105 / CN92 terminal of the indoor unit using the supplied cable.
4. Connect the Aidoo to power supply.
5. Power the indoor unit. Check the LEDs (see Self-diagnosis section).
6. Download the app and follow the steps bellow for its setting. Access the support section to see the user manual.

For further information about our products, go to airzonecontrol.com
