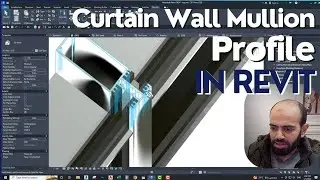

Parametric Curtain Wall Modeling in Revit | Vertical & Horizontal Profiles (Step-by-Step)
Автор: Metin KARADEMİR
Загружено: 2021-03-22
Просмотров: 19414
Описание:
part-2 ; • Revit,Parametric curtain wall modeling (tu...
This tutorial explains how to model a fully parametric curtain wall system in Revit, focusing on vertical and horizontal profile logic.
The workflow demonstrates how curtain wall profiles are constructed in a way that allows flexible sizing, repetition, and future modifications.
In this video, I show how to draw and control curtain wall profiles parametrically, without relying on fixed dimensions.
This approach is commonly used in façade engineering projects where multiple panel sizes and system variations are required.
Note: When using this workflow for large-scale or high-density buildings, performance issues may occur on some computers.
The main purpose of this video is to demonstrate that a curtain wall family can be created using this parametric approach.
Depending on the project scale and system complexity, this method may not be suitable for every drawing or production scenario.
