Muratec Autocone QPRO-EX Machine Auto Doffing with Uster Quantum4

Описание: Muratec Autocone QPRO-EX Machine Automatic Doffing with Uster Quantum4 #creativity #Muratec #QPRO #uster
Yarn package Doffing with Automatically Doffer.
#usterquantum4 #autocone

Muratec QPRO Plus Process Coner II Automatic Winder
Overview
PAC21 Winding System

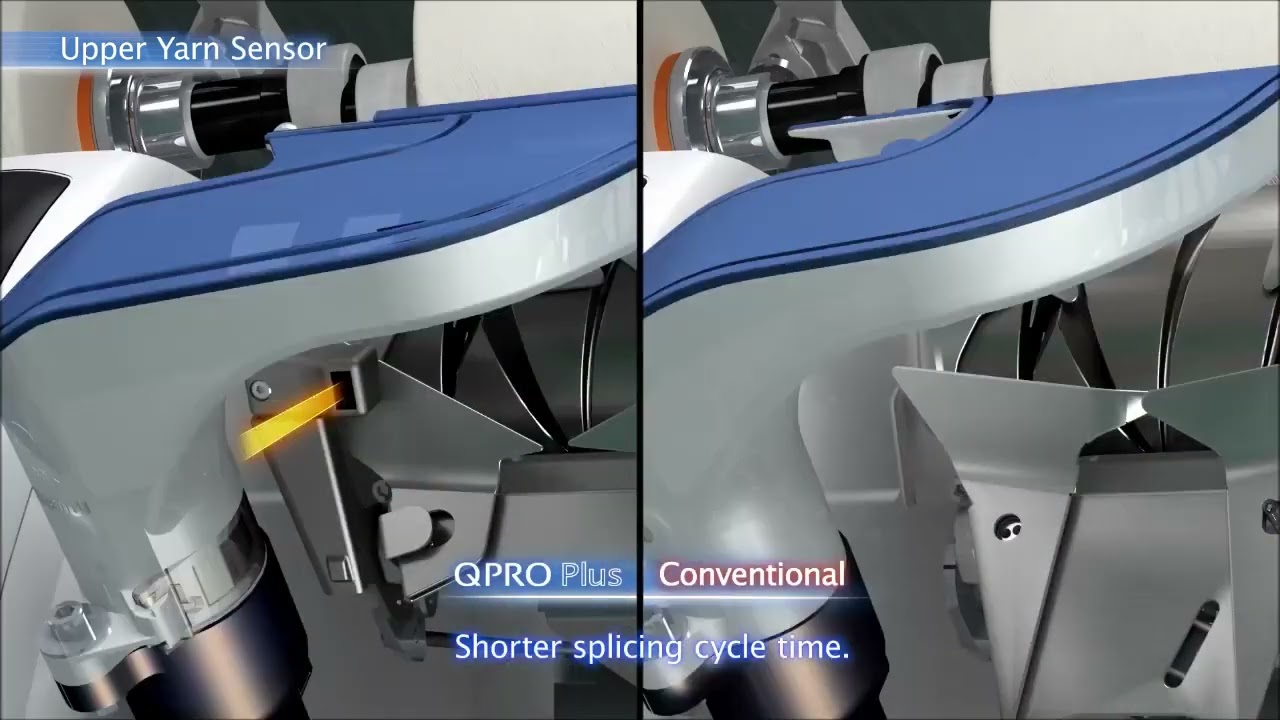

Smart Guide Panel Upper Yarn Sensor
Traverse Sensor
Waxing Device
Kink Preventing System - Hard Waste Reducer
Suction Shutter
PLC21-The Perfect Length Counter
Splicer
Ceramic Cutter
PC Module: PC Sensor+PC Tensor+PC Bal-Con
Dust Collector
Kink Preventing System - Hard Waste Reducer
Tray Selector

Perfect Tension
-Realizes stable winding from start to end of the winding process by giving instantaneous feedback of yarn tension from the bobbin to package by PC Module.
-In order to realize even greater stability in unwinding, activates the bobbin automatic centering function. This allows for yarn unwinding at higher speeds to improve productivity.
-Devices including the drum motor, splicer, and suction mouth are independently driven to optimize the splicing cycle.
PC Sensor
In addition to the feedback function of yarn tension, PC sensor prevents package rejection caused by tensor error, which may occur due to tension deviation or component damage in yarn path.
PC Tensor
Pressurized tension is delicately controlled by two gate tensors located one above the other.
Even sudden fluctuation in yarn tension can be handled accurately, enabling high-speed winding.

Tension feed back
Realizes stable winding tension
Through tension feedback from the PC sensor and PC Bal-Con, unstable yarn tension from start to end of the winding process are controlled, realizing stable high-speed unwinding.

Perfect Ballooning
PC Bal-Con
PC Bal-Con continuously moves along the bobbin, creating a ballooning in order to maintain a uniform winding tension from start to end of the winding process.
Combination of PC Sensor and PC Tensor further enhances the stability and boosts high speed winding. Precise & controlled movement of PC Bal-Con by the motor driven slide screw ensures its accuracy.
Advantages of PC Bal-Con
1. High-speed winding
2. High productivity
3. Sloughing suppression
4. Hairiness reduction
5. Reduced hairiness generation
6. Reduced nep generation
Auto Bobbin-Centering Function
The bobbin is continuously held in the ideal position by the sensor sensing the bobbin position. The bobbin can be maintained at the center of the Bal-Con by the sensor. Bal-Con with smaller diameters can be used, and this allows for high-speed unwinding.
Sloughing suppression
When unwinding the supply bobbin, the Bal-Con minimizes the contact between the yarn being unwound and the yarn layer on the bobbin. This results in a remarkable suppression during high-speed winding of undesired tension in the package, stitched package, etc.
Suppression of fluff and hairiness generation
The chase surface does not generate hairiness as a result of non contact with unwound yarn, and hairiness is reduced in all sections, from the top to the bottom of bobbin.

Perfect Package
PLC21-The Perfect Length Counter
PLC21-The Perfect Length Counter is a non-contact photoelectric type and precisely detects the length of yarn to be wound without making contact with yarn. Based on the detected data, the VOS (Visual On demand System) controls the winding length of a package to rewind at a uniform speed so that a precise fixed length winding (±0.3%) can be realized.
PLC21 minimizes yarn length variation between the packages.
・Precise fixed length winding(±0.3%) can be achieved.
・Residual yarn on warping can be reduced by approximately 2.5%.
・Workload reduction in weight adjustment during packaging.
・Power saving by reducing the winding time (yarn length).
・Rewinding of Remnant cone is reduced.
Weight adjustment during packaging
The workload of the package weight adjustment can be significantly reduced, especially when handling yarns for knitting (waxed) with weight variation.
Traverse Sensor
Yarn traverse is always checked and a unit is stopped if any irregular traverse occurs to avoid yarn lapping or defective packages. Recommended for fine count yarns requiring strict control of yarn over, chemical synthetic fibers, and wool yarns.
Suction Mouth
Suction mouth features its economical design which is realized by computer analysis of air flow. Yarn end is precisely suctioned out even by lower suction pressure. In addition, the pulse control achieves a precise distance to package.
Kink Preventing System - Hard Waste Reducer
Improvement in the shape of the brush increases stability further. Kink generation is prevented and package quality is improved.

If you want the Muratec QPRO EX Auto cone with Uster Quantum 4.0 presentation or order Murata or USTER equipment from us , then please contact us: e-mail: [email protected], Tel.:+37064678790, http://modernios.tech.
