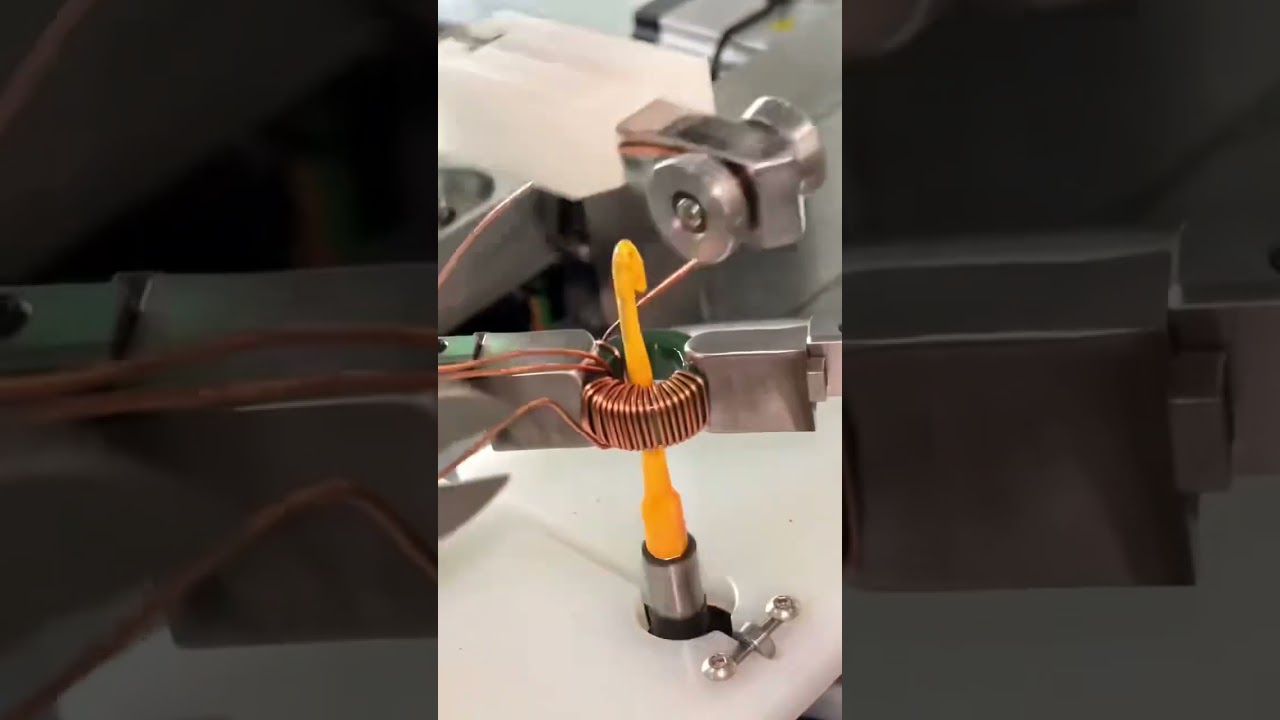

Coil winding machine Exported worldwide and trusted across motor , and new energy industries.

Описание: Coil winding machine Exported worldwide and trusted across motor , and new energy industries.
The fully automatic winding machine is an automated equipment specifically designed to wind enameled wires on this ring-shaped magnetic ring at high speed and precisely. It completely replaces traditional manual winding or semi-automatic winding and realizes the entire process automation from loading materials, winding, arranging wires, cutting wires, welding to unloading.
In simple terms, the ordinary common mode magnetic ring fully automatic winding machine is an intelligent robot that can "itself" neatly wind copper wires on the magnetic ring.

II. Core Components and Functions
1. A typical fully automatic magnetic loop line machine usually consists of the following core systems:

2. Loading System: This system is responsible for arranging the loose magnetic rings in an orderly manner and transporting them to the winding station. Common methods include vibration plate loading or guide rail loading.

Winding mechanism: The core of the machine. Usually, it employs "loom-style winding" or "hook-wire winding" techniques:

Thread winding method: A spool with a thread hub passes through the center of the magnetic ring and rotates 360 degrees for winding. This method is fast and suitable for scenarios with thicker wires and fewer turns.



Hooked wire winding: A precise hook needle catches the enameled wire and moves back and forth inside the magnetic ring to complete the winding. This method of winding is more precise and is suitable for products with thin wire diameters, a large number of turns, and high requirements.

Wiring system: Ensure that each coil of wire is neatly and orderly arranged on the magnetic ring, without any overlap, gaps or crossings. This is crucial for ensuring the electrical performance and consistency of the product.
Wire cutting and clamping system: Secure the wire ends before starting the winding process, and precisely cut the wire tails after the winding is completed.

Welding system (optional): For products that require direct connection of pins, the machine can be equipped with an automatic welding device to weld the enameled wire onto the pre-inserted pins.

Cutting system: The wound-up finished products are collected into designated containers by the mechanical hand or slide track, and can be classified as good products and defective products.

Control system and human-machine interface: PLC (Programmable Logic Controller) and touch screens are commonly used. Operators can easily set parameters such as the number of turns, winding speed, and winding mode, and monitor the production status.
