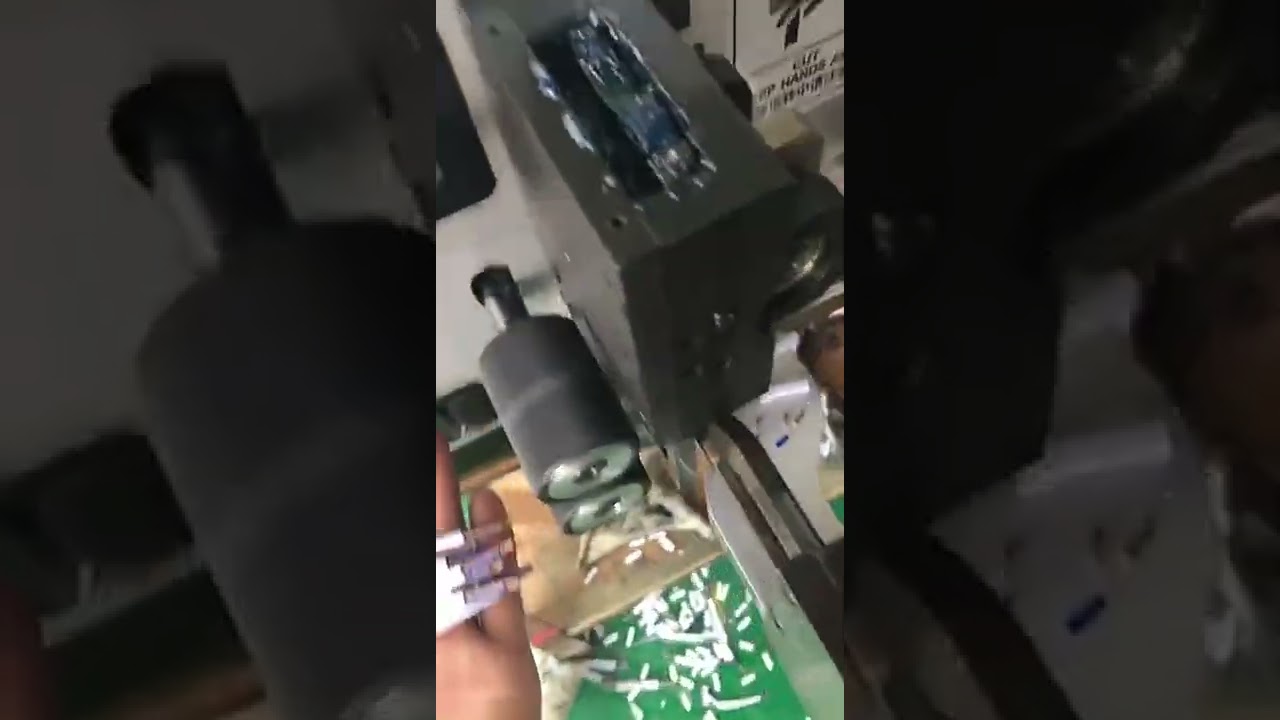

Multi function Automatic Wire Cutting Stripping Twist Machine
Автор: PENGLAI CHINA
Загружено: 2022-10-12
Просмотров: 501
Описание:
Multi-function automatic cutting stripping flat sheathe wire twisting of inner core wire at one time
Automatic wire cutting, skin peeling, core wire stripping, twisting core wire four line in one time. One machine fore multiple uses, save time and energy.
Suitable for Flat sheathed wire, PVC, VSF, TF, Glass fiber wire etc.
LCD Screen application of 32-bit CORTEX-M3 core processor, running speed up to 72M, can store hundred of information to call at any time.
This machien uses a motor to drive the tube, which has the characteristics of low noise, stable operation, convenient adjustment and not easy to damage.
Basic parameter of wire cutting stripping machine:
Model BORX-660
Product name Flat sheath wire stripping and twisting machine
Power supply AC220V 50HZ/60HZ (According customer country requirement)
Display method English and Chinese LCD screen
Processing wire range AWG#7-AWG#28 The inner and outer skinning and twisting
Cutting length 0.1-99999.99mm
Stripping length Front end:0~100 Rear end 0-60 half stripping is required for more than 30
Cutting tolerance +/- (0.2+0.003L) mm
Blade material Tungsten steel
Work speed 1500-2000pieces/hour
Drive way Step motor drives 4 wheels simultaneously
Processable wire Flat sheathed wire, PVC, VSF, Teflon, glass fiber wire etc
Adjust the speed 0-9
Weight 39KG
Dimension 700*400*280mm
After-sales service on the machine shown in the video:
Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse,misapplication, storage damage,
negligence, or modification to the Equipment or its components.
ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)
Installation: after the machine arrive your factory,if you need,our technician will go to your place to install
and test the machine and also training your worker to operating the machine (The time of train depend on you worker).
The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.
After-sale service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible.The cost should be in your account.(as above).
