Stator Winding Inserting Machine/Stator Winder-Nide Mechanical

Описание: The stator winding inserting machine insert coil and wedge simultaneously, coil insertion is controlled by servo motor system, and wedge insertion by variable frequency motor.
It is controlled by HMI, and machine can diagnose breakdown automatically.
This machine is suitable for Polyester Film wedge roll material with fixed thickness and fixed width (width and thickness dimension is provided by customer)
The wedge feeding is by stepping motor,feeding length, cutting, forming, inserting slot number could be set.
Both copper wire and aluminium wire are applicable.
Production capacity ≤25s/set (exclude theman-hours for auxiliary work)
Primary qualification rate for copper wire≥98.5%, after rework, the rate ≥99.5%
Both wedging system and feeding system have pre-decelerating function.
This machine has alarm for material rubout.
Wire pushing height and stop time can beset in the HIM interface.
This machine has fixed foot and removable wheel.

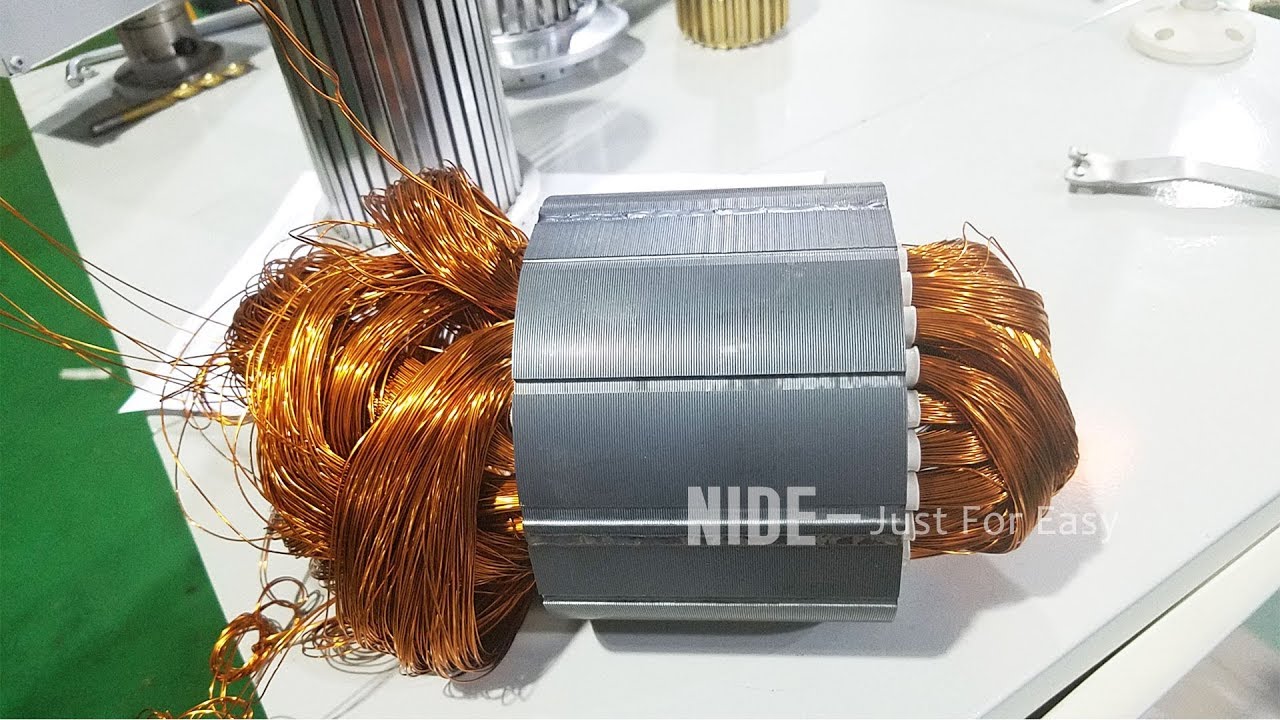

Wedge should not be damaged, no burr in the surface, no movement or slide.
Slot paper should not be damaged, nomovement or slide. Copper wire should not be pull away from the paper.
The stator should not be deformation or stator lamination should not be upward.

(1) Main technicaldata
Stator stack length: 10--150mm
Stator OD: Max. 160mm
Stator ID: 30~110mm
Tooling traveling distance: Max.60mm
Suitable wire material: copper/ aluminium wire
Slot number: 8~48slots
Max. slot filling rate: 80%
Power: 380V/50/60HZ 3Kw
Machine weight: about 850kg
Machine dimension: L1850*W650*1700mm

(2) Application
It is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor.

If you want more information, please contact us.
