WB-CB66-VE Motorcycle Adapter (WB-CB6-MCAK16) Installation
Автор: Tuxedo Distributors, LLC
Загружено: 2018-10-04
Просмотров: 1151
Описание:
Installing the WB-CB6-MCAK16 motorcycle wheel balancer adapter on a WB-CB-66-VE wheel balancer.

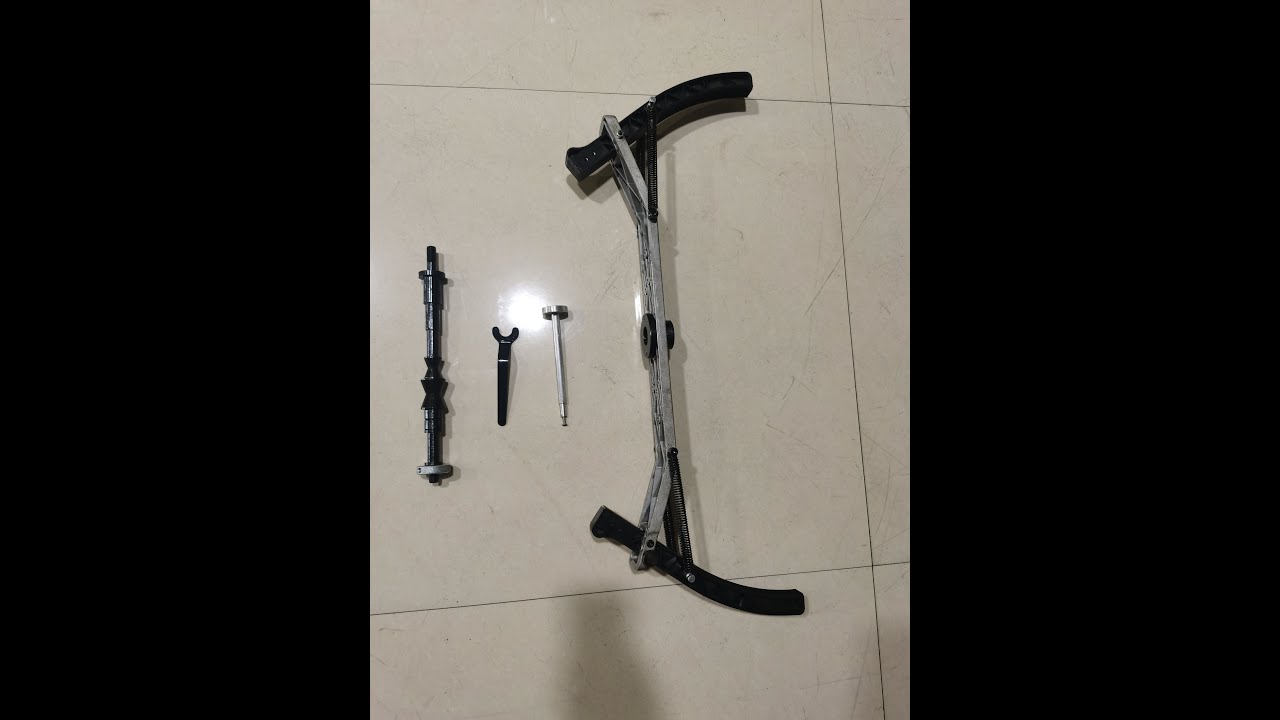

Assemble the WB-C6-MCAK16 by sliding the 14MM shaft assemble through the center hole of the clamp. Attach the shaft to the clamp assembly using the 5MM allen head bolts supplied. Slide the shaft/clamp assembly (WB-CB6-MCAK16) on the stub shaft of the WB-CB66-VE. The center portion of the WB-CB66-VE flange is spring loaded. Press the shaft/clamp assembly on the stub shaft and attach to the flange using the two 6MM allen head bolts supplied. Attach the distance gauge extension to the distance gauge and the installation is complete. If you have questions you can reach us at 817-558-9337.
