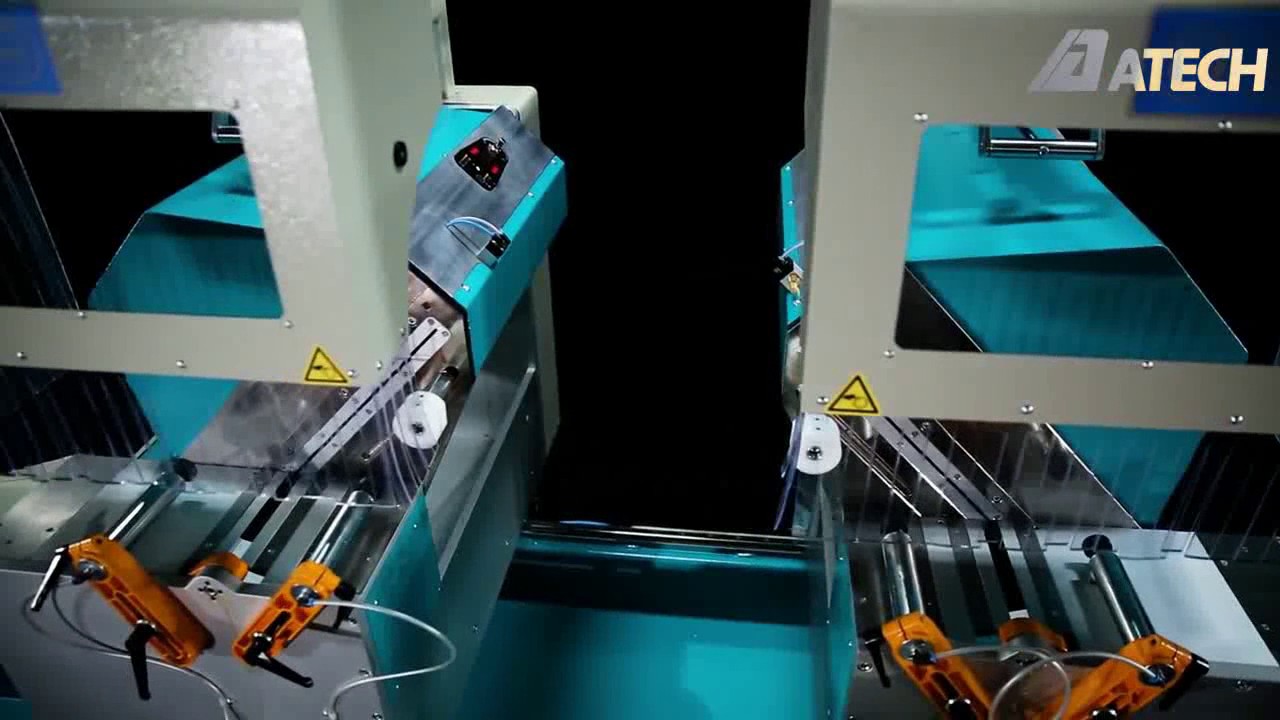

ZIGMA 02 AP 550 CNC Double Head Miter Saw 22″ (550 mm)

Описание: Zigma-02 AP-550 is a 22″ (550 mm) CNC double head miter saw. It has 5 main parts; tilted both to left and right side 550 mm (22”) saw blades, a pneumatic spray mist lubrication system, a 15” colored touch screen & Windows based computer operating system, a barcode printer, and 2 x 4HP 3,000 rpm motors. This double miter saw is also available in two other versions: the semi-automatic Zigma-02 SA-550 and the manual Zigma-02 A-550.

Zigma-02 AP-550 has automatic angle setting adjustments for internal cutting at a 45° angle and for external cutting at a 22.5° angle. In addition, it has cutting capacities: for internal cutting at 45° min. 580 mm (23”), max. 4000 mm (157”) and for external cutting at min. 400 mm (16”), max. 4000 mm (157”). There is also multiple stroke length cutting possible, in advance.

Zigma-02 AP-550 has a hydro-pneumatic saw blade feed with variable speed controls to suit different profiles and materials. Its movable right saw head is equipped with a pneumatic brake system, which is automatically activated at the beginning of the cut cycle. It also has a pneumatically operated overhead safety guarding for both saw heads, and the conveyor is attached to the right hand mobile saw head. Moreover, optimized cut lists can be uploaded into the machine using USB flash memory or directly from your office network. Zigma-02 AP-550 is also equipped with a modem for remote access via Internet.

The machine has been designed in accordance with CE, UL and CSA Safety Directives. You can have further information about the Zigma-02 AP-500 at ATechMachinery.com, watch demonstration videos, or read its detailed technical catalog and parts list.

TECHNICAL FEATURES

** CSV to MDB button, which enables you to immediately convert the cut lists to MDB format even if you prepared the cut lists manually. Then you can save them in a different format, which saves you time.
** Saw heads tilt both to left and right side. 550 mm (22”) saw blades
** Internal cutting angle 45°, external cutting angle 22.5°. Automatic angle setting
** Cutting capacities: at internal 45° min.580 mm (23”), max. 4000 mm (157”) at external angle cuts min. 400 mm (16”), max. 4000 mm (157”)
** Multiple stroke length cutting possible
** Hydro-pneumatic saw blade feed with variable speed control to suit different profiles & materials of the cutting cycle
** Movable right saw head is equipped with a pneumatic brake system, which is automatically activated at the beginning of the cut cycle
** Pneumatically operated overhead safety guarding for both saw heads
** Conveyor attached to the right hand mobile saw head
** Slicing feature
** Pneumatic spray mist lubrication system
** Windows based computer system, 15” Color Touch Screen
Barcode printer
** Optimized cut list can be uploaded into the machine via USB flash memory or directly from your office Network
** Equipped with a modem for remote access via Internet
3000 rpm, 2 x 4HP motors
** This double miter saw is available in two other versions: ZIGMA-02 SA-550: Semi-Automatic, manual movement ZIGMA-02 A-550
