IRF530 Push Pull Amplifier - Part 5
Автор: NA5Y
Загружено: 2021-10-18
Просмотров: 3395
Описание:

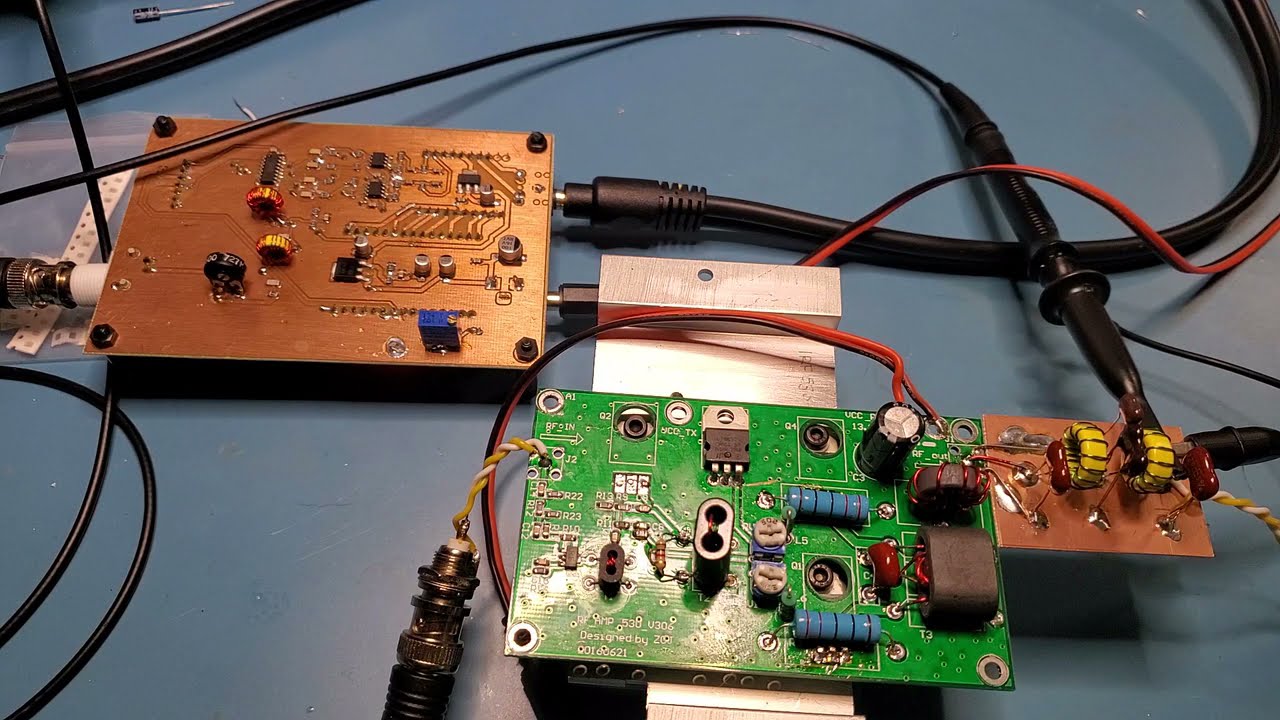

Just a quick update video where I do some two tone testing with the IRF530 based amplifier
Here's the original video
• Tayloe Mixer with Amplifier
Here's the site I used to design the LPF
https://rf-tools.com/lc-filter/
Here's the LTSpice model for the LPF
https://github.com/thaaraak/ltspice/b...
0:00 Intro
0:32 Test setup
1:46 Two tone on the oscilloscope
2:40 Two tone on the spectrum analyzer
4:02 Single tone output on oscilloscope
4:52 Current draw for single tone
5:11 Wrap up
