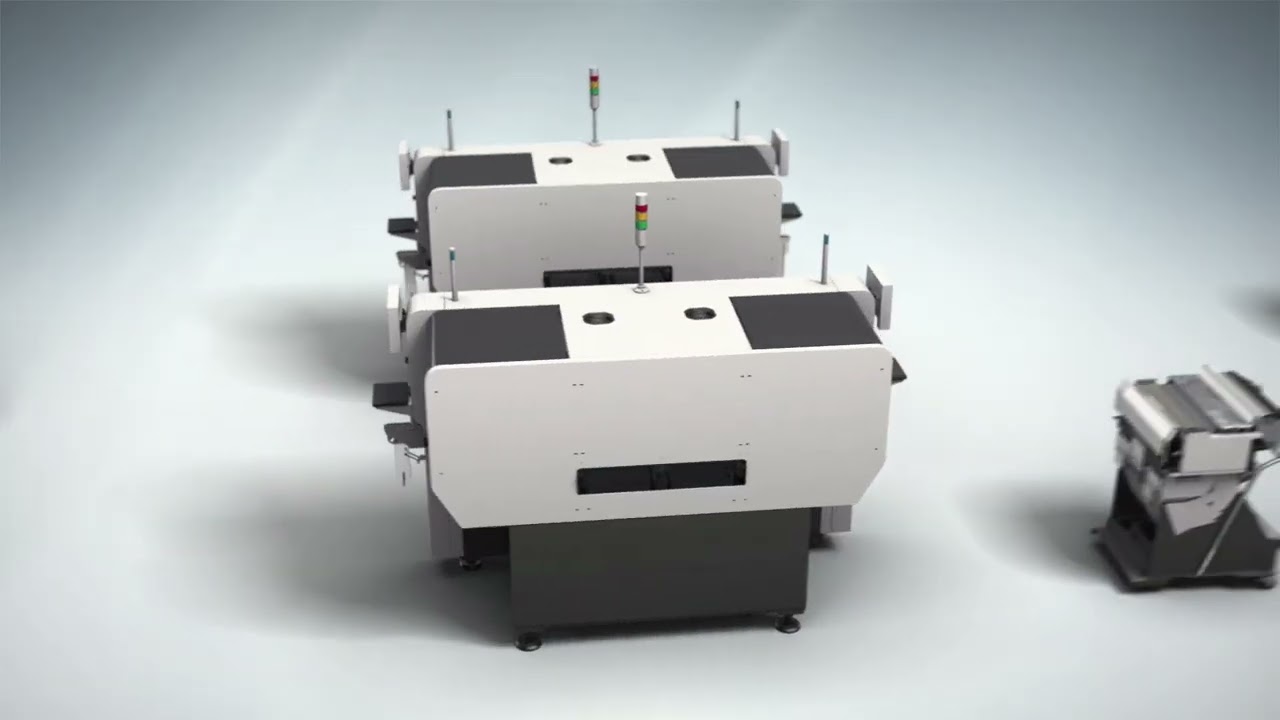

Hanwha XM520 High Speed SMT Pick and Place Machine
Автор: Elite 7 Installations Ltd.
Загружено: 2022-07-29
Просмотров: 1976
Описание:
New for 2023 is the XM520 Pick and Place Machine.
Boasting a high optimum speed of 100'000cph and highly flexible.
On the smaller end, the XM520 can place 0.2mm x 0.1mm components which demands high repeatable accuracy which is ±22 μm @ Cpk ≥ 1.0
Don't get that confused with 0201 components, their size is 0.6mm x 0.3mm.
On the larger end, the new improved stage camera can handle components right up to 150mm length and 15mm tall.
PCB size is much improved at 625mm x 460mm and an optional extra large size is available up to 1200mm x 590mm.
The XM520 has it all, speed, flexibility, ease of use and of course Elite 7 Installations always there to support you!
Contact us for more information [email protected]
