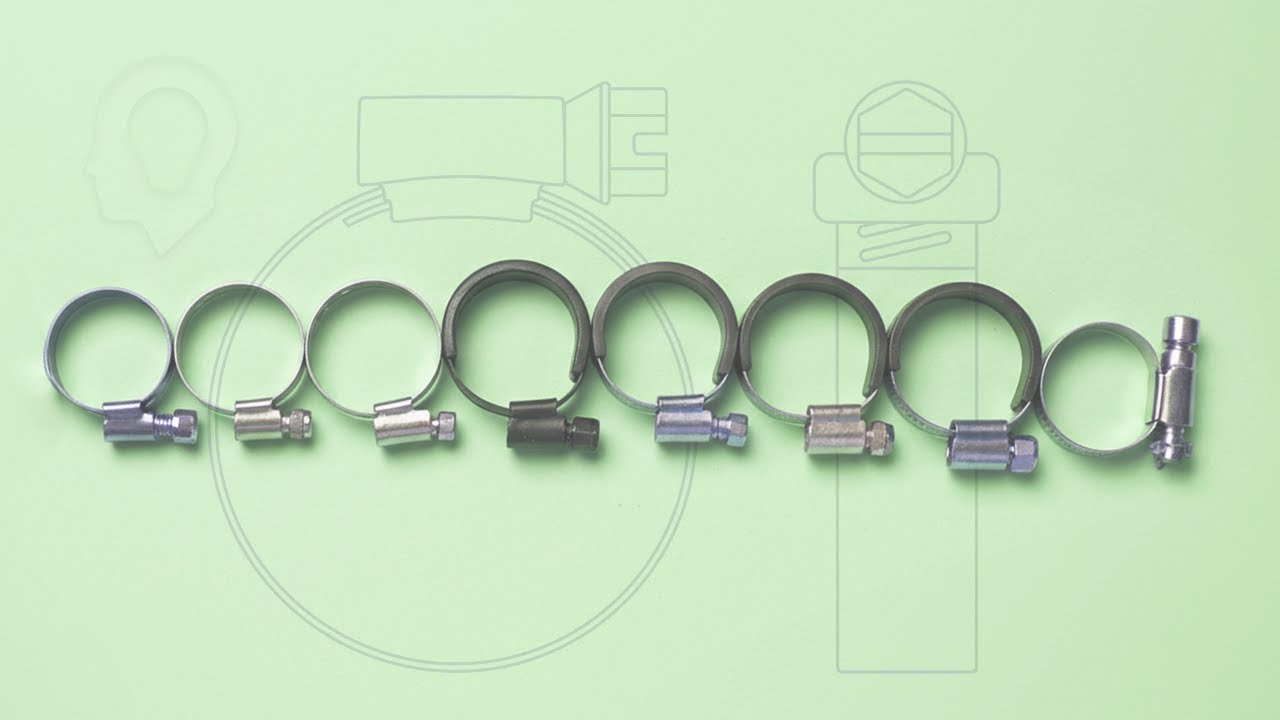

The Hose Clamp Story

Описание: ▶️ Visit https://brilliant.org/NewMind to get a 30-day free trial + 20% off your annual subscription

From ancient Greece to modern automobiles, the humble hose clamp has played a crucial role in engineering and industry. The hose clamp's journey reflects the broader evolution of engineering and manufacturing. From simple hammered rings to complex plastic fittings, this essential component has adapted to meet the changing needs of industry. While modern automotive design may be moving away from traditional metal clamps, the ingenuity behind their development continues to influence engineering solutions across various fields.

Ancient Beginnings:
500 BC: Greeks use hammered copper rings to secure oxhide and ox intestine hoses for water transport and firefighting
Chinese create bamboo pipes for natural gas, sealed with plant fibers
1st century AD: Soft metal rings, leather straps, and plant fiber wrappings become common for sealing various fluids

Industrial Revolution and Beyond:
1821: First rubber-lined, cotton-webbed "gum hose" patented
1844: Charles Goodyear patents vulcanization, revolutionizing rubber products
Early clamping methods: Threaded brass couplers, riveting, wire binding
1880s: Introduction of the "hosebinder" or Cotter Type Hose Clamp, the first modern hose clamp

The Birth of the Worm Drive Clamp:
1896: Knut Edwin Bergström patents the worm-drive clamp (Jubilee Clip)
Simple, adaptable design allows for higher clamping forces and easy adjustment
Bergström founds ABA to manufacture his invention, creating a new product category

Specialized Clamps for New Industries:
Early 20th century: Aviation and automobile industries drive development of new clamp variants
Type B and D clamps: Flat band body with machine screw and embedded square nut for higher pressure applications
Type C (tower) clamps: Bridge structure for limited access areas

World War II and Cost Reduction:
Type A (wire) clamps: Formed wire design reduces material and manufacturing costs
Lightweight but prone to hose damage and improper installation

High-Performance Clamps:
1940s: V-band (Marman) clamps developed for aerospace applications
Used to secure atomic bombs in B-29 bombers
Provide quick assembly/disassembly and uniform sealing under extreme conditions
Later adopted in automotive, food, and pharmaceutical industries

T-Bolt Clamps:
1950s: T-bolt mechanism adapted for general-purpose hose clamps
Popularized in the 1970s by Breeze Industrial Products Corporation
Offers up to four times the clamping force of traditional clamps

Spring Hose Clamps:
Post-WWII: Automotive industry seeks further cost reduction
Type E clamps provide constant tension and self-adjustment
Ideal for engine coolant and vacuum connections

Ear Clamps:
1951: Hans Oetiker invents the single-ear clamp
Quick installation, consistent tension, and low profile
Suitable for high-pressure applications and tamper detection
Variations include two-ear and stepless ear clamps

The Plastic Revolution:
1990s: Automotive industry shifts towards plastic fittings
Driven by cost savings, design flexibility, and assembly optimization
High-performance thermoplastics used for strength and temperature resistance
Integrated features like sensors and quick-connect mechanisms
Concerns about long-term durability and environmental impact
