Solidworks Animation - Metal Cylinder Transfer
Автор: Warkop 3D Design
Загружено: 2020-03-21
Просмотров: 3790
Описание:
#conveyor #automation #mechanicaldesign

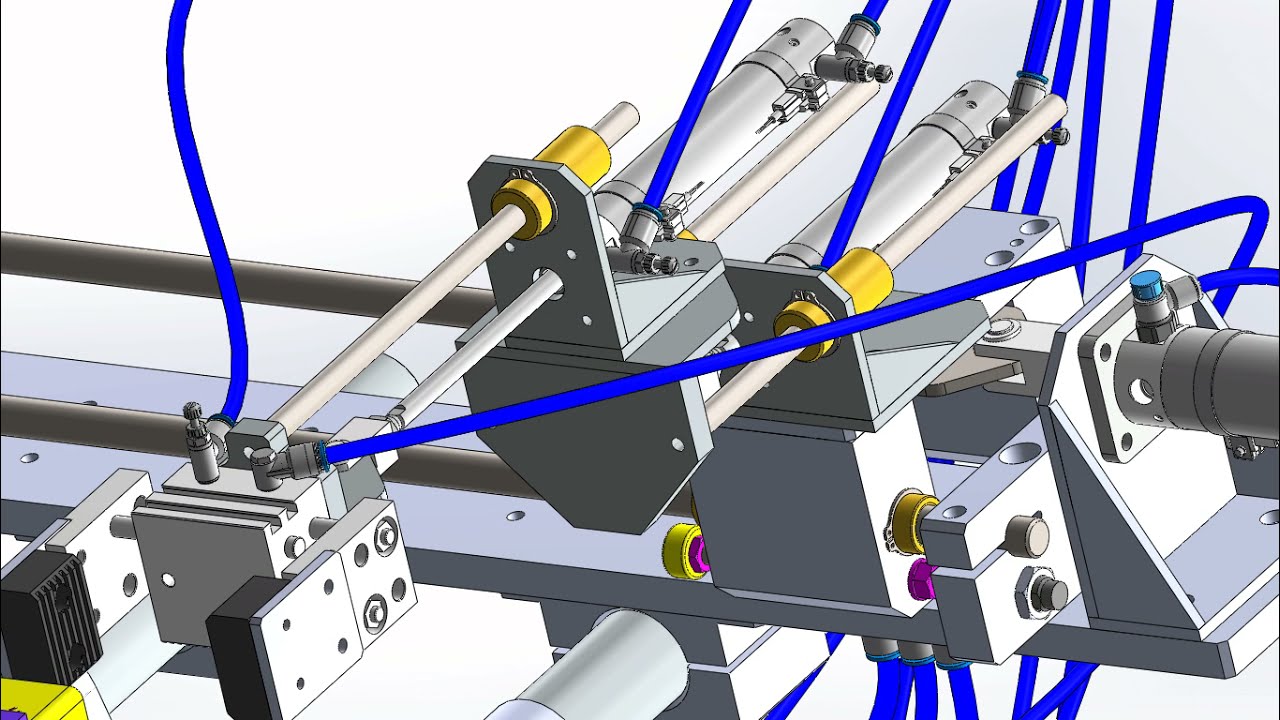

Transfer mechanism for metal cylinders between small conveyor. Conveyor is using servo, so it could do stop and go movement. Metal cylinder transfer is using pneumatic pick and place equipped with linear guide to maintain the parallel accuracy. Gripper is using 3 - Jaw Gripper with mechanical finger (previous design) to pickup cylindrical or triangular object. Modelled & animated in Solidworks.
------------------------
3D model : https://grabcad.com/library/metal-cyl...
------------------------
