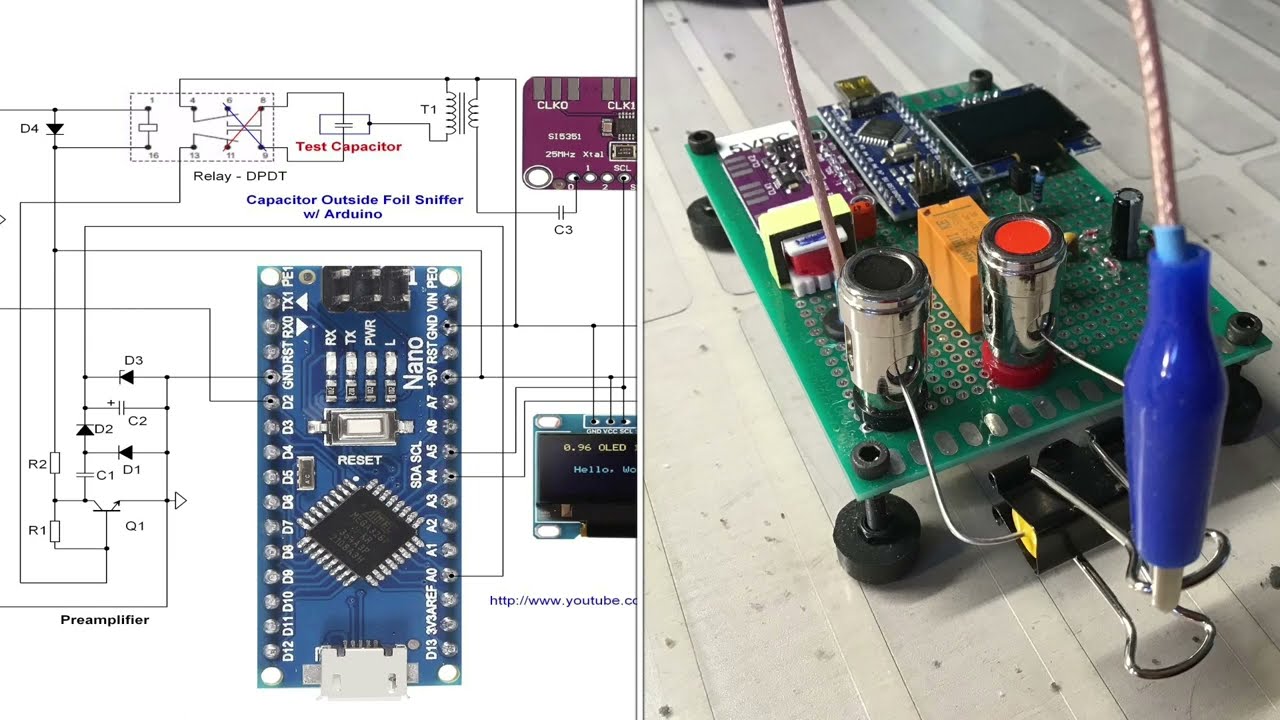

Capacitor Outside Foil Sniffer w/ Arduino Version 1.0
Автор: RestoreOldRadios
Загружено: 2022-03-26
Просмотров: 2529
Описание:
A simple circuit using Arduino (and a few other parts) to identify the outside foil or shield of a capacitor for those that don't have an oscilloscope or other means.
You can download the schematic, BOM & sketch at:
https://drive.google.com/drive/folder...
Some other similar circuits I've designed and built in the past:
• Capacitor Outside Foil Identification
----------------------------------------------------------------------
UPDATE V2.0 to V2.0r:
A couple of changes to the circuit that keeps the analog inputs (A0 & A1) at 0 volts until testing takes place, which provides a more consistent result when trying to discern the outside foil of those low value capacitors. In addition to the schematic and BOM, a few tweaks to the sketch were made as well. You can download a copy of the aforementioned at the link below.
Capacitor Outside Foil Sniffer Version 2.0
https://drive.google.com/drive/folder...
---------------------------------------------------------------------
Thanks for watching and subscribing to my channel on vintage radio repair and other related circuits.
#restoreoldradios
#Arduino
