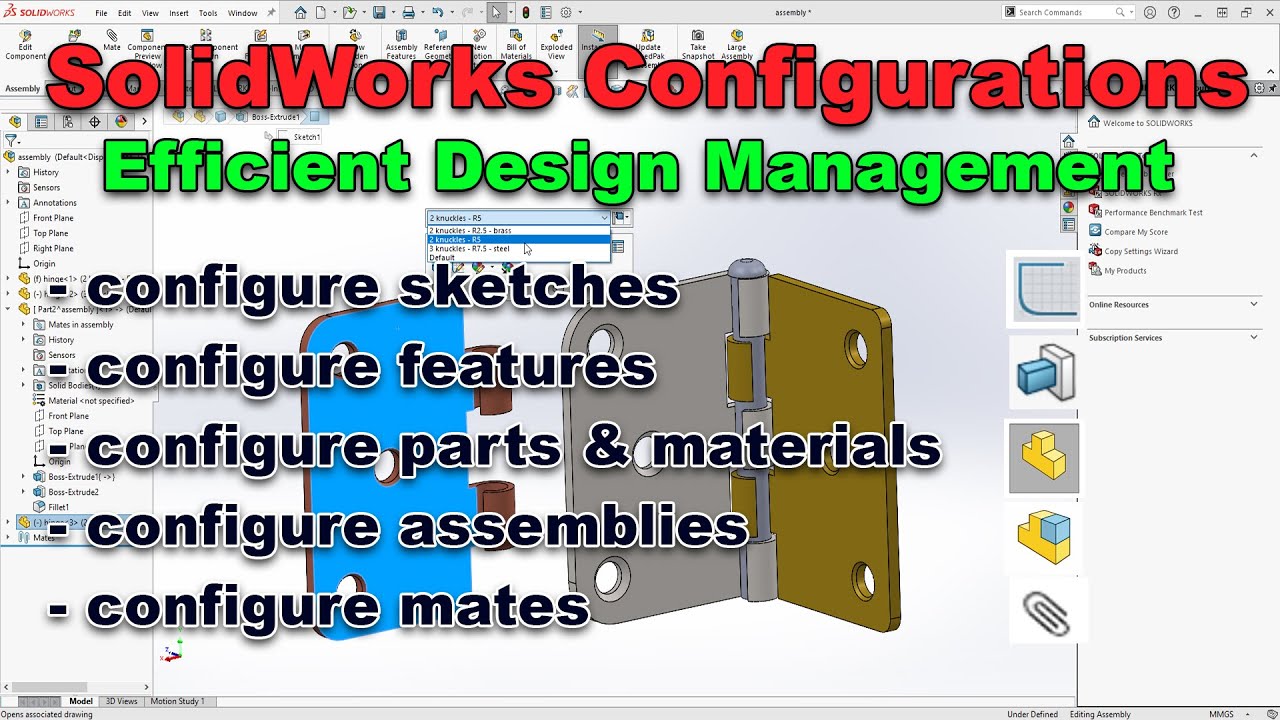

SolidWorks Configurations - Efficient Design Management

Описание: In *SolidWorks*, a configuration is a representation of a part or assembly that captures a specific set of design parameters. It allows you to maintain multiple versions of a design within a single file, without having to create separate files for each variation. Configurations are particularly useful for managing different dimensions, features, and properties of a part or assembly.


Here are some of the key benefits of using SolidWorks configurations:
*Reduced Design Time*: Configurations can significantly reduce design time by allowing you to quickly create and modify different versions of a design without having to start from scratch.
*Efficient Design Management*: Configurations help in organizing and managing complex designs by keeping multiple variations of a design within a single file, making it easier to track changes and maintain design consistency.
*Simplified Design Communication*: Configurations facilitate effective communication with colleagues and clients by providing a clear representation of different design options.
*Enhanced Design Flexibility*: Configurations enable you to explore a wider range of design possibilities by easily switching between different variations and experimenting with different parameters.
*Automated Design Generation*: Configurations can be linked to design tables, allowing you to automate the creation of multiple design variations based on a set of input parameters.


Overall, SolidWorks configurations are a powerful tool for managing and exploring design variations, enabling engineers and designers to create more efficient and effective designs.


A butt hinge is a simple type of hinge that allows two pieces of material to rotate about a fixed pin. Butt hinges are commonly used in doors, cabinets, and other pieces of furniture.

Reference for the butt hinge
https://www.iqsdirectory.com/articles...


Video section
Introduction 00:00
Design default hinge 01:00
Configure variant 1 07:40
Configure variant 2 12:45
Assembly 17:45
Configure mates 21:10
Add a pin 23:36
Playlist 25:40
Outro 26:15
