Bar Bending Schedule

Описание: 🛠️ 𝗕𝗮𝗿 𝗕𝗲𝗻𝗱𝗶𝗻𝗴 𝗦𝗰𝗵𝗲𝗱𝘂𝗹𝗲 𝗙𝗼𝗿𝗺𝘂𝗹𝗮𝘀 🛠️
Welcome to this comprehensive guide on Bar Bending Schedule (BBS) formulas! 📏✨ In this video, we’ll explore the essential calculations, standard practices, and key formulas used to create a Bar Bending Schedule. Understanding these concepts is crucial for every civil engineer and contractor. Let’s dive in! 🚀🧱

═════════•°•📐 °•═════════

🔶 𝗪𝗵𝗮𝘁 𝗶𝘀 𝗮 𝗕𝗮𝗿 𝗕𝗲𝗻𝗱𝗶𝗻𝗴 𝗦𝗰𝗵𝗲𝗱𝘂𝗹𝗲? 🔶
✨ The Bar Bending Schedule (BBS) is a detailed list of reinforcement bars with information about their size, shape, length, and quantity required for construction. It helps ensure accurate estimation and efficient management of steel reinforcement.

🔸 𝗜𝗺𝗽𝗼𝗿𝘁𝗮𝗻𝗰𝗲 𝗼𝗳 𝗕𝗮𝗿 𝗕𝗲𝗻𝗱𝗶𝗻𝗴 𝗦𝗰𝗵𝗲𝗱𝘂𝗹𝗲 🔸
📌 Accurate Estimation: Provides precise quantities and dimensions of steel required.
📌 Cost Efficiency: Minimizes wastage and helps in budgeting materials effectively.
📌 Time Management: Speeds up construction activities with organized planning.

═════════•°•🔧 °•═════════

🔹 𝗞𝗲𝘆 𝗧𝗲𝗿𝗺𝘀 𝗶𝗻 𝗕𝗮𝗿 𝗕𝗲𝗻𝗱𝗶𝗻𝗴 𝗦𝗰𝗵𝗲𝗱𝘂𝗹𝗲 🔹
✨ Before diving into the formulas, let's understand some basic terms used in BBS:
📌 Straight Length: Length of a bar without any bends.
📌 Bend Deduction: Reduction in length due to bending, usually measured in diameters.
📌 Development Length: Extra length of bar provided to make a secure bond with concrete.
📌 Hook Length: Additional length at the end of bars to secure them in concrete.

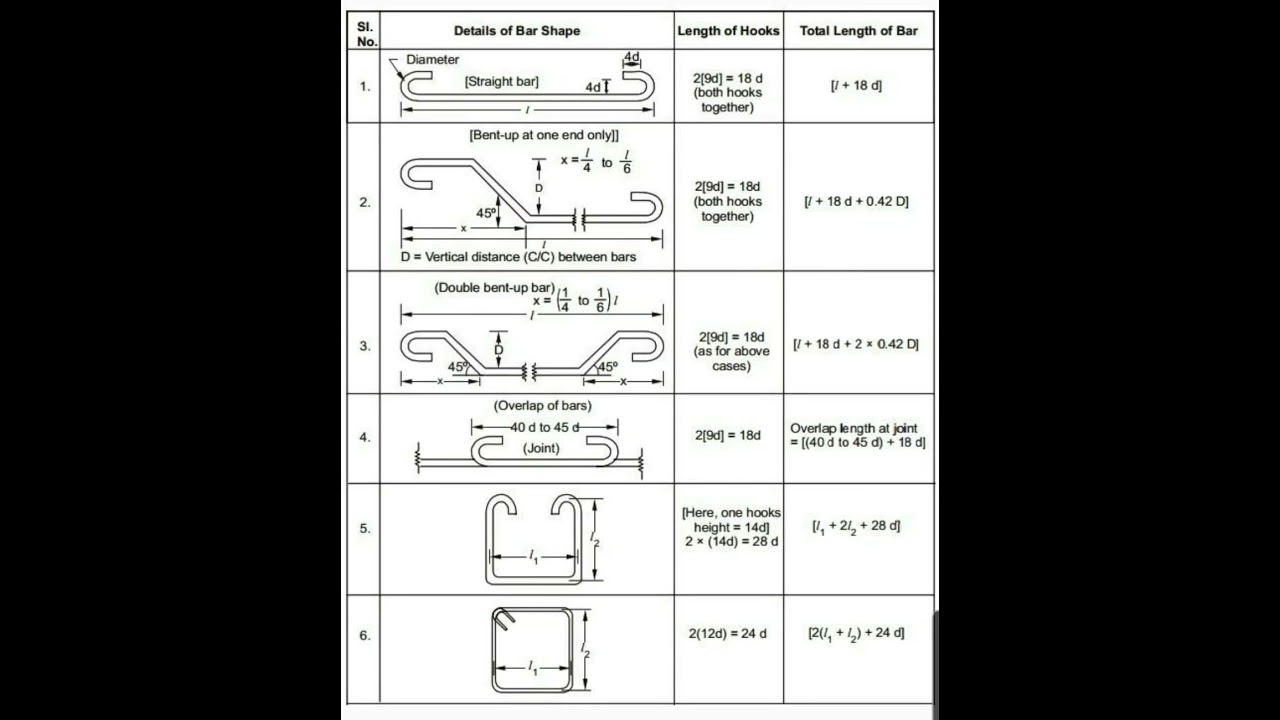

🔸 𝗙𝗼𝗿𝗺𝘂𝗹𝗮 𝗳𝗼𝗿 𝗕𝗮𝗿 𝗟𝗲𝗻𝗴𝘁𝗵 🔸
📌 Straight Bar Length = Total length as per drawing
📌 Bent Bar Length = Sum of all straight lengths + Bends (considering bend allowances)
📌 Hook Length = 9d (for a 90° bend) and 16d (for a 180° bend), where d is the bar diameter

═════════•°•📏 °•═════════

🔶 𝗖𝗮𝗹𝗰𝘂𝗹𝗮𝘁𝗶𝗼𝗻 𝗙𝗼𝗿𝗺𝘂𝗹𝗮𝘀 𝗳𝗼𝗿 𝗕𝗮𝗿 𝗕𝗲𝗻𝗱𝗶𝗻𝗴 🔶
✨ Let’s go through some common formulas used in BBS calculations:

🔸 𝟵𝟬° 𝗕𝗲𝗻𝗱 🔸
📌 Formula: Length of bend = 2 × π × R / 4, where R is the internal radius of the bend.
📌 Deduction for 90° Bend = 1d (where d is the bar diameter)

🔸 𝟭𝟴𝟬° 𝗕𝗲𝗻𝗱 🔸
📌 Formula: Length of bend = π × R, where R is the internal radius of the bend.
📌 Deduction for 180° Bend = 2d

🔸 𝗦𝘁𝗶𝗿𝗿𝘂𝗽 𝗟𝗲𝗻𝗴𝘁𝗵 𝗖𝗮𝗹𝗰𝘂𝗹𝗮𝘁𝗶𝗼𝗻 🔸
📌 Formula: Perimeter of stirrup + Total Hook Lengths - Bend Deductions
✨ For a rectangular stirrup:
Total Length = 2 × (L + B) + 2 × Hooks - 4d (for 4 corners with 90° bends)
Where L = Length, B = Breadth

═════════•°•⚙️ °•═════════

🔹 𝗕𝗕𝗦 𝗖𝗼𝗹𝘂𝗺𝗻𝘀 𝗮𝗻𝗱 𝗗𝗲𝘁𝗮𝗶𝗹𝘀 🔹
✨ A standard BBS includes these columns:
📌 Bar Mark: Unique identification number for each bar.
📌 Diameter: Thickness of the bar (in mm).
📌 Shape Code: Type of bar shape (like straight, L-shape, U-shape).
📌 Cutting Length: Length of bar after considering bends and hooks.
📌 Quantity: Total number of bars required.
📌 Weight: Weight per meter based on diameter (using the formula: Weight (kg/m) = d² / 162).

🔸 𝗕𝗮𝗿 𝗖𝘂𝘁𝘁𝗶𝗻𝗴 𝗟𝗲𝗻𝗴𝘁𝗵 𝗖𝗮𝗹𝗰𝘂𝗹𝗮𝘁𝗶𝗼𝗻 🔸
Total Cutting Length = (Straight Length) + (Hook Length) + (Bend Length)
📌 Ensure that all allowances and deductions are considered based on bending standards.

═════════•°•💡 °•═════════

🔹 𝗧𝗶𝗽𝘀 𝗳𝗼𝗿 𝗔𝗰𝗰𝘂𝗿𝗮𝘁𝗲 𝗕𝗕𝗦 🔹
✨ To create an accurate BBS, follow these tips:
📌 Understand the Drawing: Carefully study structural drawings before preparing BBS.
📌 Use a Standard Format: Follow standard BBS formats to avoid confusion on-site.
📌 Double-Check Formulas: Verify each calculation to eliminate errors.
📌 Include Reinforcement Details: Make sure to include all bar details such as lap lengths, cover, and spacing.

🔸 𝗔𝗱𝗱𝗶𝘁𝗶𝗼𝗻𝗮𝗹 𝗣𝗼𝗶𝗻𝘁𝘀 𝗳𝗼𝗿 𝗘𝗳𝗳𝗶𝗰𝗶𝗲𝗻𝗰𝘆 🔸
1️⃣ Minimize Wastage: Plan bar lengths efficiently to reduce scrap.
2️⃣ Label Clearly: Mark each bar for easy identification during construction.
3️⃣ Maintain Quality: Ensure the use of high-quality steel for reinforcement.

═════════•°•📐 °•═════════
