YODER MACHINERY SALES

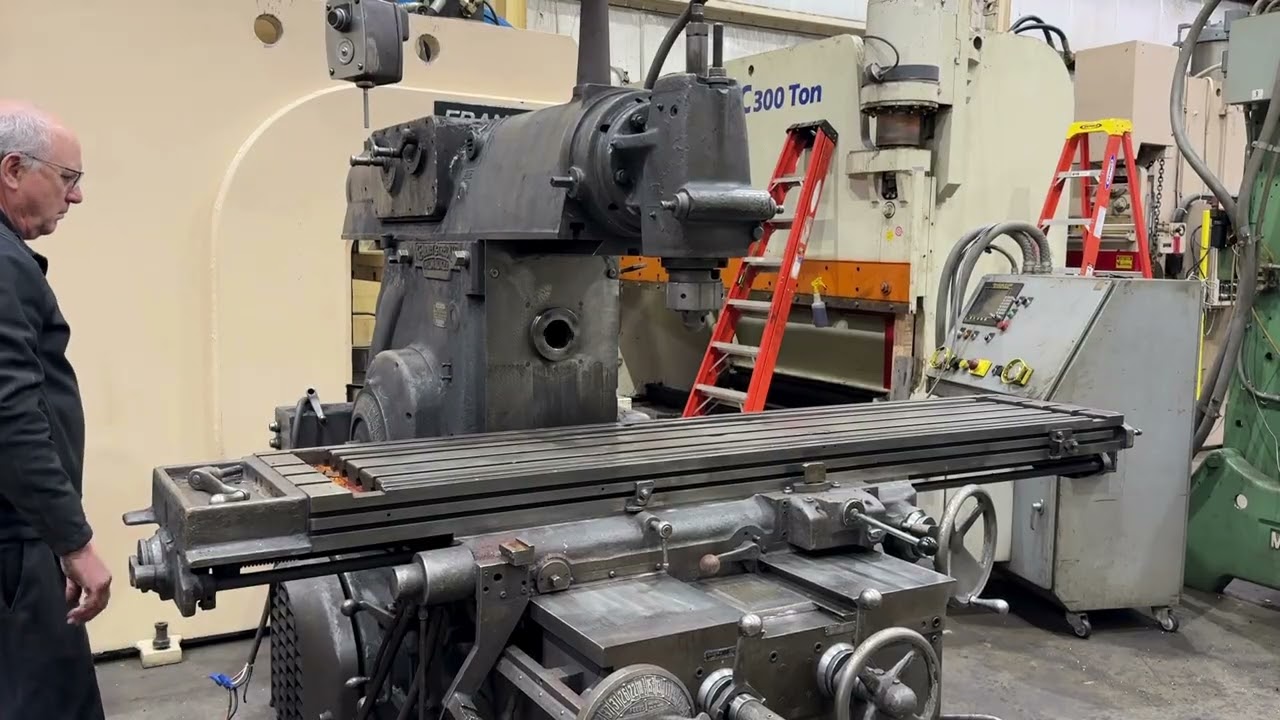

MODEL ........................... 420TF-17
MACHINE EQUIPPED WITH TOOLMAKERS VERTICAL HEAD ON OVERARM
TABLE AREA (T-SLOTTED) .......... 80" X 17"
LONGITUDINAL TABLE TRAVEL ....... 42"
CROSS TABLE TRAVEL .............. 14"
VERTICAL TABLE TRAVEL ........... 18"
MAIN SPINDLE SPEEDS ............. (24) 15 TO 1500 RPM
TOOLMAKER'S OVERARM SPEEDS ...... (8) 50 TO 800 RPM
LONGITUDINAL & CROSS FEEDS ...... (32) 3/8 TO 90 IPM
VERTICAL FEEDS .................. (32) 1/8 TO 30 IPM
RAPID TRAVERSE .................. 150 IPM
TAPER IN SPINDLE ................ #50 NS
DISTANCE SPINDLE TO TABLE ....... 0" MINIMUM TO 18" MAXIMUM
TABLE WAYS ...................... HARDENED & REPLACEABLE
COOLANT ......................... YES
MAIN SPINDLE MOTOR .............. 15 HORSEPOWER
OVERARM SPINDLE MOTOR ........... 5 HORSEPOWER
CONTACT US AT:
[email protected]
800-622-4463
CHECK US OUT ON THE WEB:
WWW.YODERMACHINERY.COM
