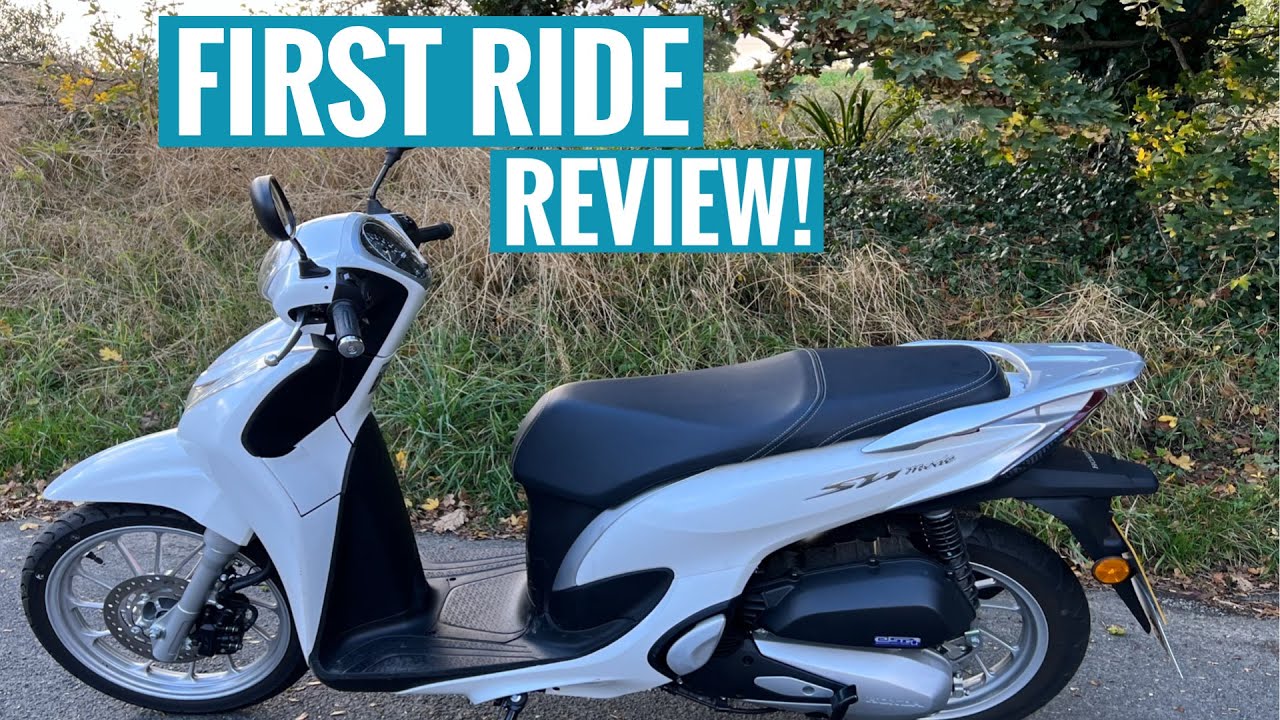

Honda SH Mode 125 (2020) Exterior and Interior

Описание: 2020 Honda SH Mode 125 motorcycle seen from outside and inside. The vehicle has single-cylinder, 4-stroke, 2-valve SOHC, liquid cooled, EURO 4, 125 cm³ engine. Bore x Stroke 52.4 x 57.9 mm. Compression ratio 11:1. Max power 8.4 kW (11.4 hp) at 8,500 rpm. Max torque 12 Nm at 5,000 rpm. Oil tank 0.9 liters. Fuel system PGM-FI electronic injection. Fuel tank 5.5 liters. Fuel consumption is 50 km/l with system Start&Stop. Electric start. Battery is 12V-5Ah. Alternator 262 W. Clutch is dry centrifugal, automatic. Transmission is V-Matic continuously changing ratio. Final drive by V-belt. Frame is tubular steel with lower back beam. Length 1,930 mm. Width 665 mm. Height 1,105 mm. Wheelbase 1,305 mm. Inclination angle 27°. Seat height 765 mm. Trail 68 mm. Ground clearance 145 mm. Weight with full fuel tank 116 kg. Front suspension is hydraulic telescopic fork. Rear suspension is fork with hydraulic shock absorber. Front wheel is in light alloy with 5 split spokes.. Rear wheel in light alloy with 5 split spokes.. Front wheel size 16M/C x MT 2.15. Rear wheel size 14M/C x MT2.75. Front tire is 80/90-16M/C 43P. Rear tire is 100/90-14M/C 57P. Front brake is disc 220 mm, 3 pistons caliper, CBS. Rear brake is drum 130 mm, CBS. Price is 2,790.00 €.

The motorcycle was presented at EICMA 2019 - (Esposizione Internazionale Ciclo Motociclo e Accessori) - Milan, Italy, 7-10 November 2019.
