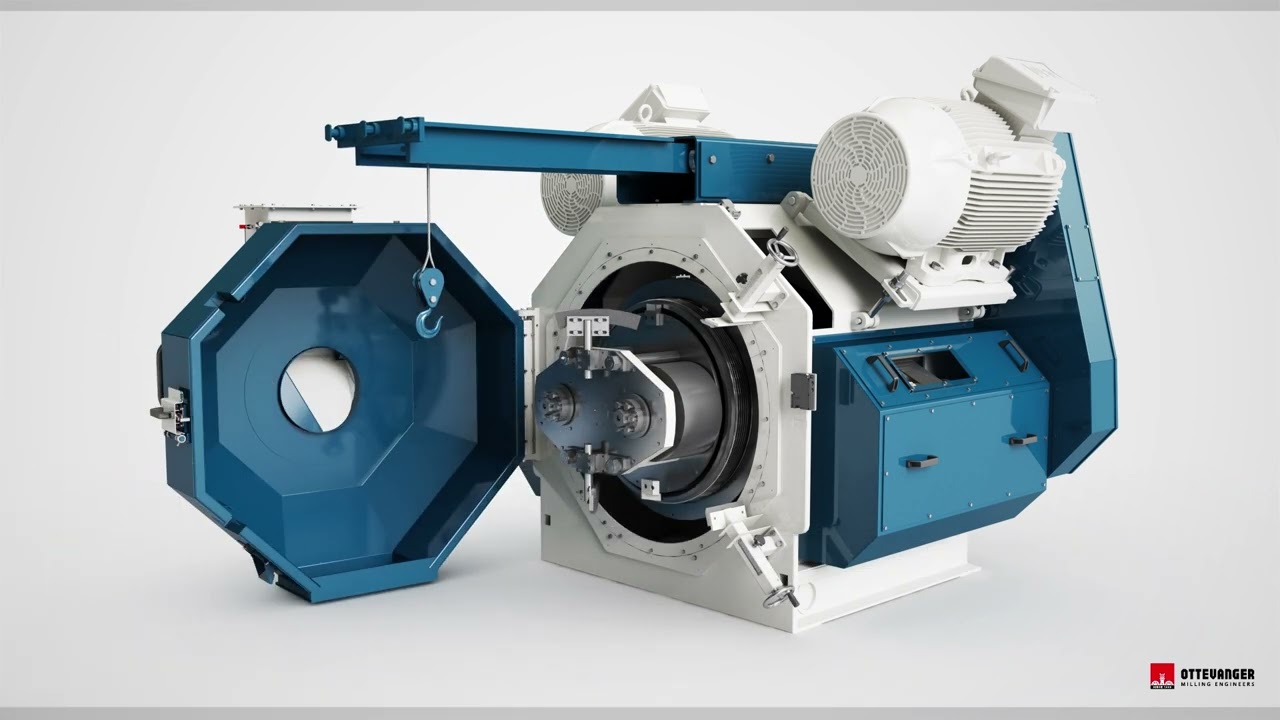

Quick Die Change: Replace Pellet Mill Dies in 10 to 12 Minutes
Автор: OttevangerMillingEngineers
Загружено: 2025-12-30
Просмотров: 38
Описание:
The Quick Die Change (QDC) System is designed to minimise pellet mill downtime by cutting die replacement time to as little as 10 to 12 minutes. Built around a robust nut and bolt mechanism, it enables one operator to remove and install the die safely, without heavy manual work.
A foot operated pneumatic turning gear supports controlled, efficient handling during the exchange process. The precision screw thread connection supports consistent die alignment, helping reduce mechanical stress and wear. This makes it easier to switch between pellet sizes on the same machine and increases overall uptime and production flexibility.
The QDC system is compatible with Progress pellet mills models 850 and 900. The package includes a die holder with an outer screw thread, a QDC nut mounted on the die, an intermediate ring with six pressure release bolts for safe installation, a limit switch for automatic motor cut off, and an optional hoisting tool for safe die handling and storage.
