300 Kva Servo Voltage Stabilizer | Available on IndiaMART
Автор: SECURE POWER SYSTEM
Загружено: 2025-12-27
Просмотров: 14
Описание:

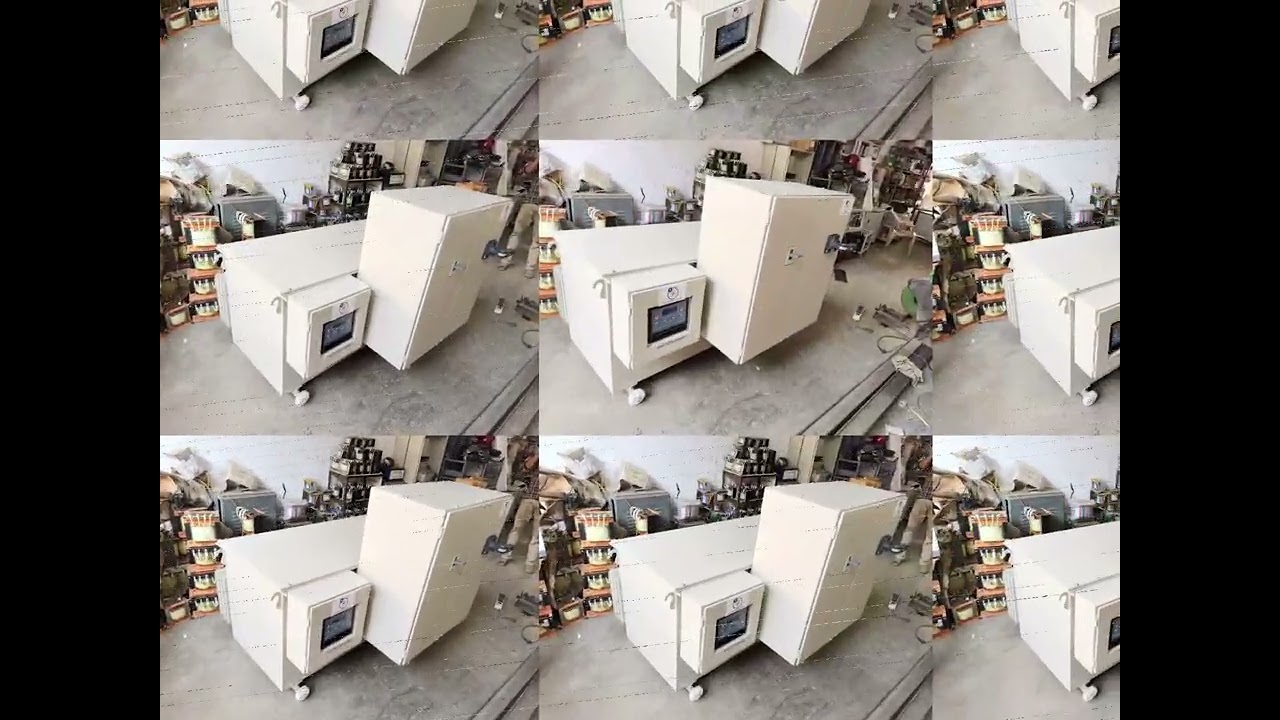

300 Kva Servo Voltage Stabilizer
For more details click the link below:
https://www.indiamart.com/proddetail/300-k...
Product Details:
300 Kva Servo Voltage Stabilizer
Servo Voltage Corrector Technical Specifications
1 KVA to 30KVA (SinglePhase)
6KVA to 5000KVA
(ThreePhase)
Phase -Single PhaseThree Phase /
Servo types Unbalance Type & balance tape
Voltage Input renge
Minimum Low L-N 90v L-L 155V
maximum High L-N 350V L-L 605V
Frequency Input50Hz
Voltage Output L-N 230 V ± 1%L-L 400 V ± 1% 50HZ
Delay Output 0 - 10 sec
Over Volt Output AC L-N 250V ± 5V AC L-L 440V ± 5V
Low Volt OutputAC L-N 200V ± 5VAC L-L 346V ± 5V
Micro processor Display
Switch gear
Change over - Contactor - MCB - MCCB - ACB - SPD - Phase sequence device Relays
Protection
1) input voltage High - Low trip
2) Over Load Trip
3) neutral fall prip protection
4) Phase sequence wrong trip
5) 3 phase one phase fall trip
6) Surge Protective Devices
Cooling System Air (Cooled) / Oil Cooled
Full Load EfficiencyBetter Than 90%/95%
No Load EfficiencyLess Than 2% of Rated Load
Temperature5ºC - 50ºC
HumidityUpto 95%
Floor Mounting
Class InsulationB
Duty Cycle 24 hr. Continuous Operation
Wave Form DistortionNil True to Input
Response Time Less Than 10ms
Correction SpeedUpto 70V per sec. (Dependent on Input Voltage & Capacity)
Correction Method Step-leess Correction using Auto Variable Transformer
Suitability Suitable for all Power Factor Loads
Break Down Strength & IR300V AC for 2minutes, Greater than 50 Mega Ohms at 500V DC
Contact Details:
Kishan Mishra
1st Floor
05
Pratham Priority
B/H Vitthal Plaza
Naroda
Naroda Gam Bus Station
Ahmedabad
Gujarat
382330
