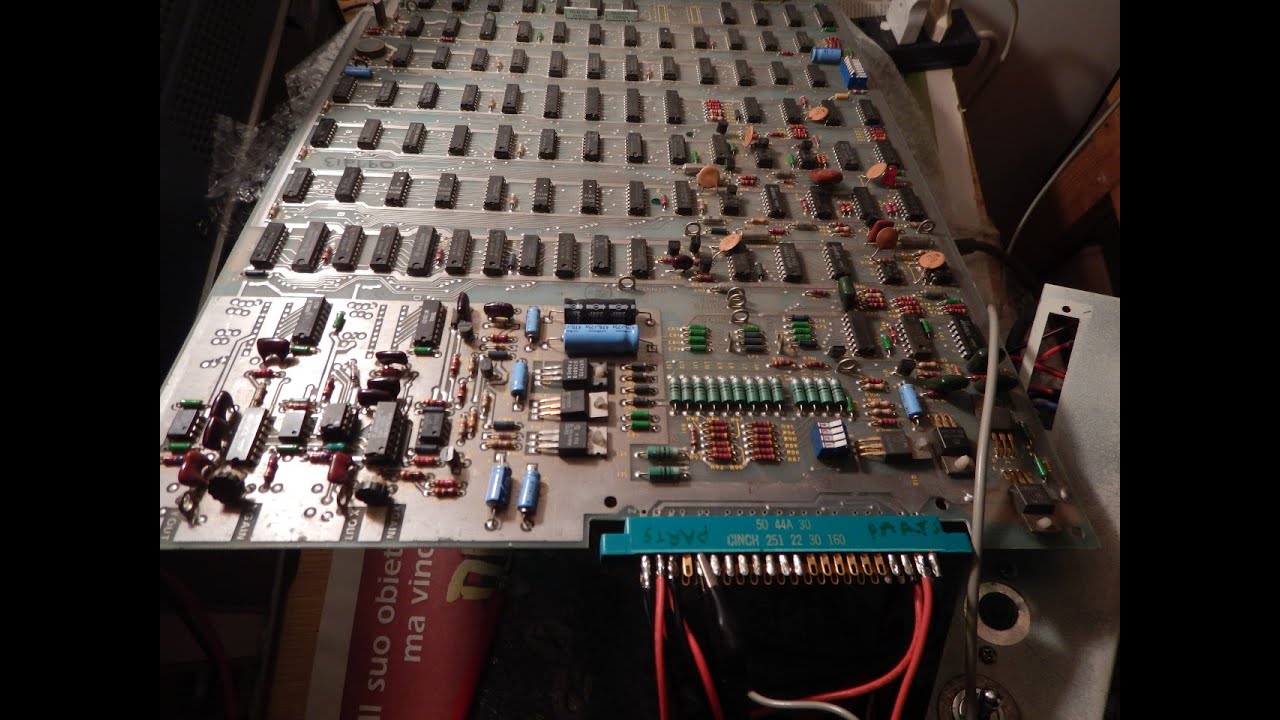

Atari Asteroids Arcade PCB repair (#2 board). Bad DAC and early revision's sound fault.
Автор: iz8dwf
Загружено: 2021-10-01
Просмотров: 1233
Описание:
Sponsor: $2 for 1-4 Layer PCBs, sign up to get $18 new user coupons: https://jlcpcb.com/DYE
This is the complete repair process of one of my Atari Asteroids Arcade PCBs.
Faults fixed:
1) X deflection missing due to bad AD561 IC
2) The previous "repair" person attempted to permanently kill the board with the help of a soldering iron (cut trace under a replaced IC, caused a fault in the vector generator state machine).
3) Rev -02 board had a mistake in the "thump" sound generator.
Timeline:
00:00 - Welcome
01:35 - First power on
02:21 - Troubleshooting the X output
05:05 - Vector generator issues
09:04 - Thump sound issues
11:36 - Rev -02 PCB errata
Related videos:
first inspection and repairs of my Asteroids PCBs:
• Atari Asteroids arcade 2xPCB repair pt.1 -...
Making a power supply and audio power amplifier for Atari Asteroids:
• Atari Asteroids Arcade: making a power sup...
Great video about Atari XY arcade vector generators
• Atari's Quadrascan Explained
Atari Asteroids related information:
https://en.wikipedia.org/wiki/Asteroi...)
http://www.andysarcade.de/asteroids.html
https://www.arcade-museum.com/game_de...
http://www.jmargolin.com/vgens/vgens.htm
