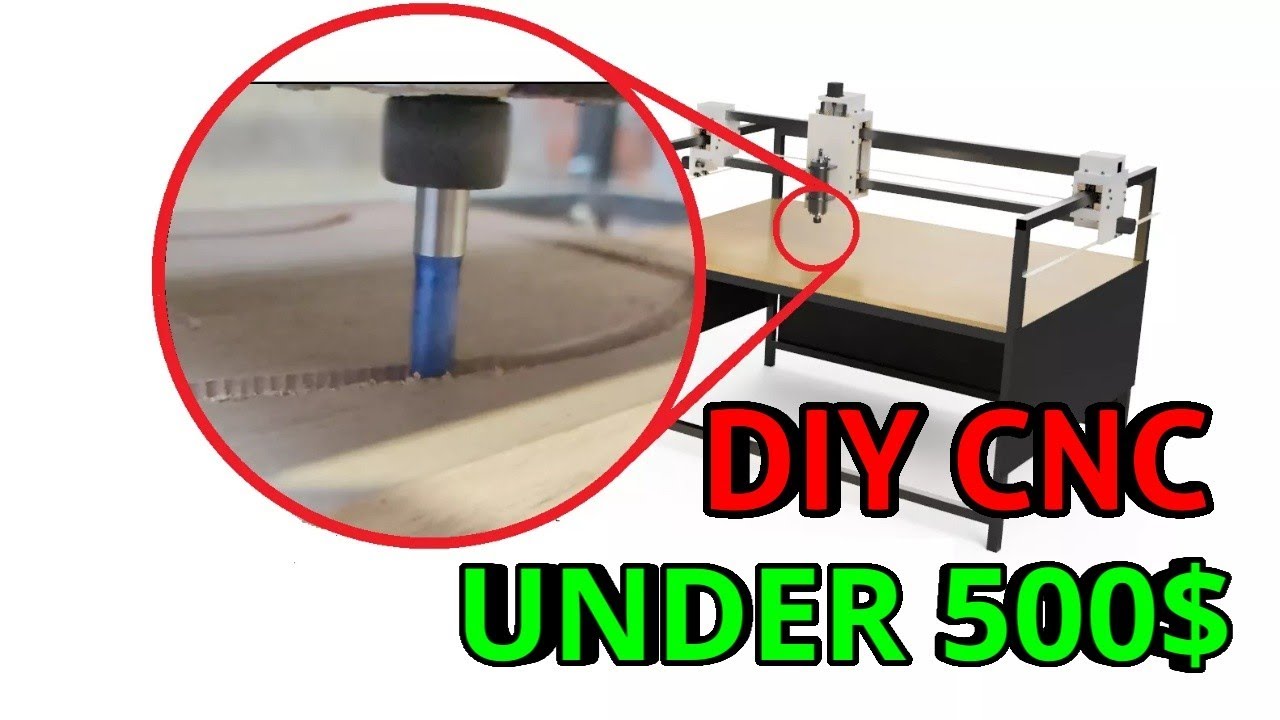

BUDGET CNC + Бесплатные планы и список деталей - DIY CNC Router менее чем за $ 500
Автор: Da Niel's
Загружено: 2021-05-06
Просмотров: 6407
Описание:
Full build video and demonstration of milling for a DIY CNC on budget. The budget for this CNC is 500$ with is achieved.
In terms of milling, I used Fusion 360 for modeling and CAM.
The CNC router consists of custom made linear rails, nema 23 stepper motors, HTD 5m 20mm width belt, and t8 lead screw for Z-axis
Build of the CNC router used in this video you can see here :
➤ • DIY CNC ROUTER BUILD
➤Subscribe now :
/ @danielsbuild
➤Free download CNC build plans and part list:
https://drive.google.com/drive/folder...
▬ Contents of this video ▬▬▬▬▬▬▬▬▬▬
0:00 - INTRO
1:37 - Custom linear rail
7:56 - Y and Z axis build
11:49 - Frame build
17:45 - Machine review
19:30 - Mill test
PART LIST:
nema 23 stepper motor
tb6600 stepper motor driver
Arduino uno + CNC grbl shield
CUSTOM X and Y rails
MGN 15 for Z axis
HTD 5M belt drive for X and Y axis
T8 screw rod for Z axis
