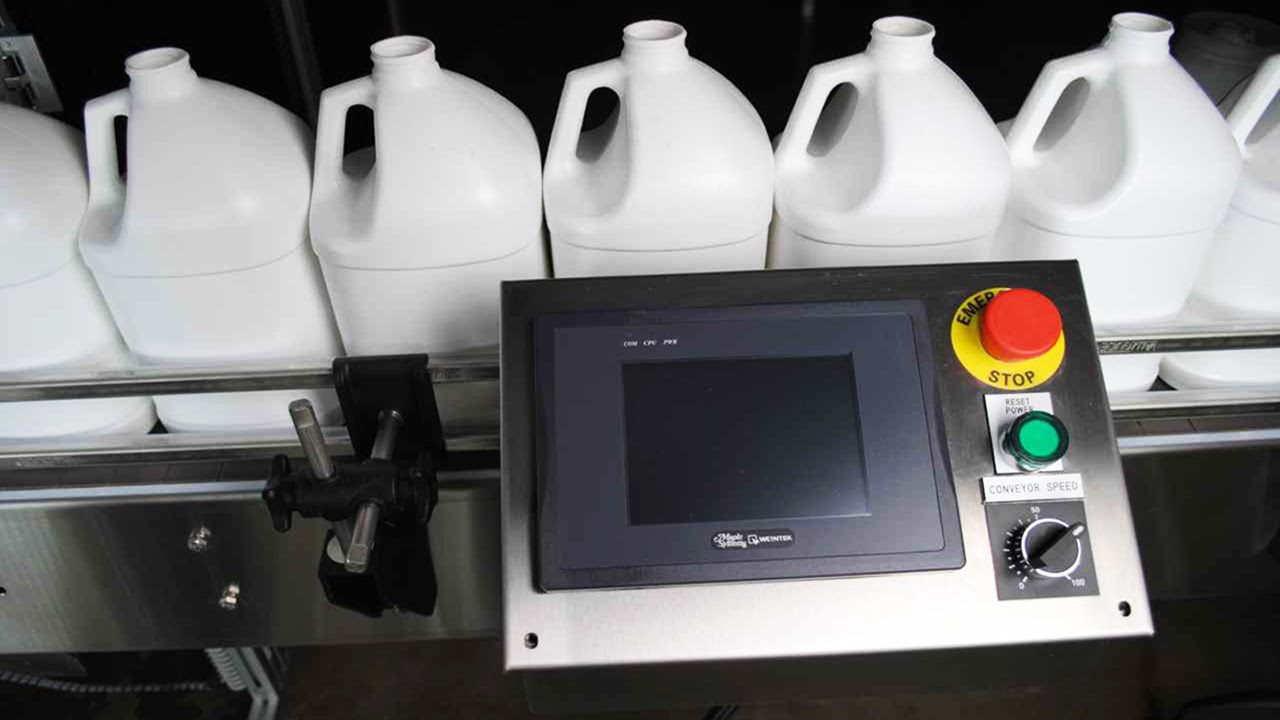

double nozzle liquid filling machine pneumatic filler with auto sensor single head screw capper line

Описание: Model YX-FC02 double nozzles liquid filling machine pneumatic filler with auto sensor single head screw capper line 2 Köpfe Füllen Verschließmaschine designed and manufactured by our engineer team in cosmetic&food&pharma making and packaging machinery is widely used in the daily chemical industry like the screw packaging process/rivet packing and such like.We as a famous manufacturer moreover can design and produce the packaging machine according to the special requirements from customers.
It is widely used for filling all kinds of fluid daily chemical industry, food, medicine, oil. For example: liquid, shampoo, shower gel, edible oil, pesticides, fruit juice, Lubricating oil, liquid soap, disinfectant, detergent,honey, not very sticky liquid or other materials.
Operating principle: By the reciprocating motion of the pistons in the material cylinders of the Filling Machine, negative pressure produces in the front chamber of the cylinder so that material could be pumped. The stroke of the cylinder is controlled by a signal valve so as to adjust filing amount and to achieve accurate filling results.
Descriptions of Complete Stainless Double Heads Liquid Filling Machine
With automatic transmission, automatic filling, no bottle no filling, bottle positioning, prevent drip, lifting filling, and other functions.Can be equipped with protective cover.
The part contacting materials is made of 304 stainless steel.
Material contact parts can be customized SS316.
can install hopper.Hopper can be installed liquid level automatic control system.
This machine is simpler and easier in operation, error correction, adjustment, cleaning and maintenance.
Basic parameter for two heads pneumatic filling+capping machine single head:
Model YX-FC02
Filling heads quantity: 2
Filling volume: 500ml-5000ml
Filling type: Linear gravity filling type more head filing
Filling capacity: 10-30BPM(1000ml) 5-8BPM5000ml)
Filling accuracy: ± 1%.
Filing machine conveyor: 5-15meter/minute.
Width of conveyor: 304mm width POM chain piece belt.
Conveyor from ground: 900mm± 25mm (adjustable).
Conveyor motor: 750W transfer converter.
Power: 2.2KW.
Voltage: 220V.
Air pressure: 0.5-0.8MPa.
Programme control: PLC+touch screen.
Top of hopper from ground: Lower 2.2meter. ≤ ± 1%.
