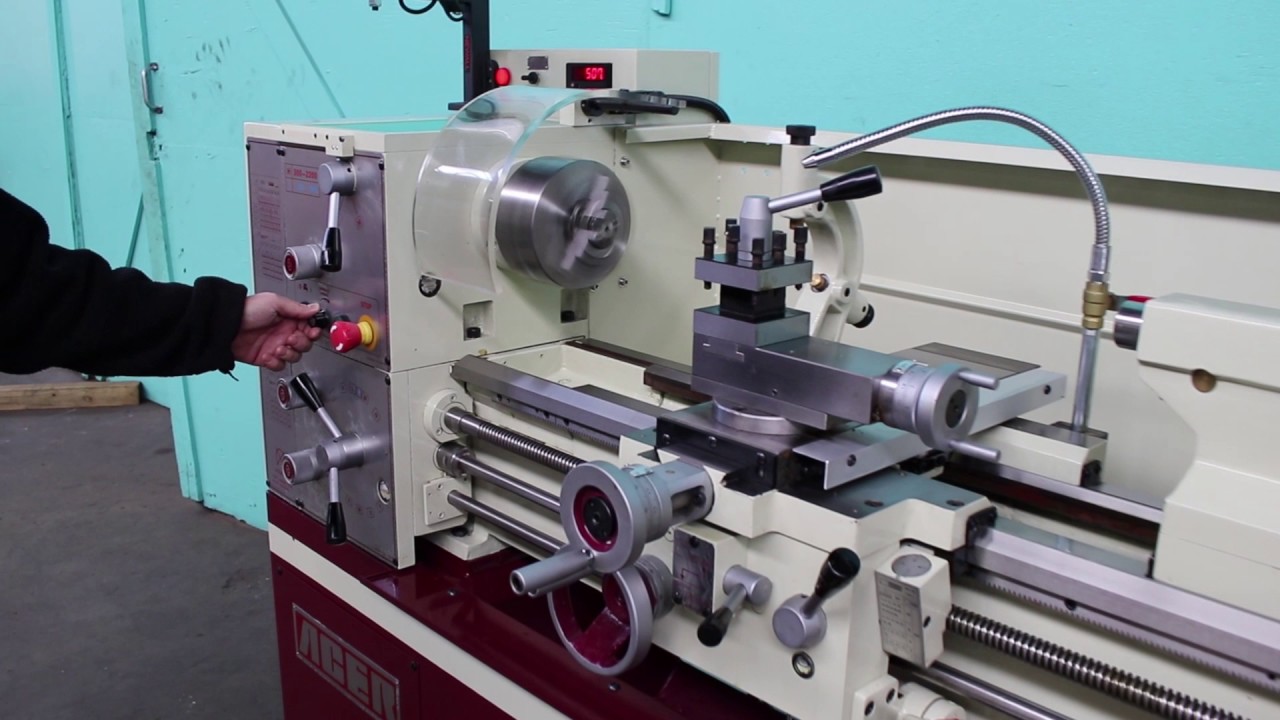

New** Acer 14" x 40" E-Lathe High Speed Precision Lathe, 1440V

Описание: New** Acer 14" x 40" E-Lathe High Speed Precision Lathe

Inventory #6697

Exclusively at Norman Machine Tool Ltd.

1-800-394-4399

https://www.NormanMachineTool.com

MODEL: 1440V

SPECIFICATIONS:

CAPACITIES:

CENTER HEIGHT: 7"

SWING OVER BED: 14"

SWING OVER GAP: 20 3/4"

SWING OVER CROSS SLIDE: 8 3/4"

DISTANCE BETWEEN CENTERS: 40"

MAIN SPINDLE:

SPINDLE NOSE: D1-4

SPINDLE BORE DIAMETER: 1 1/2"

TYPE OF SPINDLE NOSE: M.T. # 5

TAPER OF CENTER: M.T. # 3

SPINDLE SPEEDS: 36 - 2,000 RPM, INFINITE

CARRIAGE:

CROSS SLIDE TRAVEL: 8"

COMPOUND REST TRAVEL: 3 1/2"

CUTTING TOOL: 3/4" x 3/4" MAXIMUM

TAILSTOCK:

SPINDLE DIAMETER: 1 7/16"

SPINDLE TRAVEL: 4"

TAPER OF CENTER: M.T. # 3

BED LENGTH: 54"

BED WIDTH: 9"

WIDTH OF GAP: 8"

THREADING AND FEEDING:

PITCH OF LEADSCREW: 24 DIAMETER, 4 TPI

INCH PITCH THREADS: 4 - 56 TPI (32 KINDS)

RANGE OF LONGITUDINAL FEEDS: 0.0026" - 0.0368" /REVERSE

RANGE OF CROSS FEEDS: 0.0008" - 0.0122" /REVERSE

MAIN MOTOR: 3 HP

STANDARD FEATURES:

U.S. MADE "LEESON" SPINDLE MOTOR

PRECISION GROUND GEARS AND SPINDLE IN HEADSTOCK

SPINDLE MOUNTED WITH PRECISION TAPER ROLLER BEARINGS

ENCLOSED GEARBOX AND FEEDSCREW WITH BUILT IN SAFETY OVER-LOAD FRICTION CLUTCH

9" BED WIDTH WITH HARDENED AND GROUND BEDWAY

STANDARD ACCESSORIES:

(1) 6" THREE JAW CHUCK

(1) 8" FOUR JAW CHUCK

(1) STEADY REST (0.78" - 2.15")

(1) FOLLOW REST (0.78" - 1.97")

HALOGEN WORK LIGHT

TOOL BOX WITH TOOLS

CHUCK GUARD WITH EMERGENCY STOP

4-WAY TOOL POST

(1) 10" FACE PLATE

BUILT-IN COOLANT SYSTEM

FULL LENGTH SPLASH GUARD

FOOT BRAKE

MICROMETER STOP

MECHANICAL SPECIFICATIONS:

SHIPPING DIMENSIONS: 77" x 33" x 63" H

SHIPPING WEIGHT: 1,800 LBS

CONTACT US FOR AVAILABILITY AND SPECIAL PRICING

FOB FACTORY
