#DIYStudioMonitor

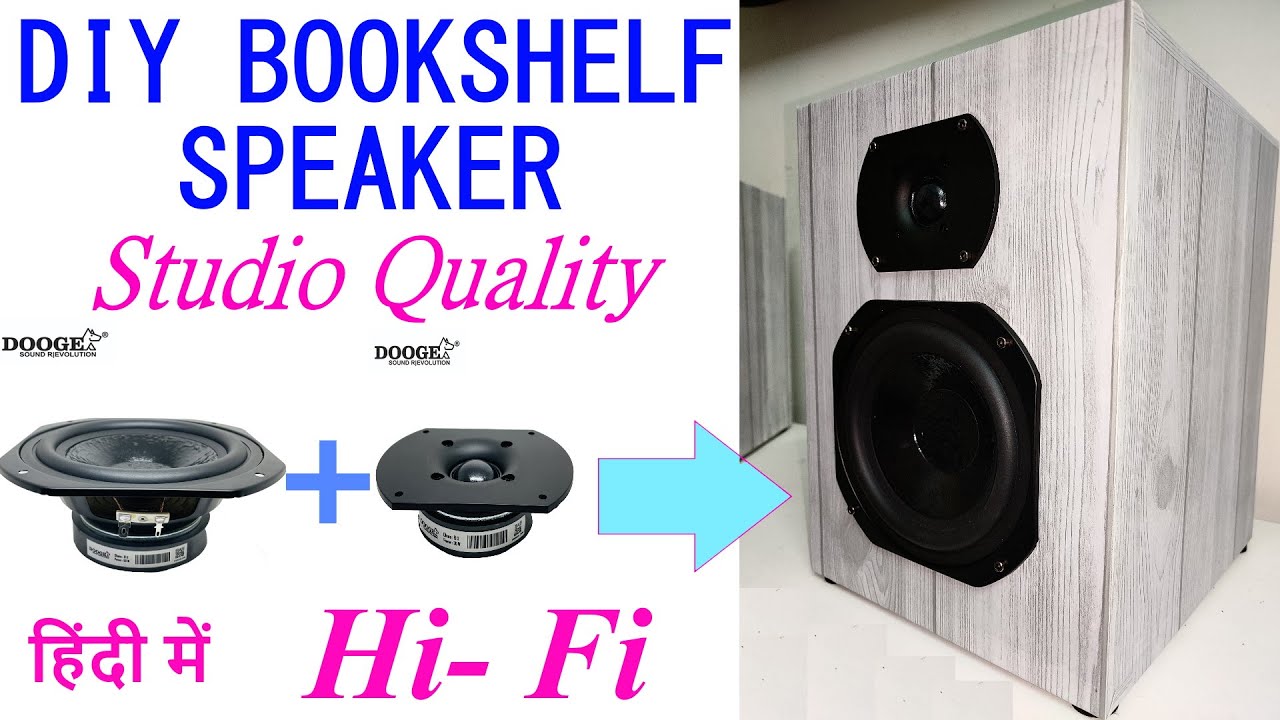

Описание: Lets make a Studio Monitor Quality Bookshelf speaker. I have used Drivers Available from Doogesound dot com for making these speakers. MDF of 18MM thickness is used in the construction of the Enclosure.
All the materials are available at https://www.doogesound.com
Use Coupon Code WHATITHINK5 for instant 5% Discount for order above Rs2999

Details of the materials used are as below :
https://www.doogesound.com/products/d...
Woofer : DE60C-02 6 inch 50 Watt
Resonance Frequency - 60.79Hz
Frequency Range(-10dB) - Fo -- 8 kHz
Xo = 8000 Hz

Tweeter :DE20C-05 SILK DOME TWEETER
https://www.doogesound.com/products/d...
Xo= Fo--20 kHz
Resonance Frequency = 1.1KHz
Frequency Range(-10dB) - Fo--20 kHz

Crossover: https://www.doogesound.com/products/d...
DE100R-07 2 WAY CROSSOVER
12dB / Oct
Intersect Frequency: 5000Hz

Port: https://www.doogesound.com/products/d...
DE36AP-10 AIR PIPE
Length : 150mm
Diameter 5.5 Cm

DE01AS-ALLEN SCREW,DE02SP-09 SPEAKER TERMINAL, DE01BP-11 BANANA PINS, DE01L-13 LEGS, DE3EF-15 EGG FOAM Etc
Dimensions of the Enclosure:
AJDESIGN CALCULATION VOLUME (QB3= 14.61 TOTAL INCLUDING PORT AND SPEAKER
( 21cm Width X 30.25cm Height X 23cm Depth )
Vb= 8.19 Fb 55.49 F3=50.41
Port dia 6 cm length 15.68 cm
Volume of all drivers, port and other are compensated.
