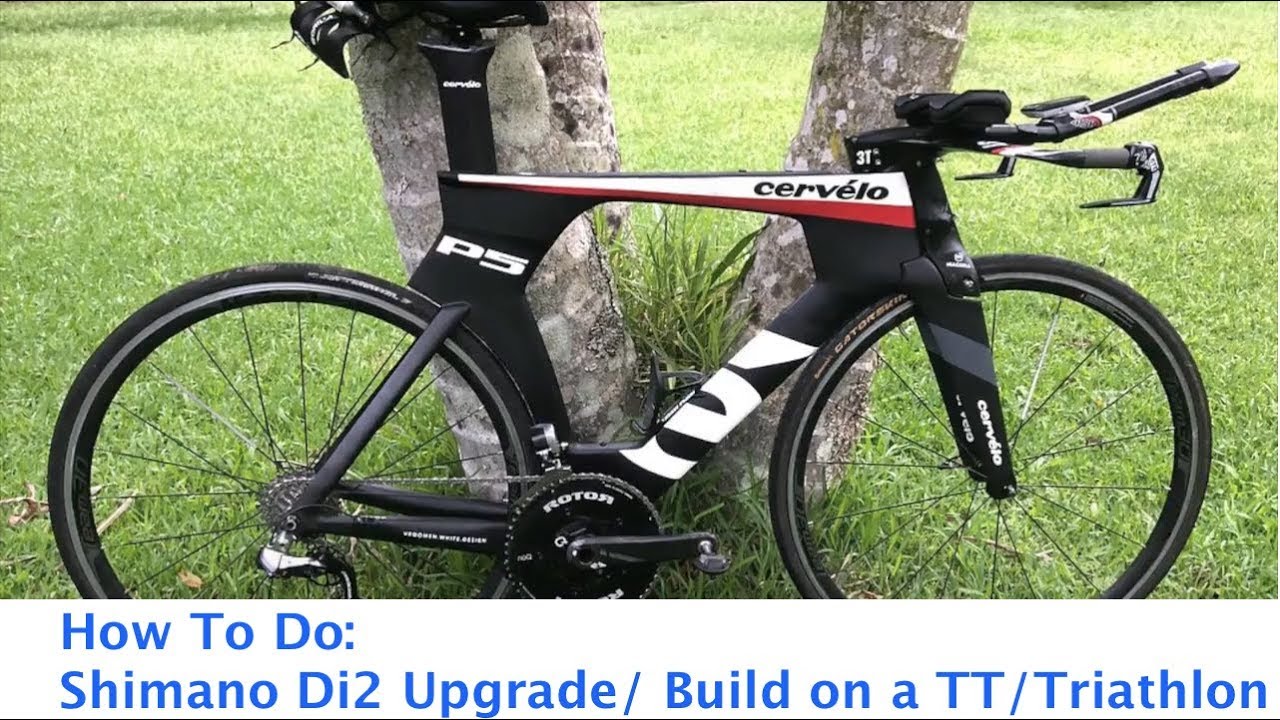

How to do Shimano Di2 Time Trial TT Triathlon Upgrade Build

Описание: How to do a Shimano Di2 build or upgrade on a Time Trial or Triathlon bike.

** = What I used

Bar End Shifters:

**• Ultegra SW-R671 Di2 Aero Bar Shifter Set 2 button
• Dura-Ace SW-9071 Di2 TT/Tri Remote Bar End Shifter Black 1 button
NEW
• SW-R9160 Switch Shift Set Dura-Ace Di2 for TT/TRI (expansion)
• SW-R9160 Switch Shift Set Dura-Ace Di2 for TT/TRI (plug)


STI Brake / Shifters

• Dura Ace ST-9071 Di2 Shifter set for TT and Tri
• Ultegra ST-6871 Di2 Shifter set for TT and Tri
NEW
• Dura-Ace Di2 ST-R9160 STI Shifter Set for TT/Triathlon Bars


Front Derailleur

**• Dura-Ace Di2 FD-9070 11 Speed Braze-on Front Derailleur
• Ultegra Di2 FD-6870 11 Speed Braze-on Front Derailleur
NEW
• Dura-Ace Di2 FD-R9150 2x11 Braze-on Front Derailleur
• Ultegra Di2 FD-R8050 2x11sp Braze-On Front Derailleur


Rear Derailleur

**• Dura-Ace Di2 9070 11 Speed Rear Derailleur
• Ultegra Di2 6870 11 Speed Rear Derailleur
NEW
• Dura-Ace Di2 RD-R9150 11sp Rear Derailleur
• Ultegra Di2 RD-R8050 11sp Rear Derailleur - short or long cage


Battery + Chargers

EXTERNAL
**•Dura-Ace Di2 SM-BTR1 Battery
**•SM-BMR1 External Battery Mount
• BM-DN100 External Battery Mount (bluetooth compatible)
-CHARGER-
**• SM-BCR1 Battery Charger Di2 without Power Cable
**• SM-BCC1-4 240V Power Cable for Di2 Battery Charger

INTERNAL
• Di2 BT-DN110 Internal Battery (bluetooth compatible)
• SM-BTR2 Internal Battery (non-bluetooth)
-CHARGER-
• SM-BCR2 Di2 Battery Charger with USB Power Cable


Junction Boxs + ANT+/Bluetooth Unit

**• Dura-Ace SM-EW90-A Di2 3 Port Junction (A)
• Dura-Ace Di2 SM-EW90-B 5-Port Time Trial Junction (A)
**• Di2 SM-JC41 Internal Wire Junction Box (B)
• EW-WU111 Di2 D-Fly E-Tube ANT+ Bluetooth Wireless Unit
• EW-WU101 Di2 D-Fly E-Tube ANT+ Bluetooth Wireless Unit


E-Tube Cables

**• EW-SD50 Di2 Electric Wire (150mm-1400mm)
I used 2 x 350 - 1 x 750 - 1 x 1200


Joey Mesa - How to make and use a Di2 wire routing tool for penny's!

   • How to make and use a Di2 wire routing too...
