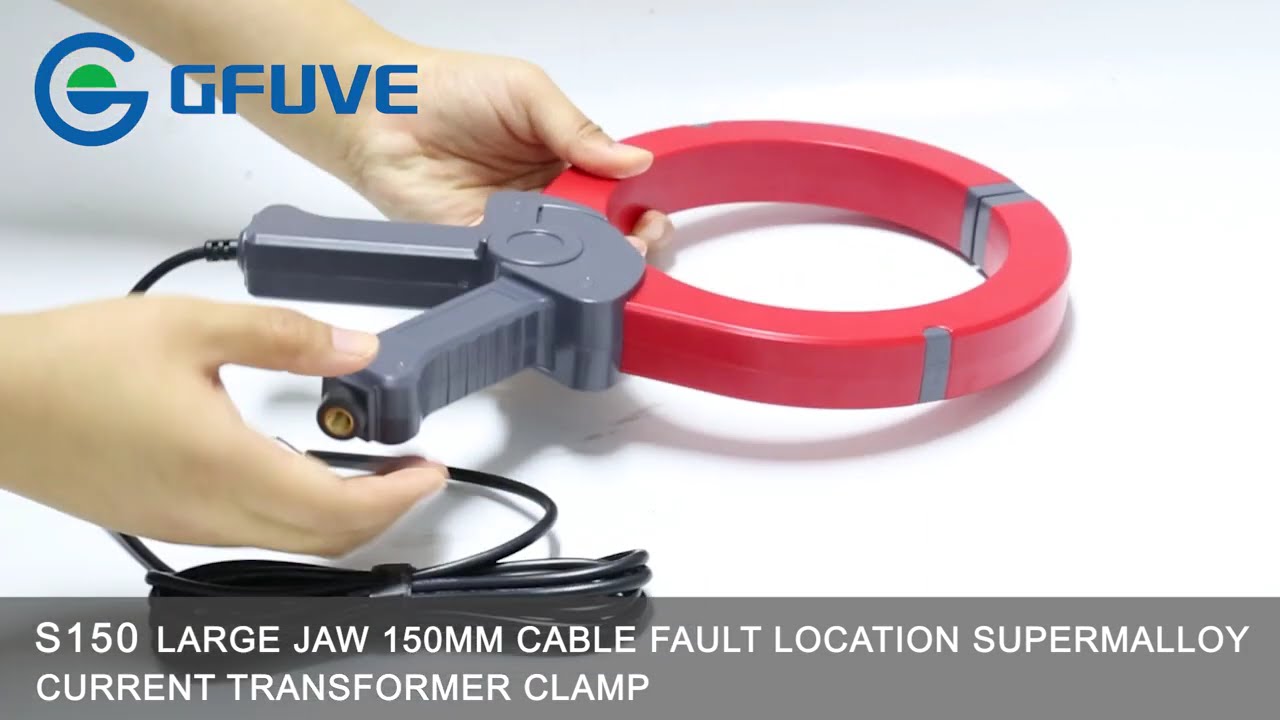

S150 LARGE JAW 150MM CABLE FAULT LOCATION SUPERMALLOY CURRENT TRANSFORMER CLAMP

Описание: The S150 ct clamp is a high performance AC Clamp on current transformer with excellent transformation and low phase shift. The high quality magnetic supermalloy core and uniform windings provide for accurate measurements up to 3000A AC/2000A AC/1000A AC/500A AC. The "ring type" jaw permits good magnetic conduction and cable positionings. Provide excellent RMS capabilities and reliable signal reproduction.
The S150 current transformer clamp is well suited for cable fault analysis and location and power quality applications where high accuracy and low phase shift along with wide frequency from 10Hz to 200kHz are important. Measurement range is 1mA to 3000A.
The S150 current transformer clamp is a general purpose 3000A AC Clamp current probe transformer designed for use with 4mm banana terminal & BNC, cable fault analysis and loggers instruments that have a current input. It has a 200:5 ... 1000:1 or 2000:1 ratio and output of 1mA/A or 1mV/A measured in the jaw. The S150 has an integral 2.5m or 5m lead terminated. The rounded jaw design on this ct clamp probe makes it well-suited for cable fault analysis applications where high precision and low phase shift and wide frequency.

FEATURES
■ UL, CE CNAS mark;
■ Frequency 10-200kHz;
■ Using supermalloy core;
■ Holding wire diameter: φ150mm;
■ Conforms to EN 61010, 600V CAT III;
■ Measurement range of 1mA to 3000A AC;
■ Low phase shift for power measurement;
■ Industrial design & beautiful appearance;
■ Improved ergonomic design & easy operation;
■ High precision 0.1% for current measurement;
■ Transformation ratio: 100:1...3000:1, 200:5...2000:5, 3000:5;
■ Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters;

APPLICATION
■ Power meter;
■ Power load monitoring;
■ Large industrial loads;
■ Power quality monitoring;
■ Power and harmonic meters;
■ Data logger/current recorder;
■ Power quality analyzer(PQA);
■ Measuring around cable bundles;
■ CT secondary current detection;
■ Cable fault analysis and location;
■ Energy meter calibration equipment;
■ Waveform analysis(oscilloscopes meter);
