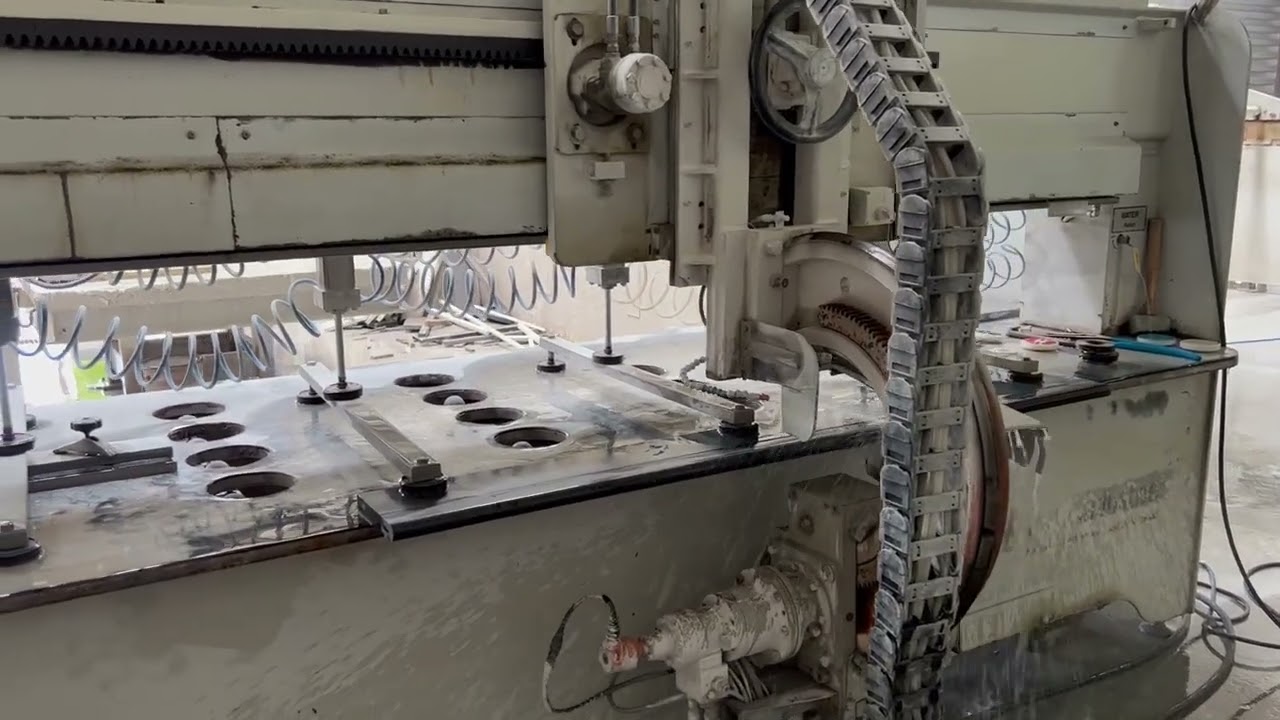

PARK INDUSTRIES PRO EDGE IV EDGE POLISHER SINGLE HEAD SN-231106

Описание: PARK INDUSTRIES PRO EDGE IV EDGE POLISHER SINGLE HEAD
Direct link to listing: https://www.exfactoryauctions.com/Auc...
(SN-231106)

Specifications:

12' L Single-Head Automatic Edge Shaper & Polisher
Shaping/polishing length from 1' to 12', profile shaping/polishing thickness from 3/8" to 4" (spindle adjustment required on stone over 2-1/2" thickness)
Edge Types: Variety of convex and flat edges from 10 mm (3/8") to 100 mm (4") thickness can be shaped and polished
Spindle configuration: Dual speed spindle of 2/2.5 HP @ 1,710 and 3,420 RPM; pneumatic head travel with position lock (with pressure gauge and adjustment); stroke length of 2"
Features: Center water feed; internal air purge system; tool adapter to accept 100 mm snail lock or 5/8 - 11 threaded connections; shape tool adapter
Spindle angle rotation: 0° - 189° Angle adjustment range on a precision machined, hardened alloy steel C-arm, powder-coated for corrosion resistance; cable harness for cables & hoses; hydraulic rack & pinion drive
Rise & Fall of Head: 3" Rise & fall travel; round rail precision guide system; manual positioning with pointer/scale indicator
Hydraulic cross-travel: 15 - 100 FPM Variable speed; Heavy Duty rack & pinion drive system; travel carried on (2) chrome hardened steel rails with slide bearings, automatically lubricated
Table and Clamping: 12' L x 4' W Precision machined tabletop work area with rubber matted surface; pneumatic pop-up rollers on full table to assist in positioning, loading, and unloading stone (2,500 Lbs total lifting cap.)
(5) Adjustable pneumatic holddowns with aluminum extrusion extensions; built-in storage racks for unused clamping bars; adjustable PARK bench to support long pieces
Table Construction: Heavy Duty structural steel/plate construction, stress relieved and precision machined.
Bridge Construction: Tubular steel bridge design, stress relieved & precision machined
Machine Control System: PLC Control of the transverse speed, spindle Amps (load), leading & trailing pass locations, number of passes, degrees of spindle angle setting
Tool pressure increases machine efficiency to maximize production output and tool performance; automatic "return to home" position when cycle is complete; digital display of spindle work angle positioning; proximity switches for adjustable travel length
Easy to use, full color high resolution touch-screen: Displays complete information to control machine and setup edge profiles
Program Library: Programmable, repeatable edge profiles allow different machine set up to be made quickly and easily
