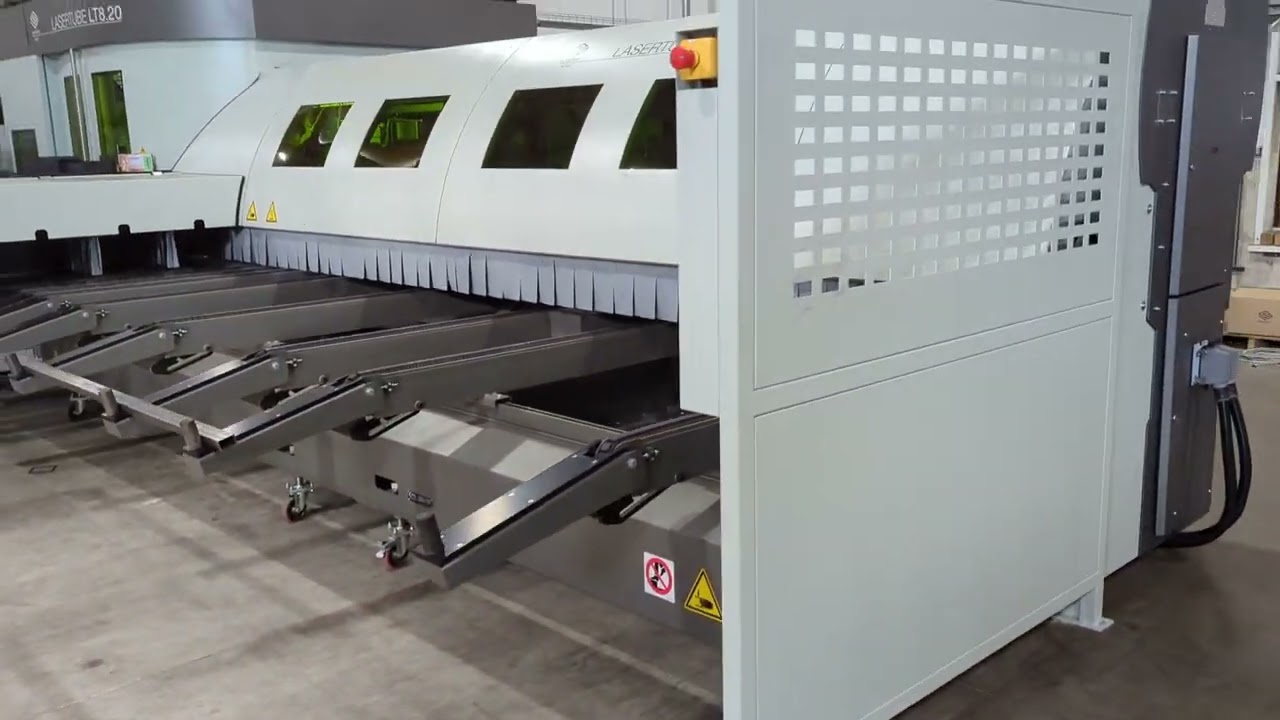

Arrival of the Lasertube System ADIGE LT8.20. 3D fiber laser

Описание: High productivity Lasertube System ADIGE LT8.20. 3D fiber laser

The Lasertube machine can automatically process tubes and open profiles with a laser beam.
Fully automatic bars loading process, cutting and unloading the processed parts, with the highest flexibility and productivity.

The Lasertube system can process the following profiles:
Lasertube System can process the following profiles:
1. ROUND shape: - from 12 to 220 mm - SQUARE shape, from 12 to 200 mm
2. RECTANGULAR and FLAT-OVAL shape inscribed in a circle of maximum 280 mm diameter with a minimum side of 20 mm and maximum side of 200 mm and maximum difference between sides of 152.4 mm.
3. HEA 100,120,140,160; HEB 100,120,140; IPE 80,100,120,140,160,180,200
4. Flats: from 40 x 5 to 200 x 12 mm
5. C, U profiles: from 30 x 20 to 200 x 150 mm, inscribed in a circle of maximum 280 mm diameter
6. L profiles: from 30 x 20 to 150 x 150 mm or 200 x 120 mm


We can manufacture parts with the following dimensions:
Maximum bar length up to 12.5 m
Maximum detail length 8500 mm
Maximum weight 40 kg/m.
Positioning accuracy tolerance Pa: +/- 0.1 mm

Material type:
1. Steel
2. Stainless steel
3. Titanium
