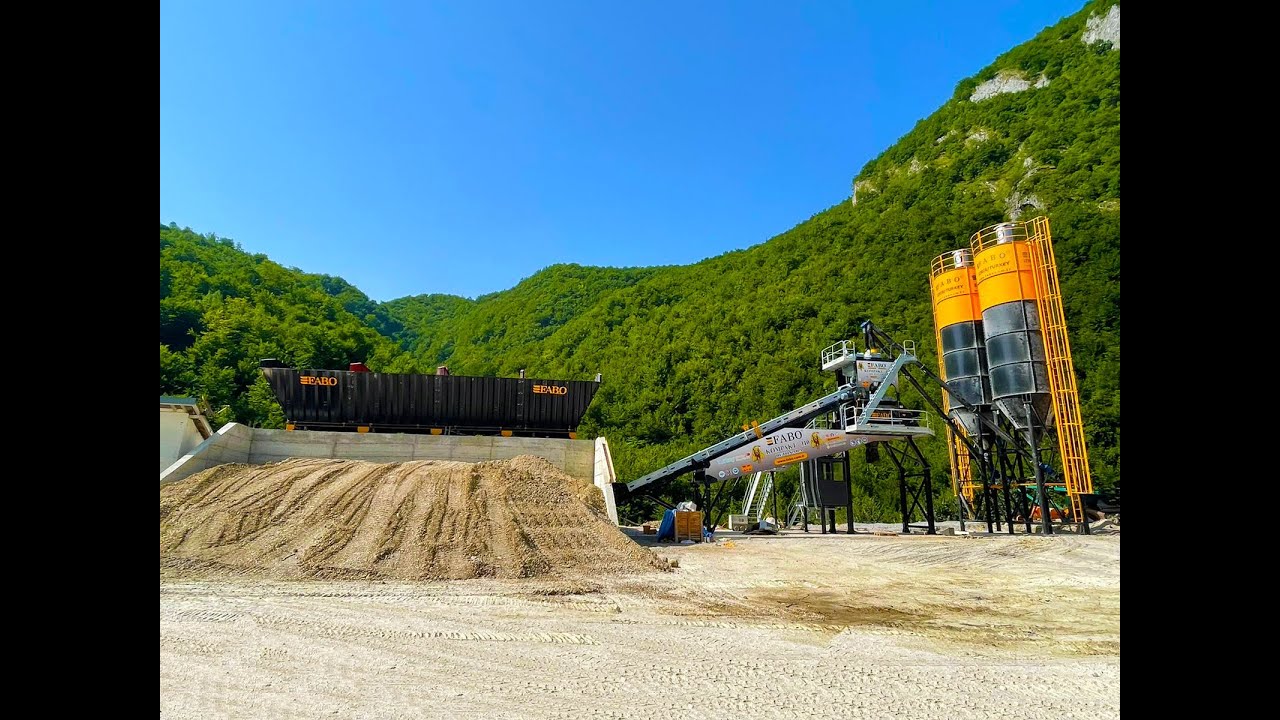

100-110 M3/H STATIONARY CONCRETE BATCHING PLANT | COMPACT-110 CONCRETE PLANT VIDEOS |

Описание: Details : https://fabo.com.tr/en/product/compac...

Fast Contact : +90 543 431 88 00

AGGREGATE BUNKER
Volume: 80 m3
No. of compartments: 4 x 20 m3
Sand compartment vibrator: 2 pcs, 0.37 kW
No of Discharging Gates: 8
It is made of 5-6 mm ST-37 A1 quality specially curved (bended) sheet for longer life.
Discharge is provided by pneumatic piston.

AGGREGATE WEIGHING HOPPER
Weighing Capacity: 5000 kg
It is made of 5-6 mm ST-37 A1 quality specially curved (bended) sheet for longer life.
Vibrators: 2 pcs, 0.37 kW
Load Cell: 4×5000 kg

TWIN-SHAFT MIXER:
2.3 m3 Twin Shaft Mixer.
The drive group is connected to a 2×37 kW electric motor via a planetary reducer coupling.
Motor and Reducer: Heavy Duty Type Mixing Arms in 2 Pieces Spheroid Graphite Cast Irons
Hydraulic Power Pack with Manual Pump for Emergency Opening of Discharge Gate
Moving parts of gearboxes and bearings are permanently lubricated with grease
Two top covers (500 mm) and two wide hinged high doors.
Hydraulically operated Standard Discharge Gate with three limit switches (Open, Half Open, Closed).
Closing is driven by a Pressure Gauge on the Hydraulic Power Pack
Modular examination platform with access ladder and handrails.
Mix motors with insulation materials Class H, Protection Class: IP55.
Hydraulic System Engine: 2,2 kW

AGGREGATE WEIGHING CONVEYOR
Conveyor Sizes: 1000 mm
Motor: 15 kW Gamak or equivalent brand
Brake System: DERELI brand, up to 5000 kg weight
Gearbox: YILMAZ brand or equivalent brand
Steel rope: 12 mm
Material chassis: bended metal sheets – 6 mm, A1 quality
Drive Drums : Ø320 mm, 5 mm thickness.
Bearings: High quality strong bearings

CEMENT SILO AND ITS ACCESSORIES
Capacity: OPTIONAL
Type: Bolted Cement Silo
Filling Tube: 4″
Top Filter: 24 m2
Metal Sheet: 4-6mm A1 quality
Sailor – Maintenance Cover – Platform Guardrail
Silo safety valve and emergency release valve 89x300mm
300 Pneumatic valve and manual lever
Silo safety valve
Min and max level indicators
Cement plasticizer jet

AUTOMATION SYSTEM:
The automation system includes:

Power panel and switches

Collective control terminals

Automatic Control Unit

Software

Control Panel

Remote access
